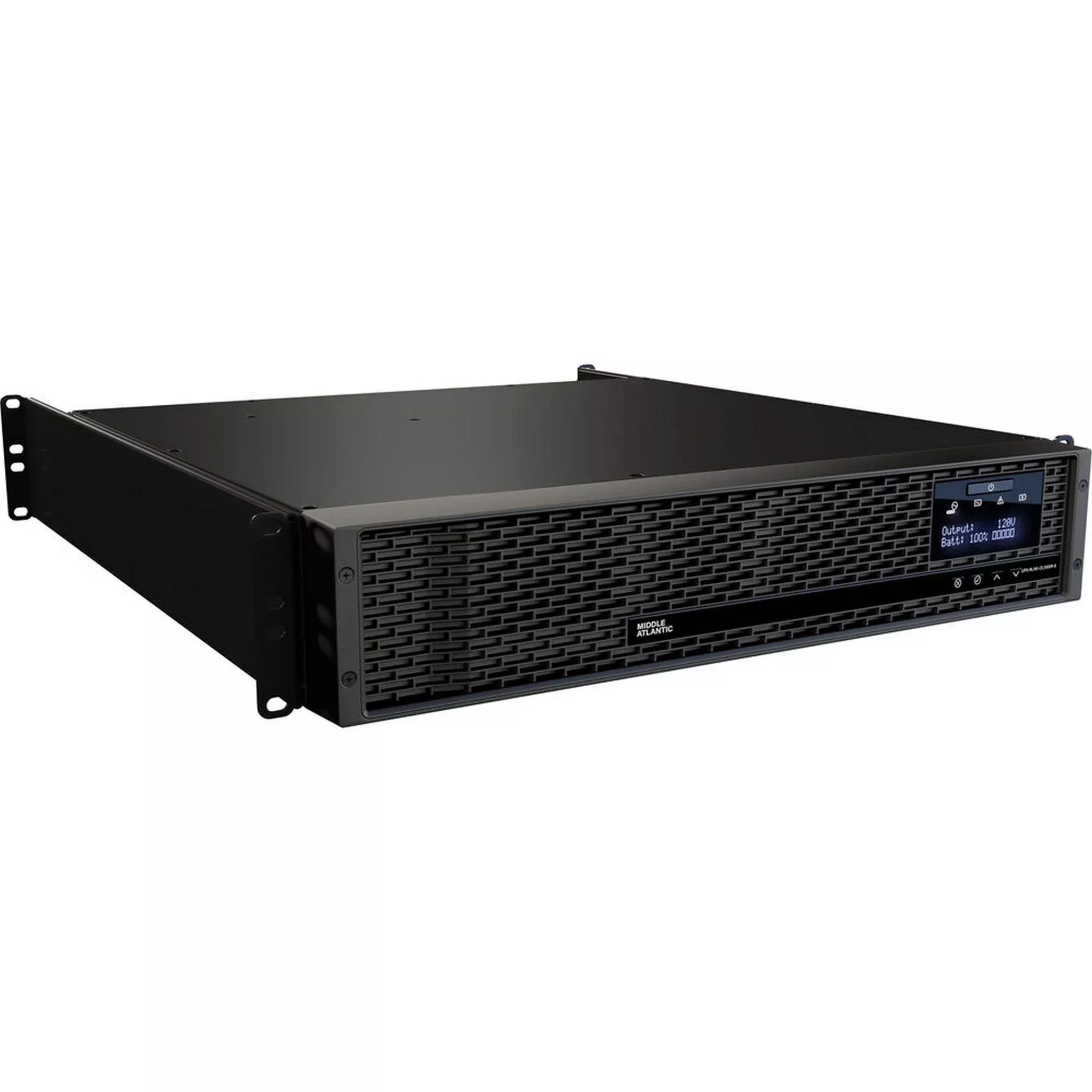

Middle Atlantic NEXSYS 1000VA Rack-Mount Online UPS with RackLink Outlet Control
The Middle Atlantic NEXSYS UPX-RLNK-OL1000R-8 is a double-conversion online UPS built specifically for professional AV systems that demand continuous, clean power. With pure sine wave output and zero transfer time, it delivers stable protection for sensitive equipment and keeps critical racks running without interruption.
Designed for real-world installs, it ships ready to deploy with the battery already connected and rack ears pre-installed with 4-post mounting brackets. RackLink™ Cloud support and an included network card enable remote monitoring and management, while eight individually controlled outlets provide device-level power control to simplify service, sequencing, and troubleshooting.
Ideal for AV racks in corporate, education, hospitality, and managed-service environments, this NEXSYS UPS combines premium components, intelligent power management, and hot-swappable front-access battery service to reduce downtime and streamline long-term maintenance.
Key Features
- Double-conversion online UPS with zero transfer time for uninterrupted protection
- Pure sine wave output for sensitive AV and IT equipment
- 8 NEMA 5-15R outlets with individual outlet control
- RackLink™ Cloud enabled for centralized remote monitoring and management
- Includes network card for remote connectivity and system visibility
- Hot-swappable, user-replaceable battery with front access for easy service
- Factory-prepped for fast installs with connected battery and pre-installed rack hardware
- Control Concepts supported for AV control ecosystem integration
Technical Specifications
Product Type
Double Conversion Online UPS
Load Capacity
1000 VA / 1000 W
Input Plug Type
NEMA 5-15P
Output Receptacles
8 × NEMA 5-15R
Cord Length
6 ft
Output Voltage
110 V AC / 120 V AC / 127 V AC
Waveform
Pure Sine Wave
Network Management
Network Card (RackLink Compatible)
Battery
Hot Swappable / Replaceable
Operating Temperature Range
32°F to 104°F (0°C to 40°C)
Color
Black
What’s in the Box
(1) Middle Atlantic NEXSYS 1000VA Rack-Mountable UPS
(1) Network Card
(1) 6′ (1.8m) SignalSAFE IEC Power Cord
(1) Pre-installed rack ears with 4-post mounting brackets
