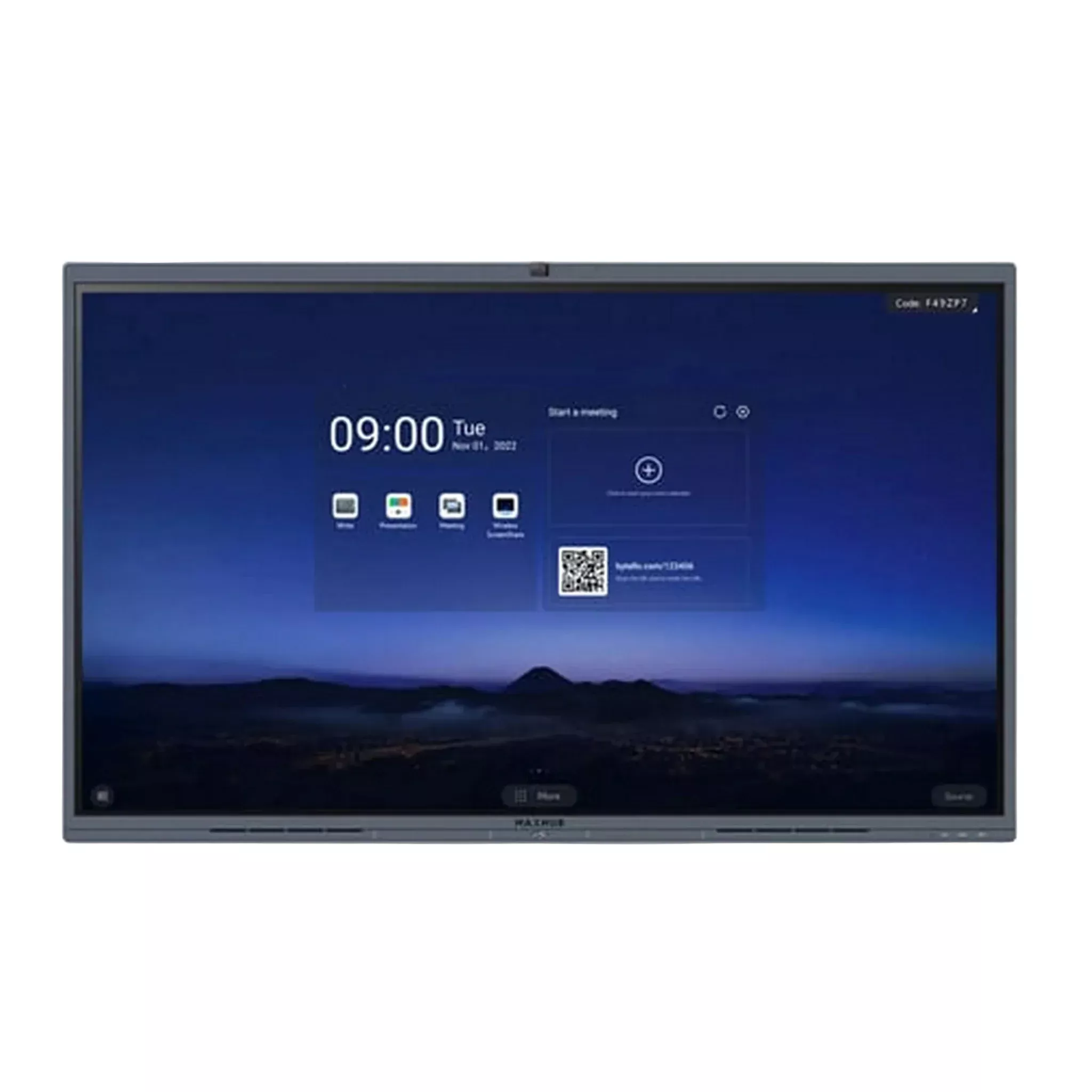

MAXHUB V6 Classic Series Interactive Flat Panel C8630 86-Inch 4K Touch Display
The MAXHUB V6 Classic Series C8630 is an 86-inch interactive flat panel designed for professional meeting rooms, collaboration spaces, and presentation environments. It combines a high-resolution 4K display with integrated collaboration tools to support clear communication and efficient teamwork.
This interactive display supports wireless screen sharing, touch-based whiteboarding, and video conferencing with a built-in camera, microphone array, and speakers. With broad operating system compatibility and professional connectivity options, the C8630 is suited for corporate meeting rooms, boardrooms, and hybrid collaboration workflows.
Key Features
- 86-inch 4K UHD interactive flat panel with 16:9 aspect ratio
- 20-point IR touch system with high accuracy and fast response
- Wireless screen sharing and smart whiteboard functionality
- Built-in 48MP camera with auto frame and speaker tracking
- Integrated far-field microphone array with up to 8 m pickup range
- Built-in 2.1 channel speaker system for clear audio playback
- OPS slot support for optional PC module integration
Technical Specifications
Model
C8630
Diagonal Size
86 inch
Backlight
Direct-lit LED
Panel Technology
VA
Resolution
3840 x 2160
Refresh Rate
60 Hz
Response Time
8 ms
Brightness (typ)
350 cd/m²
Contrast Ratio
4000:1
Viewing Angle
178° / 178°
Color Gamut (typ)
90% NTSC
Product Dimensions (W x H x D)
77.05 x 45.67 x 3.94 inch
Shipping Dimensions (W x H x D)
83.07 x 50.51 x 6.86 inch
Net Weight
131.73 lbs
Gross Weight
169.76 lbs
Power Supply
AC 100-240 V, 50/60 Hz
Max Power Consumption
400 W
Standby Power
≤0.5 W
Touch Technology
IR Touch
Max Touch Points
20
Accuracy
±1 mm
Object Recognition Range
≥2 mm
Built-in Camera
Single camera, 48 MP
Speaker Output Power
2.1 channel, 2 x 10 W + 20 W
Microphone Array
8x far-field microphones, up to 8 m range
Operating Temperature
0°C to 40°C
Operating Humidity
10% to 90%
What’s in the Box
MAXHUB V6 Classic Series C8630 Interactive Flat Panel
Power Cord
Wi-Fi Adapter
Passive Stylus x2
Wall Mount
USB Type-C Cable (1.8 m)
