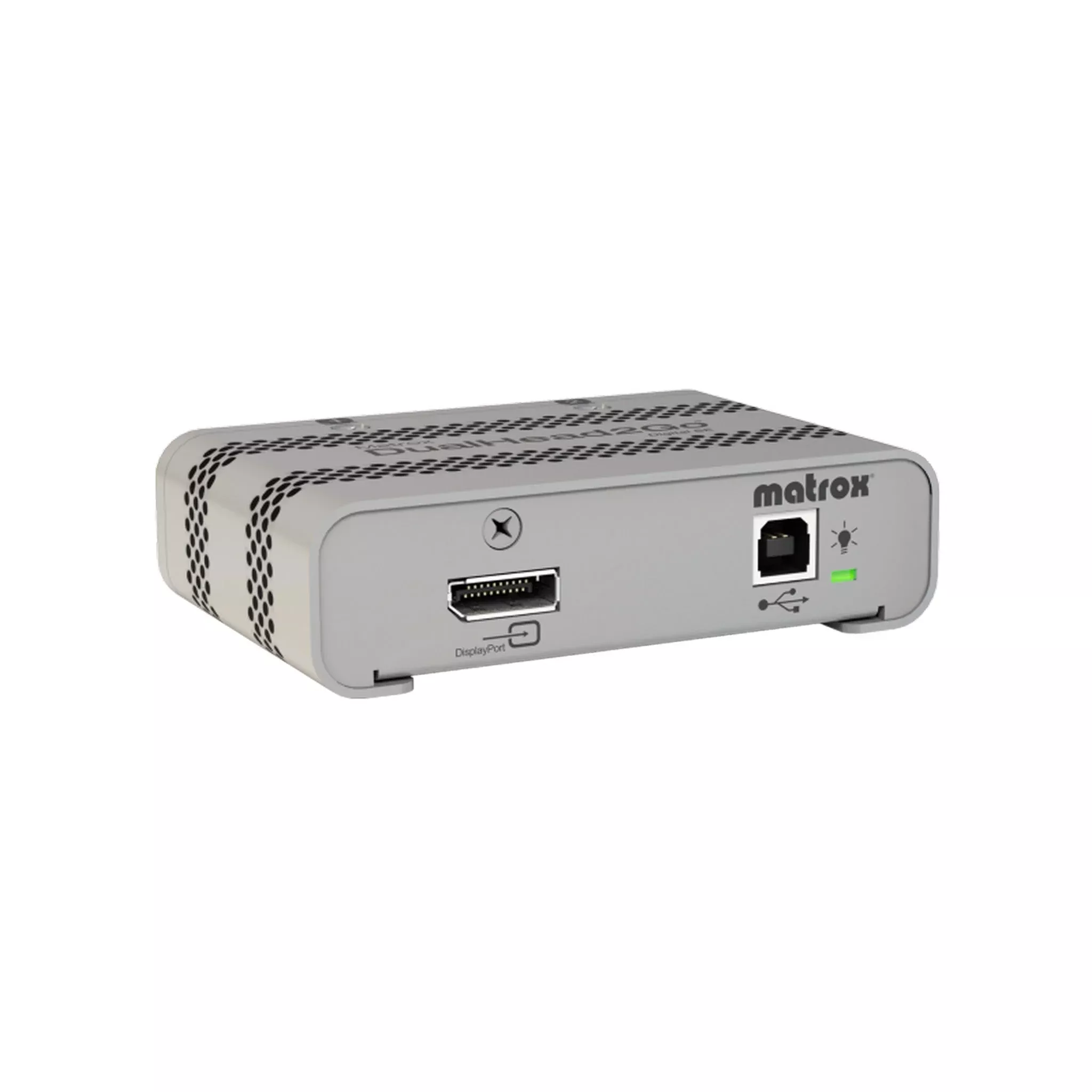

Matrox D2G-DP2D-MIF DualHead2Go Digital ME Multi-Display Module
The Matrox DualHead2Go Digital Mac Edition (ME) adds up totwo DVI monitors to your laptop or desktop computer by connecting to the MiniDisplayPort/ Thunderbolt video output of your system. It connects to the videooutput of your system and uses the system’s existing GPU to providehigh-quality, uncompressed graphics and video across all monitors. Ideal forbusiness users and content creators looking to increase their productivity witha dual display setup, this little silver box lets you run differentapplications on each monitor or view one application across two monitors.
Key Features
- Let’s you connect up to two monitors to the single MiniDisplayPort video output or Thunderbolt port of your system
- Creates a stretched desktop of 3840×1200 (2x1920x1200)1across two displays
- Uses your system’s existing GPU to deliver a solid platformfor office, 3D design, and multimedia applications
- Open an application on each display or span one across thetwo
- HDCP compliance for protected content playback
- Works with displays and projectors
- Quick and easy to install-there’s no need to open thecomputer case or insert components
- Run in clone mode and show the same content on all displays
- Includes Matrox PowerDesk software to easily manage yourdesktop configuration
- External device that won’t void your system warranty
- 2-year warranty
Technical Specifications
Part Number
D2G-DP2D-MIF
Connectivity
Video Input
Connectors
1x DisplayPort
Video Output
Connectors
2 x DVI-D (digital only outputs)
Multi-Unit Support
Yes (available under Windows only)
Performance
Video Output Resolutions
DVI
3840×1200 (2x 1920×1200) *
* Maximum resolution is system and monitor type dependent
Video and Audio Processing
Non-Rectangular/Artistic Video Walls
No
Clone Mode
Yes
HDCP Support
Yes
Physical
Product Dimensions
3.8 (L) x 2.5 (W) x 1.1 (H) inches
Unit Weight
0.264 lbs / 120 g
Power Supply Unit
USB for power
Hardware & Software
Hardware Included
One USB cable
One Mini DisplayPort-to DisplayPort input cable
Software CD
Accessories (sold separately)
Power Supply Kit (Part GXM-PSKIT-IF)
Software
Matrox PowerDesk (free download)
General
System Requirements
Single Mini DisplayPort / Thunderbolt video output on acompatible system
Display Driver supporting 2048×768 or higher resolution
Powered USB connector
Supported Operating Systems (software)
macOS 10.15 Catalina
macOS 10.14 Mojave
macOS 10.13 High Sierra
macOS 10.12 Sierra
OS X 10.11 El Capitan
OS X 10.10 Yosemite
OS X 10.9 Mavericks
OS X 10.8 Mountain Lion
OS X 10.7 Lion
OS X 10.6 Snow Leopard
