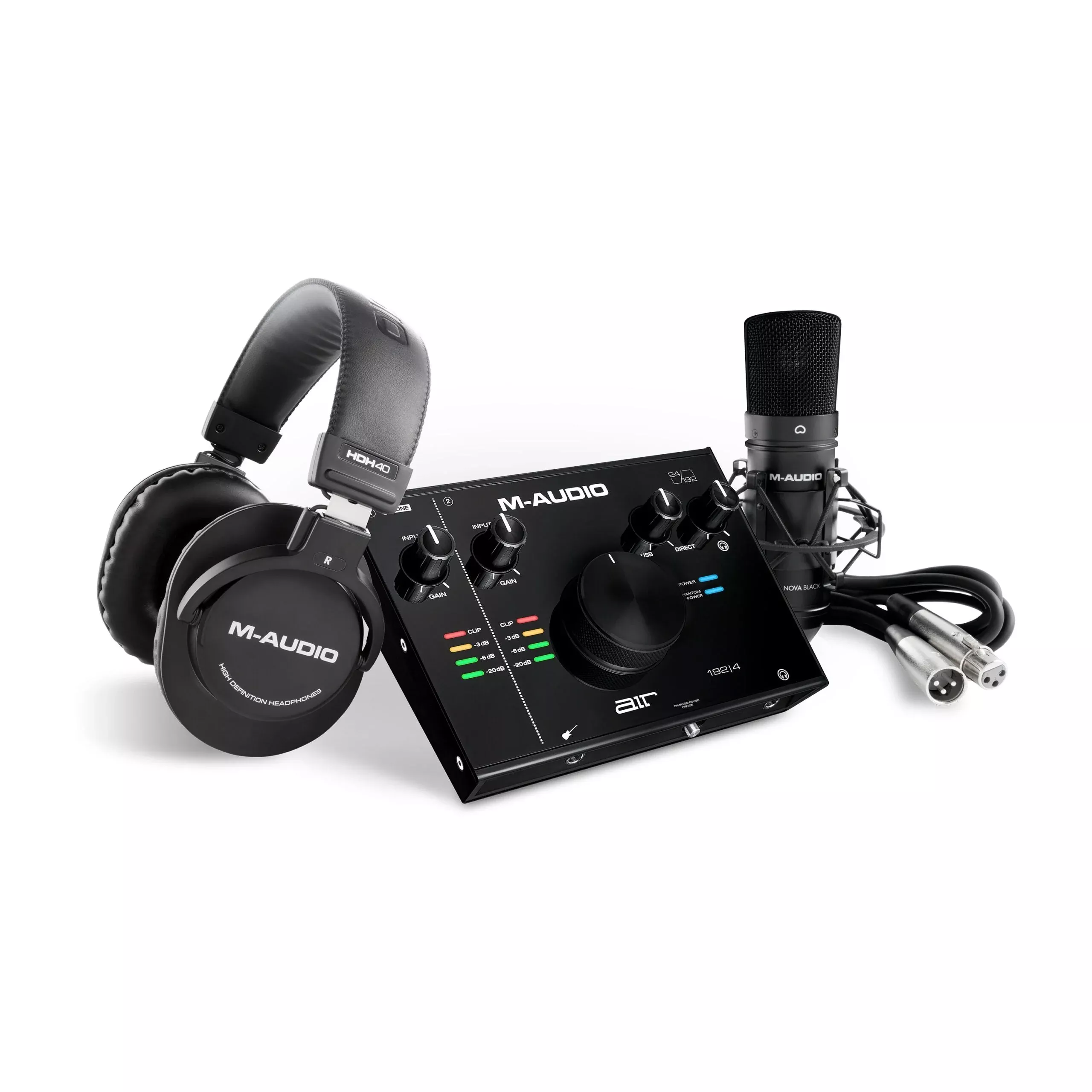

M-Audio AIR 192|4 Vocal Studio Pro 2 x 2 24/192 USB Audio Interface Package
Enter the world of studio-basedrecording with the AIR 192|4 Vocal Studio Pro-the ultimate all-in-one solutionfor computer recording projects. Combining the critically acclaimed AIR 192|4interface, HDH40 headphones, a Nova Black condenser microphone, XLR cable andthe premium AIR Series Software Suite, laying down vocal tracks, recordingelectric and acoustic instruments and adding voice-overs to multimedia projectshas never been easier. With the AIR 192|4 Vocal Studio Pro, the combination ofhigh-performance hardware and easy-to-use software results in pro-grade audiocapture for every recording scenario.
We’ve included software tomatch your style!
The AIR 192|4 Vocal Studio Procomes complete with a software package that has everything to get you startedmaking professional recordings right out of the box. With a powerful DAW tosuit your production needs, AIR 192|4 Vocal Studio Pro includes Ableton LiveLite and MPC Beats.
We’ve also added an entire EffectsPlugin, Virtual Instruments and Loop package to cater to all your productionneeds. Whether you need a guitar tone, reverb, or delay we’ve got your effectsneeds covered with Revalver, 80 effect plugins and AIR’s Creative FXCollection. With the included AIR Virtual Instrument plugins, you’ll have avirtual synth, strings, percussion, organ and piano plugins to addworld-class-sounding instruments to your songs with ease.
More Than Just an Interface
This is the creative center ofyour recording setup: The simple-to-use, style-infused AIR 192|4 audiointerface is the perfect tool to record and produce natural-sounding24-bit/192kHz studio-quality recordings. Combining one XLR+1/4” balanced comboinput and an all-new dedicated 1/4” instrument input, the AIR 192|4 enables youto record two channels simultaneously.
Crystal Preamps, Pristine A/DConverters and Premium Components
Fusing an elegant pro-grade metalchassis, USB & USC-C connection cables, our exclusive Crystal low-noisepre-amps and pristine A/D converters that deliver the highest audio performancein their class, the AIR 192|4 provides all the tools you need to capture thatinitial idea and transform it into a finished masterpiece with ease. Take yourmusic to the next level and start recording now!
Professional Recording-Done!
Studio-grade recording demands theright tools for the job. M-Audio’s Nova Black large-diaphragm condensermicrophone is perfect for podcasting applications or capturing high-qualityaudio from vocalists, instruments, percussion and more.
At the heart of the Nova Blackmicrophone is an 18mm pure aluminum condenser capsule with a directionalcardioid polar pattern. This delivers wide range frequency response (20-20kHz,resulting in a microphone that captures even the most subtle nuances.
Thanks to an included windscreen,a purpose-designed shock-mount for mounting to a traditional mic stand and anXLR cable, everything you need to get connected and start recording isincluded.
Hear Every Detail
Professional recording demandsuncompromised accuracy when it comes to monitoring. M-Audio’s HDH40 headphonescombine premium transducer elements with a durable, rugged design to deliversuperb sound reproduction and the outstanding acoustic isolation required inprofessional recording and monitoring environments. With the HDH40, you canconcentrate on what’s important-your production!
Key Features
- 24-bit/192kHz resolution forprofessional recording and monitoring
- Hi-Speed USB circuitry gives youthe fastest connection, with a class-leading round trip latency of only 2.59ms*
- Transparent Crystal preamps andultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in theperfect level
- (1) XLR+1/4” TRS combo input withdedicated signal circuit and (1) 1/4” instrument input with dedicated signalcircuit for the most accurate sound available
- Stereo 1/4” outs; 1/4” headphoneout with independent level control
- Rugged metal chassis; largecentral control for easy volume adjustment
- USB/Direct knob for balancingbetween the input signal and the computer signal
- NOVA Black condenser microphone
- HDH40 monitoring headphones
*Round trip latency is dependenton buffer settings, and computer hardware
Technical Specifications
Minimum System Requirements
macOS: 10.8 Class Compliant
PC: Windows 7, Windows Driver
Standard USB 2.0 or USB-C Port
NOVA Black Microphone
TYPE
Back Electret condenser microphone
ELEMENT
18 mm pure aluminum diaphragmcapsule
POLAR PATTERN
Cardioid
HDH40 Headphones
FREQUENCY RESPONSE
20 Hz – 20 kHz
SENSITIVITY
-38 dB (0 dB = 1 V/Pa @ 1 kHz)
RATED IMPEDANCE
200OHM
MAXIMUM SPL
136 dB
PHANTOM POWER REQUIRED
+48 V
S/N RATIO
77 dB
CURRENT CONSUMPTION
3 mA
HDH40 Headphones
ACOUSTIC DESIGN
Dynamic, Closed
DRIVER
40 mm, neodymium
FREQUENCY RESPONSE
15 Hz – 22 kHz
SENSITIVITY
95 dB ±3 dB
RATED IMPEDANCE
32OHM
EARPAD
Leatherette
CABLE LENGTH
9.8 ft. / 3 m
Mic Input 1 (balanced XLR)
FREQUENCY RESPONSE
20 Hz – 20 kHz (+0.1 dB)
DYNAMIC RANGE
104 dB (A-weighted)
SIGNAL-TO-NOISE RATIO
104 dB (+1.0 dBu, A-weighted)
THD+N
0.003%
PREAMP EIN
-128 dBu (max gain, 150 OHMsource, A-weighted)
MAX INPUT LEVEL
+1.5 dBu
GAIN RANGE
55 dB
Line Input 1 (balanced1/4″ TRS)
FREQUENCY RESPONSE
20 Hz – 20 kHz (+0.05 dB)
SIGNAL-TO-NOISE RATIO
101 dB (1 kHz, +4 dBu, A-weighted)
THD+N
0.003%
MAX INPUT LEVEL
16 dBu
GAIN RANGE
55 dB
Inst Input 2 (unbalanced1/4″ TS)
FREQUENCY RESPONSE
20 Hz – 20 kHz (+0.05 dB)
DYNAMIC RANGE
100 dB (A-weighted)
SIGNAL-TO-NOISE RATIO
102 dB (+ 4 dBu, A-weighted)
THD+N
0.004%
MAX INPUT LEVEL
6 dBu
INPUT IMPEDANCE
1 MOHM
GAIN RANGE
24 dB
Main Outputs, L and R(impedance-balanced 1/4″ TRS)
FREQUENCY RESPONSE
20 Hz – 20 kHz (+0.06 dB)
DYNAMIC RANGE / SIGNAL-TO-NOISERATIO
102 dB (A-weighted)
THD+N
0.005%
MAX OUTPUT LEVEL
+7 dBu (1 kHz, -1 dBFS)
Headphone Output(impedance-balanced 1/4” TRS)
THD+N
0.005%
OUTPUT IMPEDANCE
10 OHM
General
POWER
USB-bus-powered
DIMENSIONS (WIDTH X DEPTH XHEIGHT)
8.0” x 6.0” x 2.76” (20.42 cm x15.24 cm x 7.0 cm)
WEIGHT
2.0 lbs. 0.9 kg
What’s In The Box
AIR 192|4
USB-C-to-USB-C Cable
USB-C-to-USB-A Cable
NOVA Black Microphone
Microphone Carrying Pouch
XLR Microphone Cable
Microphone Shock Mount
Microphone Windscreen
HDH40 Headphones
Software Download Cards
User Guide
Safety and Warranty Manual
