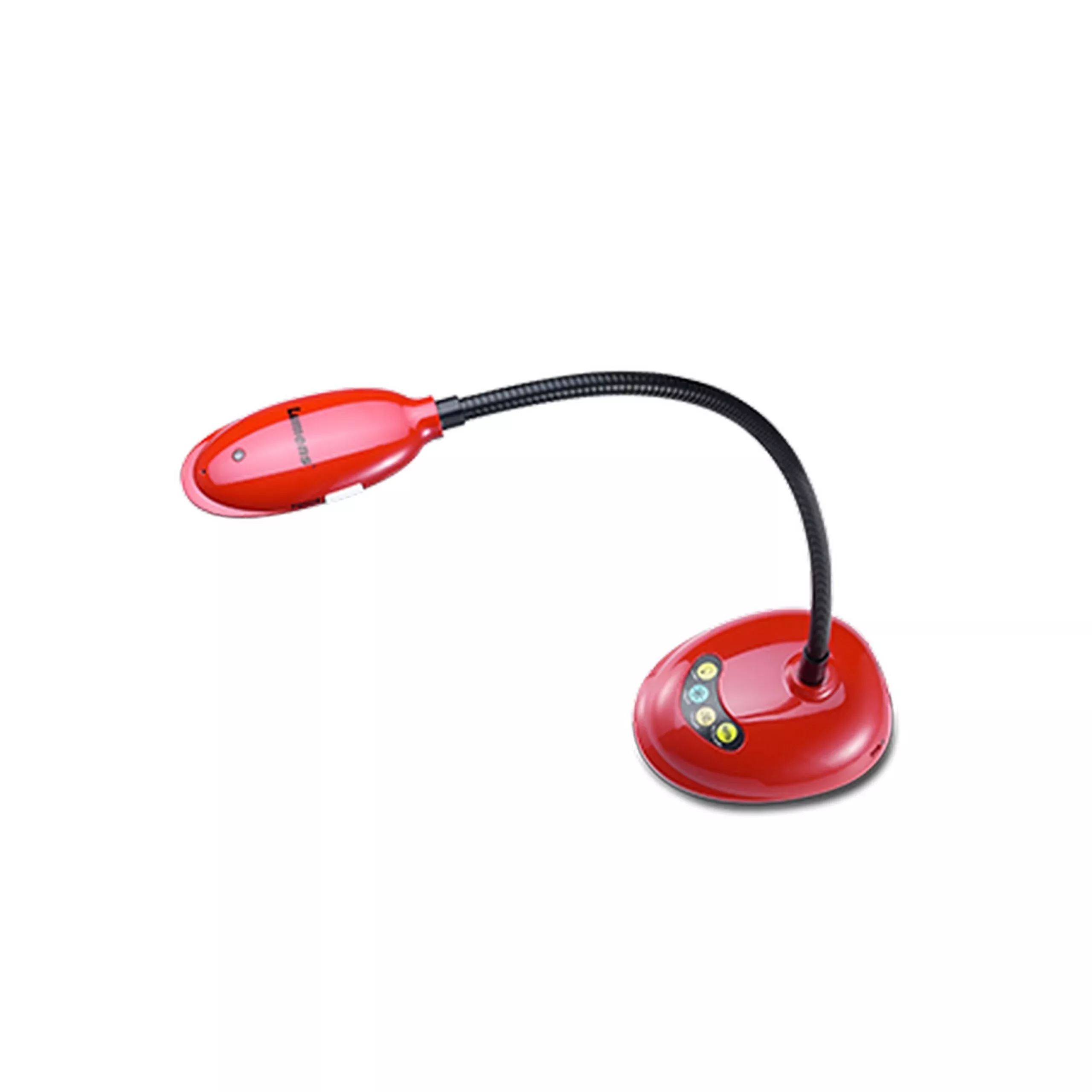

Lumens DC132U HD/2K USB Document Camera
2-in-1 Camera Solution
Twist the gooseneck to any angle to view a document, facethe presenter or angle towards the class for a live video conference.
Excellent Image Quality
DC132U produces professional-quality images with vividcolors. It outputs 1080p or even 2K video with image and video recording up-to30 frames per second. The DC132U is ideal for use in education and training.
One-touch Optimization (Auto-Tune)
At the touch of a button, the camera quickly achievesaccurate focus, color balance and image exposure.
Imaging Flexibility
The camera can capture documents and objects larger than A3.Adjust the position of the camera for close-up or wide-angle imaging. Zoom intothe image using the provided Ladibug software.
Macro Close-Up
Take extreme close-ups (4cm minimum distance) and capture detailedimages of small objects such as insects.
5 Year Warranty
Lumens offers a 5-year warranty with all its products asstandard.
Key Features
- 1080 HD / 2048 QXGA resolution
- USB plug & play
- 16x total zoom (via software)
- Shooting area (18.8” x 14.1”) larger than A3
- Macro shooting from 4cm
- 5 Year Warranty
Technical Specifications
Sensor
1/3” 3M CMOS
Total Pixels
3.3MP
Total Zoom
16x
Digital Zoom
16x (via Software)
Mechanical Zoom
8x
Output Resolution
2048×1536, 1600×1200,1920×1080,
1280×720, 1024×768, 800×600,
640×480
Frame Rate
1080p / 720p 30fps
Close-up
4 cm
Shooting Area Max.
480×360 mm
(18.8” x 14.1”)
Sharpness
MTF 1100 Line
Focus Mode
Auto / Manual
Image Rotation
0 Degrees / 180 Degrees / Flip / Mirror
Lamp
LED Lamp on Camera Head
Arm
Joint-Free Gooseneck
Power Supplied
USB Bus Power
Output
USB 2.0
Control
USB
USB Image Transmission
USB 2.0 (480 Mbps)
Driver
UVC / UAC
USB Video Format
MJPEG
Built-in Microphone
Yes
Auto Tune
Yes, One Button for Optimization Image
Video / Audio Recording
Yes (via Software)
Image Mode
Photo / Text
Freeze
Yes
Mask / Spotlight
Yes (via Software)
Image Capture
Single or Continuous Capturing (Via Software)
Ladibug Software
Support Windows 11, 10, 7
Mac OS X, Chrome OS
Anti-Theft
Kensington Anti-Theft Lock Device
VESA Mount
Yes, 75mm x 75mm
Included Accessories
USB 2.0 cable
Power Consumption
2.25W (Max.)
Dimensions: (WxHxD)
Folded: 106 x 280 x 136 mm (4.2” x 11” x 5.4”)
Open: 106 x 380 x 350 mm (4.2” x 15” x 13.8”)
Weight
2.65 lbs (1.2 Kg)
