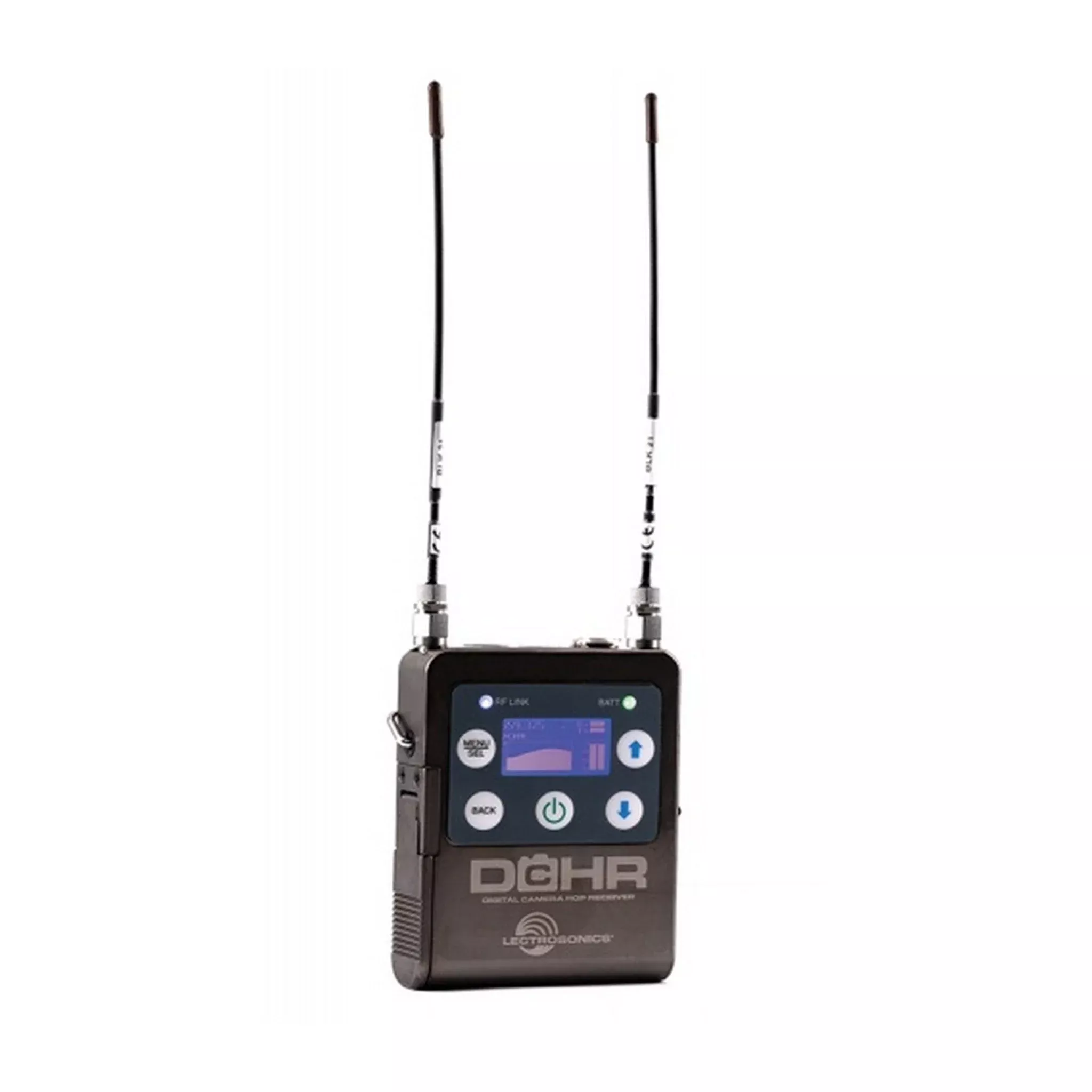

Lectrosonics DCHR Digital Stereo Portable Receiver
The DCHR portable digital stereoreceiver is designed for use in film and TV production as both a wirelessstereo audio link from a bag or cart system to cameras using a DCHT or M2Ttransmitter, or as a stand-alone miniature receiver for use with D Squaredseries mono transmitters. The DCHR provides two channels of mic or line levelanalog signals or an AES3 digital signal via a locking TA5M connector. Thedigital architecture of the DCHR is a 4th-generation design with speciallydeveloped, high-efficiency circuitry for extended operating time on two AAbatteries.
The DCHR can tune across theavailable UHF TV band from 470 to 614 MHz (470-608 MHz when NA Locale isselected) in 100 kHz or 25 kHz steps, offering more than 6000 frequencies. Thedigital architecture allows for AES256-CTR encryption for applications wherecontent security is a concern, and provides four different encryption keypolicies for a variety of applications. The DCHR can be camera mounted usingthe optional LRSHOE accessory.
Key Features
- Tunes across 144 MHz from 470-614 MHz (covers A1and B1 ranges)
- Compatible with DBSM, DBu, DHu, DPR, DCHT andM2T Transmitters
- Selectable AES3 or analog mic/line level outputs
- 256-bit encryption – AES 256-CTR
- USB port for firmware updates
- Two AA battery power
- Solid machined aluminum housing
- Optional powering from external DC withLTBATELIM
- Extremely fast RF scanning and setup via IR
Technical Specifications
Operating temperature range
-20 to 50°C; -5 to 122°F
Modulation Type
8PSK with Forward Error Correction
Frequency Response
D2 mode 25 Hz – 20 kHz, +0-3dB
Stereo modes 20 Hz – 12 kHz,+0-3dB
THD+N 0.05% (1kHz @ -10 dBFS)
Dynamic Range
>95 dB weighted
Adjacent Channel Isolation
>85dB
Diversity Type
Switched antenna, during packetheaders
Analog
2 balanced outputs
AES3
2 channels, 48 kHz sample rate
Headphone Monitor
3.5 mm TRS jack
Level (line level analog)
-50 to +5dBu
Latency
D2 mode 1.4 ms
Stereo modes 1.6 ms
Power requirements
2 x AA batteries (3.0V)
Battery life
8 hours; (2) Lithium AA
Power consumption
1 W
Dimensions
Height 3.34 in. / 85 mm. (measuredto top of SMA connector)
Width 2.44 in. / 62 mm. (withoutwire belt clip)
Depth .75 in. / 19 mm. (withoutwire belt clip)
Weight
9.14 ounces / 259 grams (withbatteries)
Included Accessories
26895 Wire Belt Clip
2x AA Batteries
2x AMJ-19 SMA-mount antennas
2x AMJ-22 SMA-mount antennas
