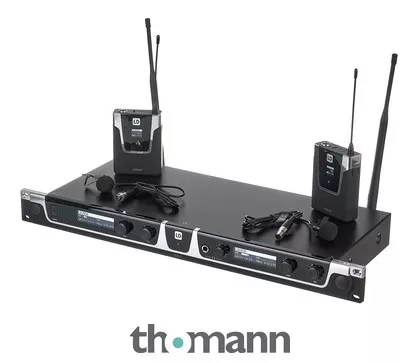

Wireless Microphone System
- With 2x bodypack and 2x lavalier microphone
- Total weight: 5.259 kg
- Includes 2x AA batteries, fastening clip, foam windscreen, 2x antenna, audio cable and power adapter
Features of the U506 BP transmitter:
- Radio frequency range: 655 – 679 MHz
- 96 Channels (8 groups with 12 channels each)
- 3-Pin mini XLR inputs
- Frequency response: 30 – 16,000 Hz
- OLED display
- Up to 10 hours of operation
- Transmitter operation with 2x AA batteries
- Dimensions (W x H x D): 65 x 86 x 23 mm
- Weight: 0.09 kg
Features of the U506 R receiver:
- 2 Antenna inputs
- BNC antenna connection
- Audio output per channel + sum output: balanced XLR, unbalanced 6.3 mm jack
- Controls: digital encoder, volume
- Dimensions (W x H x D): 212 x 44 x 159 mm
- Weight: 0.85 kg
Features of the LDWS100ML Lavalier Microphone:
- Characteristic: Cardioid
- Frequency response 20 – 20,000 Hz
- Impedance: 680 ohms
- Phantom power 5 V
- Microphone connector: 3-pin mini XLR female
- Weight: 0.026 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2020
- Item number508565
- Sales Unit1 piece(s)
- Capsule Type Condenser
- Microphone Colour Black
- Receiver Type stationary
- Frequency 655 MHz – 679 MHz
- Transmission system Analog
- Channels Lapel Microphone 2
- Dante No
- Polar Patterncardioid
- DiversityYes
- Mic Model254705
- Receiver Width in mm212 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm159 mm
- Receiver Weight in kg0,85 kg
- Transmitting Power in mW30 mW
- Selectable Frequencies96
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- OutputXLR
- Charging SystemNo
- RackkitOptional
