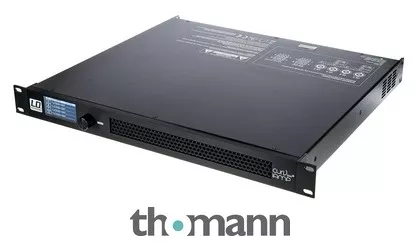

4-Channel Class-D Power Amplifier
- Especially suitable for CURV 500 installations
- 4 x 240 W at 4 ohms
- 4 x 120 W at 8 ohms
- 4 x 60 W at 16 ohms
- Frequency range: 10 – 22,000 Hz
- Each channel can control up to six CURV-500 satellites or one CURV500ISUB subwoofer
- OLED display
- Protection circuits: DC, short circuit, over-current, soft start, thermal overload
- Inputs: 4 x Line, terminal block, XLR
- 4 Speaker outputs
- Dimensions (W x H x D): 482 x 44 x 420 mm
- Weight 6.8 kg
- Format: 19″ / 1 U
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2017
- Item number419352
- Sales Unit1 piece(s)
- Power (4 Ohms) per Channel 120 W
- Channels 4
- Rack Units 1 U
- Amp Class Class D
- 2 Ohm stable No
- DSP/Crossover Yes
- Convection cooling No
- Width482 mm
- Depth in mm420 mm
- Height44 mm
- Weight6,8 kg
- Bridged ModeYes
- Temperature controlled fanYes
- Input XLRYes
- Link Out0
- Output Speaker TwistYes
- Output Phönix clampsYes
