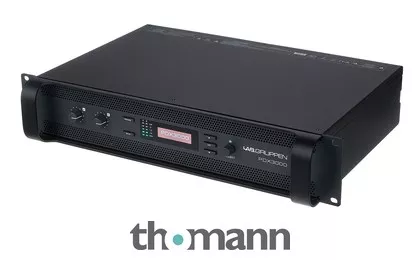

2-Channel Amplifier with DSP-Function
- Power: 2x 1000 W @ 2 Ohm, 2x 1500 W @ 4 Ohm, 2x 800 W @ 8 Ohm, 3000 W Peak
- Class D power amp
- DSP configuration on the front panel or via USB connection and PDX Controller software from a PC
- LCD display
- Adjustable gain, delay, crossover, EQ, limiter and dynamic EQ
- Switch mode power supply (SMPS)
- Comprehensive circuit protection against short circuits, DC and thermal overload
- Speaker Protect Limiter for maximum level output and reliable driver protection
- Pre-configured crossover settings for speaker configuration
- Front panel locking functionality
- Temperature controlled fan
- Signal-to-noise ratio:> 90 dB
- THD+N: 20 – 20,000 Hz @ 1 W <0.1%
- Frequency response: 10 – 20,000 Hz, + 0.5 / -1 dB
- Input impedance: 10 kO unbalanced, 20 kO balanced
- Internal sample rate: 96 kHz
- 2x XLR inputs
- 2x 6.3 mm Jack inputs
- 2x SpeakerTwist NLT4 outputs
- Dimensions (H x W x D): 93 x 483 x 326 mm
- Weight: 6.5 kg
- Colour: Black
- Designed and developed in Sweden
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2020
- Item number478226
- Sales Unit1 piece(s)
- Power (4 Ohms) per Channel 1500 W
- Channels 2
- Rack Units 2 U
- Amp Class Class D
- 2 Ohm stable Yes
- DSP/Crossover Yes
- Convection cooling No
- Width483 mm
- Depth in mm326 mm
- Height93 mm
- Weight6,5 kg
- Temperature controlled fanYes
- Input XLRYes
- Jack Input 6,3 sym.Yes
- Parallel InputYes
- Link Out6,3 mm sym.
- Output Speaker TwistYes
