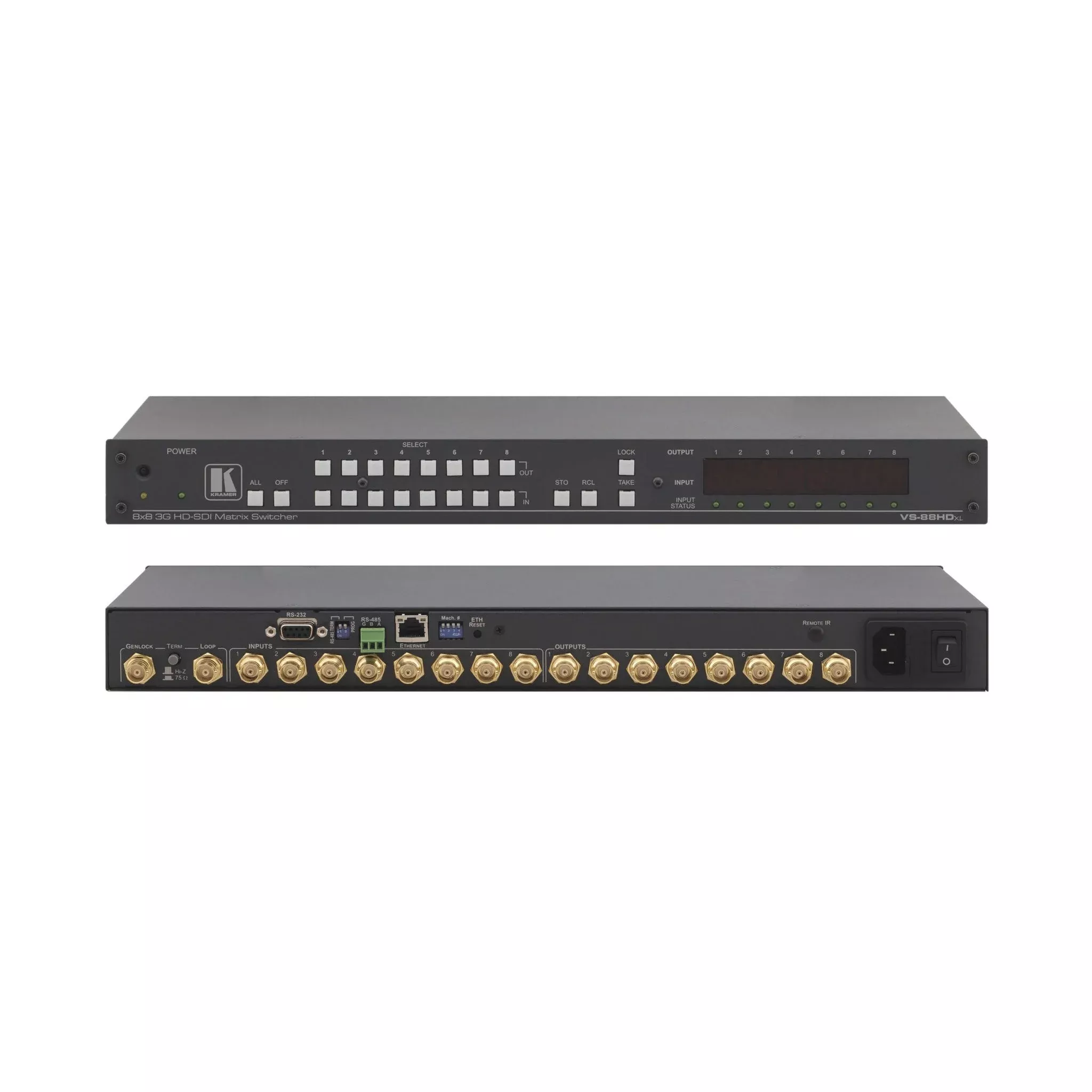

Kramer VS-88HDXL 8×8 3G HD-SDI Matrix Switcher
The VS-88HDxl is a high-performance video switcher designed for professional broadcast and production environments. It features 8 inputs and 8 outputs, supporting SMPTE serial video formats. With equalized and reclocked outputs, it ensures optimal video signal transmission over long distances. The device also offers versatile control options and comprehensive data rate handling, making it ideal for complex setups in video production.
Key Features:
- 8 SMPTE serial video inputs and outputs (SMPTE-259M, 344M, 292M, 372M, 424M)
- Up to 2.97Gbps data rate
- Reclocked and equalized outputs for clear video signal
- Front-panel, RS-232, RS-485, Ethernet, and IR remote control
- Max output level: 800mVpp/75Ω
- 8-character front panel display for easy monitoring
Technical Specifications:
Inputs: 8 SMPTE serial video on BNC connectors
Outputs: 8 equalized SMPTE serial video on BNC connectors
Max. Output Level: 800mVpp/75Ω
Data Rate: Up to 2.97Gbps
Controls: Front-panel, RS-232, RS-485, Ethernet, IR remote
Power Consumption: 100-240V AC, 50/60Hz, 24VA
Indicators: 8-character front-panel display
Included Accessories: Power cord
Package Contents:
- VS-88HDxl Video Switcher
- Power cord
