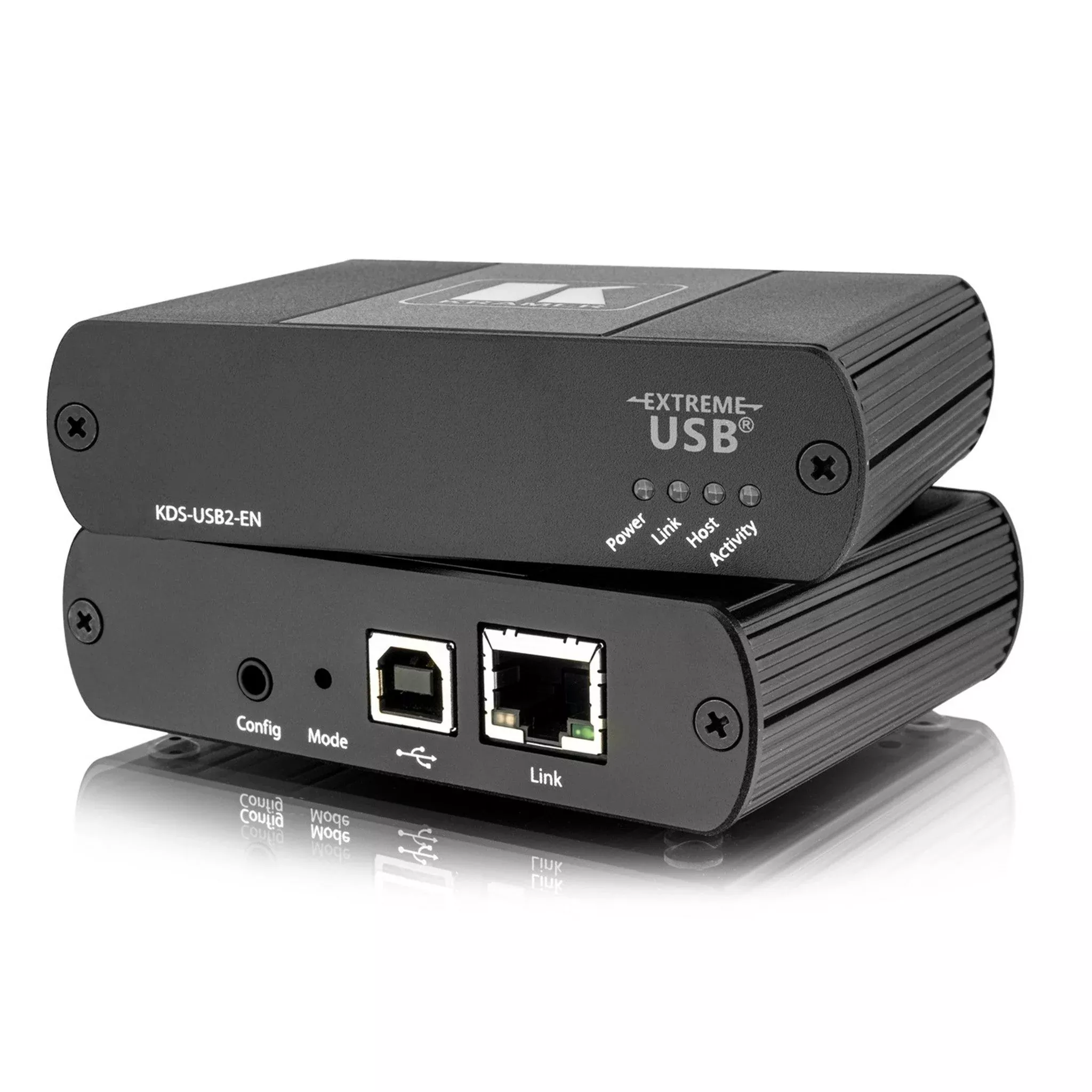

Kramer KDS-USB2-EN USB 2.0 High-Speed Extension Encoder
KDS-USB2-EN is a USB 2.0 high-speed encoder for extendingUSB signals between a host computer and any USB peripheral device such as amouse, keyboard, display, camera, mobile device, media player, or hard drive.KDS-USB2-EN connects to a host computer enabling communication with the USBdevices that are connected to a KDS-USB2-DEC decoder (sold separately).
KDS-USB2-EN can be paired with one KDS-USB2-DEC decoder forbasic one-to-one USB extension, but with the purchase of additional units, youcan diversify your USB extension system. For example, connect USB cameras inmultiple locations to one computer or enable users in multiple locations tocollaborate using the same host computer over a Local Area Network (LAN), inreal time, using their own keyboards, mice and touch screens. Using Kramer’scloud-based control platform, you can map and/or control these multi-unitsetups.
Key Features
- High-Speed Extension – Extends USB 2.0 signals up to 100 mwith CAT 5e/6/7 cables, and up to 10km with fiber optics cable.
- Achieves USB2.0 throughput up to 480 Mbps point-to-point or over LAN.
- Note: Use recommended Kramer cables for best performance.
- Extend Multiple Devices – Connect to all 4 decoder (soldseparately) ports simultaneously with 5 Volts, 500 mA available on each port.
- Collaboration – Pair up to seven decoders (sold separately)to one encoder/host computer for extended, multi-location collaboration.
- SwitchableUSB – Construct one-to-many and many-to-many unitsetups using Kramer’s cloud-basedcontrol platform to manage the mapping andswitch the connections.
- Reliable and Certified – Passes all key USB-IF compliancetests and FCC/CE Class B certified.
- True Plug and Play – No software drivers required.
- Compatibility – Works with all major operating systemsincluding Windows, macOS and Linux.
Technical Specifications
PORTS
1 USB
On a USB type B connector for host computer
1 CAT 5/6
On an RJ-45 connector
EXTENSION LINE
Direct Connect
Up to 100m (330 ft) over solid core Cat 5e/6/7 cable
Network Connect
Up to 100m (330 ft) between switches over solid core CAT5e/6/7 cable (One local to seven remote pairings supported for SimultaneousUsers Interaction)
Note: For best performance use recommended Kramer cables
GENERAL
Maximum Throughputs
USB 2.0 – Up to 480 Mbps*
Maximum Throughputs
USB 1.1 – Up to 12 Mbps
Traffic Types
All USB 2.0 and 1.1 Traffic Types (Control, Interrupt,Isochronous and Bulk)
Device Types
All USB 2.0 and 1.1 Device Types and Classes
Maximum Number of Connected USB Devices
30
Networking Standards
1000BASE-T
Networking Data Traffic
Layer 2
Networking Control Traffic
Layer 3
USER INTERFACE
Controls
Front panel pairing button
Indicators
Power, link, host, activity LEDs
POWER
Source
Host computer
Consumption
780mA
ENCLOSURE
Type
Black anodized aluminum
Cooling
Convection ventilation
ACCESSORIES
Included
1 USB2 type A male to type B male cable
PRODUCT DIMENSIONS
9.50cm x 8.00cm x 2.54cm (3.74” x 3.15” x 1.00”) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
SHIPPING DIMENSIONS
49.00cm x 18.60cm x 58.80cm (19.29” x 7.32” x 23.15”) W, D,H
SHIPPING WEIGHT
0.4kg (0.8lbs) approx.
