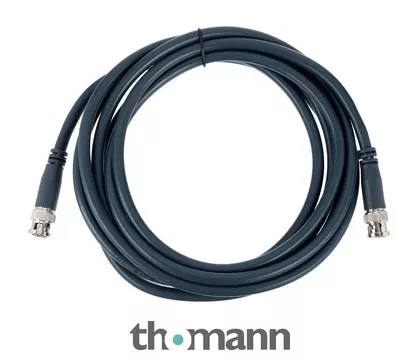

3G HD-SDI BNC Coaxial Cable
- Length: 3.0 m
- Made from a high-performance RG-6 coaxial cable with 75 Ohm BNC plugs at both ends
- Inner conductor: 18 AWG solid copper wire
- Dielectric: Foam skin
- Shielding: (A) 61% aluminium wire braid 34 AWG, (B) double foil / Mylar with 25% overlap
- Outer sheath: PVC
- Colour: Dark grey
- Inner conductor diameter: 1.0 mm
- Diameter of dielectric: 4.6 mm
- Outer diameter: 7.0 mm
- Impedance: 75 Ohm
- Ohmic resistance: 21.8 Ohms / km
- Capacitance: 53.1 pF / m
- Tested up to 3G
3030-Day Money-Back Guarantee
- Available sinceJuly 2020
- Item number498267
- Sales Unit1 piece(s)
- Application Video
- Input connector BNC male
- Output connector BNC male
- Length 3,00 m
- From PlugBNC male
- To PlugBNC male
- ColourGray
- Transfer rate [Gbit / s]3
