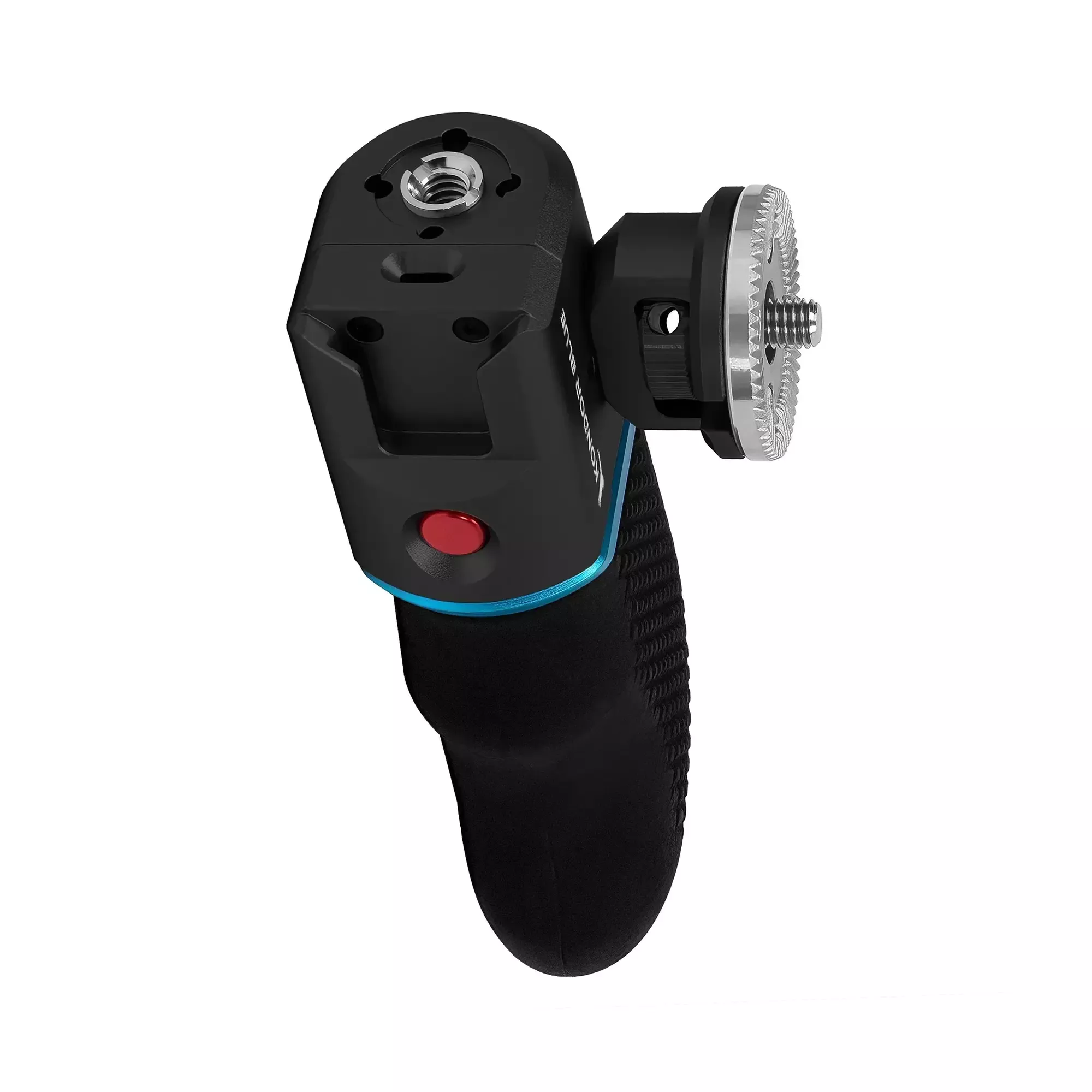

Kondor Blue Trigger Wing Side Handle, Raven Black
Side Handles are a rig staple these days and it’s somethingthat has been on our minds for a long time. But in true Kondor Blue fashion, wedidn’t want to make a dozen variants of a side handle-we wanted to create onethat would rule them all. Thus, the Kondor Blue Wing Side Handle was born!
Taking inspiration from traditional pistol grips, we wantedto ensure that first and foremost the side handle was comfortable. Aftertesting several sizes variations, we nailed an ergonomic grip that iscomfortable for hands of all sizes. The contoured rubber grip featuressymmetrical knurling textures on each side with grooves cutout along the backspine and is comfortable in all shooting temperatures and environments.
The start/stop trigger is ideally located for the pointerfinger and has been recessed to prevent accidental record triggering. Theremote trigger cable has also been nested to keep the cable locked in placewhile also naturally providing direction for cable management. Just above therecord button is a cold shoe which would work great for mounting a lavreceiver, timecode device, etc.
On top of the grip, an Arri mount is ideally placed to workin conjunction with our Magic Arm or Mini Quick Release lineups.
Top top it all off, the grip is ambidextrous and is easilyconverted into a left or right handle with the need to only remove a singlebolt. The side Arri Mounts locate the rosette attachment bracket. This brackethas built-in Arri anti-rotation pins to keep your grip from slipping. Theoffset distance (20mm) of the rosette bracket has been optimized to work aloneor be adapted with a range of Kondor Blue rosette accessories such as our QuickRelease Rosette Modules, Nato Clamp to Arri Rosette, and Rosette Cage Adapterto name a few.
Expand the potential of your rig with the one-of-a-kindKondor Blue Wing Side Handle.
Key Features
- Left/Right compatible
- Ergonomic rubber grip
- Start /stop trigger
- Arri rosette attachment
- 3x Arri Mount
- Cold shoe
- ¼ 20 mount on bottom
Technical Specifications
120mm T x 30mm W (without rosette attachment)
32mm 60 tooth rosette
Rosette attachment adds a 20mm offset from the side handle
250g/8.8 oz
