Kondor Blue Arca Swiss Receiver Camera Plate, Space Gray

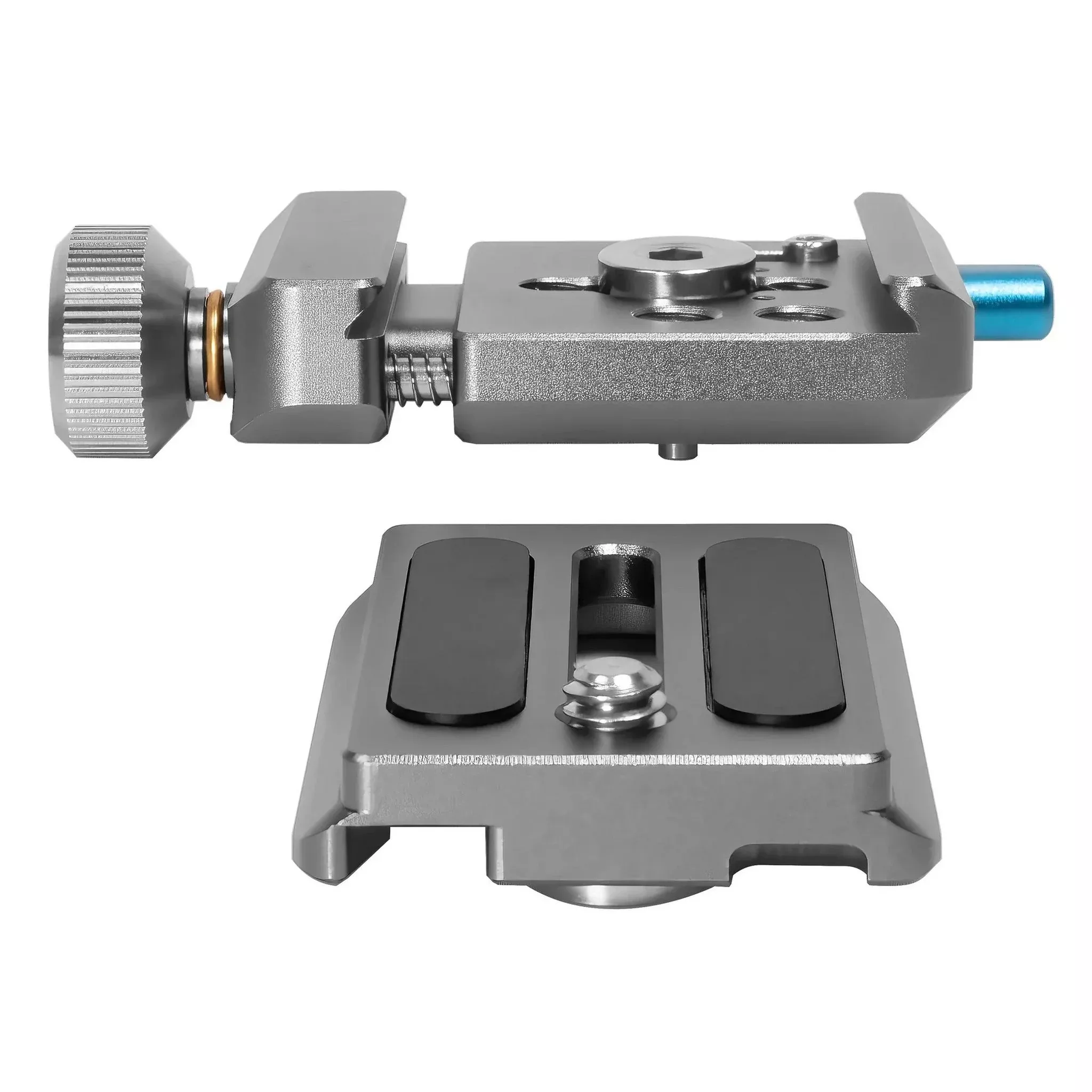

The KONDOR BLUE Arca Swiss Receiver Camera Plate is acompact solution for mounting any Arca Swiss plate. The in-line clamp allowsfor a wide range of adjustment to accommodate any Arca plate. The system isguided by 2x spring loaded bolts and tightened with a large stainless-steelknob that is ultra-smooth thanks to a compact thrust bearing.
There are a variety of options for mounting the receiver.The center 3x 1/4 20 holes are 9mm apart for easy compatibility with many otherindustry solutions. Two additional ¼ 20 holes are 12.5mm away from center. Anadditional, unique mounting option is an included 1/4 20 bolt that mountsthrough the top of the plate (extends 7.5mm into the receiving mount). Whereapplicable, this mount can be used in combination with the included 3mm ARRIstyle anti-twist pins. If these pins aren’t needed, they can be stored directlyin the base of the Arca Swiss Receiver.
The plate and receiver are fully machined out of aerospacegrade aluminum for a lightweight, robust Arca Swiss solution. As always, thesystem is backed by KONDOR BLUE’s lifetime guarantee and customer service.
Key Features
- Smooth spring-loaded tightening with thrust bearing
- Optional male ARRI style anti-twist pins
- 5x 1/4 20 mounts
- Safety release button
Technical Specifications
Arca Swiss Receiver
68g/2.4 oz
Arca Swiss Plate
20g/.7 oz
52mm W x 17mm T 67x mm D
