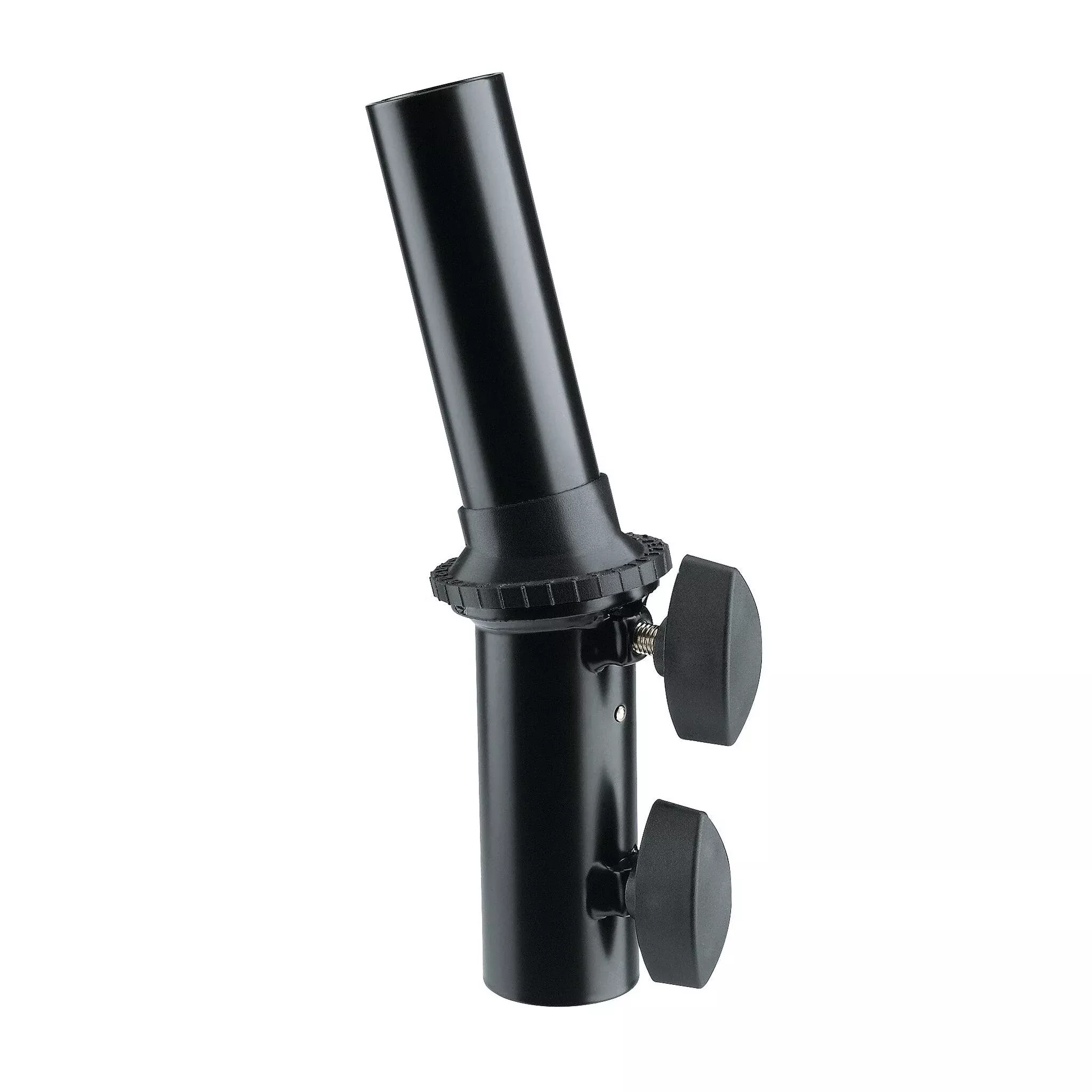

19670 Speaker Tilt Connector: Adjustable Mounting Solution for Speaker Stands
The 19670 Speaker Tilt Connector is a versatile accessory designed to facilitate the secure attachment of speakers to stands with a 35 mm tube diameter. Constructed from durable steel, this connector allows for variable angle adjustments up to 15°, enabling optimal speaker positioning for enhanced sound projection. The angle is secured by a locking screw, ensuring stability during use. This connector is suitable for speakers with a maximum load capacity of 25 kg, making it an essential component for professional audio setups.
Key Features
- Compatible with stands featuring a 35 mm tube diameter
- Constructed from durable steel for enhanced stability
- Angle adjustable up to 15° for optimal speaker positioning
- Secured by a locking screw to prevent unintended movement
- Suitable for speakers with a maximum load capacity of 25 kg
- Height: 9.06 inches (230 mm)
- Weight: 1.30 lbs (0.59 kg)
Technical Specifications
Dimensions: 9.06″ x 9.06″ x 3.07″ (230 x 230 x 78 mm)
Material: Steel
Weight: 1.30 lbs (0.59 kg)
Angle Adjustment: 0° to 15°
Locking Mechanism: Secured by locking screw
Maximum Load Capacity: 55.12 lbs (25 kg)
Suitable for Tubing Diameter: 1.38″ (35 mm)
