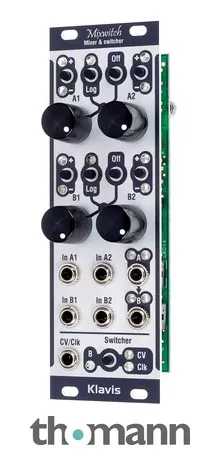

Eurorack Module
- Mixer / switcher
- Dual 2: 1 mixer
- Normalised 4: 1
- Click-free mute
- Click-free polarity reversal per input with LED indicator
- Modulation vs. Audio mode selection (lin / log) pr mixer
- 2 LEDs on each output indicate the amplitude and polarity of the output signal
- Non-connected inputs have a fixed voltage to facilitate offset generation
- DC-coupled analogue signal path
- Switch between 4 inputs, only 2 or disabled
- Input sequential or random via clock / trigger selectable
- Input selectable depending on the control voltage
- Settings are retained via the circuit
- Current consumption: 39 mA (+12 V) / 24 mA (-12 V)
- Dimensions: 8 TE / HP x 25 mm (W x D)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2018
- Item number445341
- Sales Unit1 piece(s)
- Modul Type Mono
- Width 8 TE / HP
