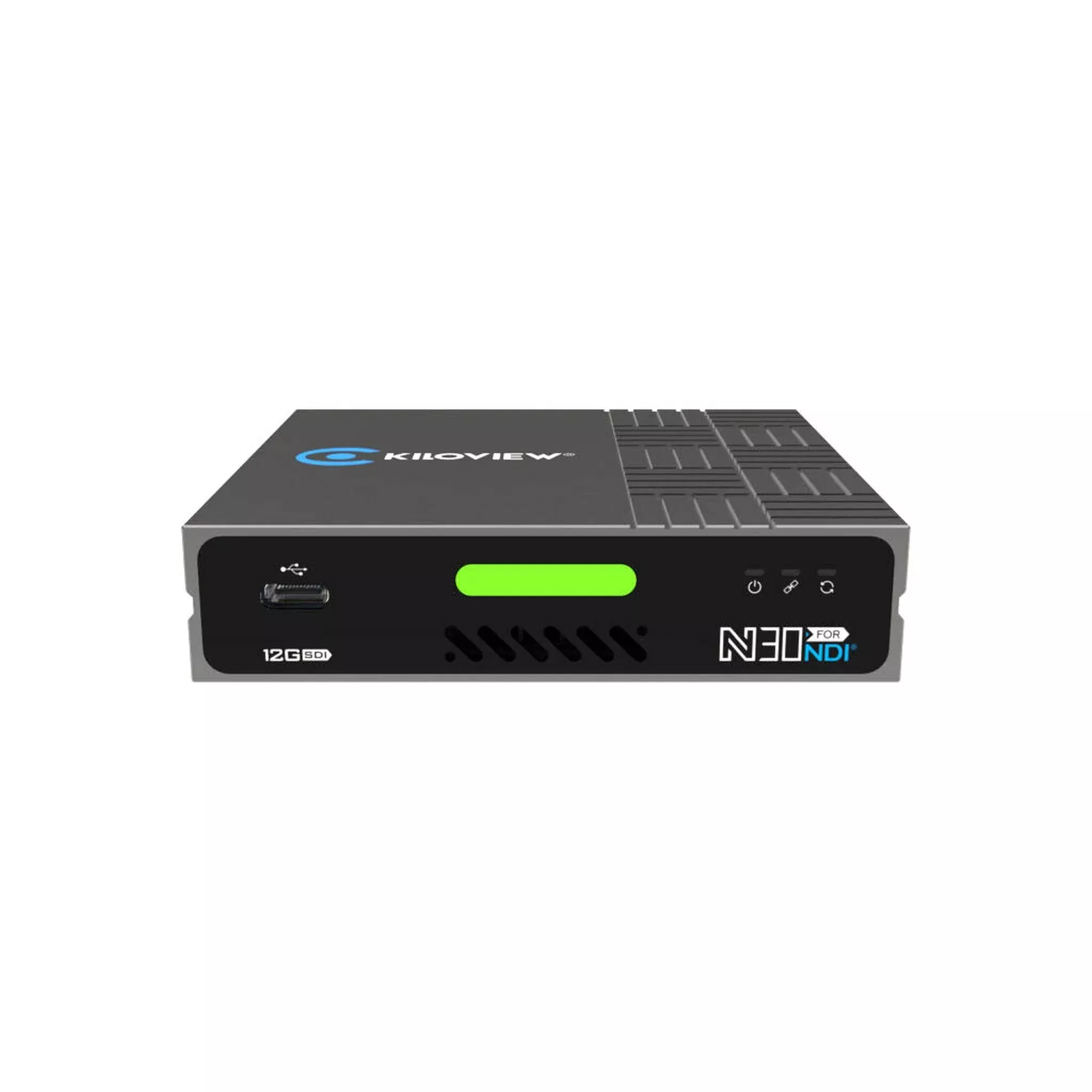

Kiloview N30 12G SDI Full NDI Encoder/Decoder
A Real Professional Broadcast-Grade NDI Converter
Kiloview N30 12G-SDI/Full NDI converter is a bi-directionalconverter that supports 12G-SDI video input (encoder) to Full NDI with 12G-SDIloop through for view on monitor, or 12G-SDI video output (decoder) from FullNDI.
Featured with powerful functions such as PoE, built-in bigtally light, PTZ control, 3.5mm audio line in/out, multi-channel audio,intercom functions, the N30 is your best choice to get access to the fabulousNDI world for professional broadcast-grade IP production.
Why NDI?
The NDI protocol is a high-performance standard that enablesanyone to use real-time, ultra-low-latency video on existing IP video networks.
NDI Webcam Input
Easily designate Kiloview NDI encoders as the video inputsource in popular desktop video applications like Google Hangouts, GoToMeeting,Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDIwebcam input tool.
Real Professional Broadcast-Grade NDI Converter
The N30 supports up to 12G-SDI 4K video input to Full NDIand loop through for monitoring, at the same time it supports full NDI to12G-SDI output. It’s a real broadcast-grade NDI converter.
It’s an NDI encoder, it’s also an NDI decoder
Both NDI encoding and decoding can work on this device, yougot two in one. Switching the working mode on the UI to choose the mode youneed; it can easily meet all your different workflows.
*N30’s encoding and decoding functions are mutuallyexclusive, and cannot be used at the same time
Seamless Switching without Lagging
When decoding NDI sources, with Kiloview unique technology,there will be no lag when switching the output NDI videos.
Control with a USB keypad
In decoder mode, you can preset the NDI sources from number0~9. Connect the decoder with a USB keypad, you can easily choose the outputsource by a single press.
Or you can even use the USB Keypad to control a PTZ camera-the cheapest PTZ Keyboard you can get.
Audio and Intercom
Kiloview N30 supports 3.5mm analog audio line in/out orembedded audio. Up to 16CH audio can be supported. It also supports voiceintercom by USB headset between devices directly, or with Kiloview Intercomserver.
Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easilyfound and connected by users from another network when registered to thedesignated server.
PTZ Control and Big-sized Tally
Kiloview N30 supports PTZ control through USB to serialRS232/485/422. It also supports PTZ control over IP, no extra cable required.
N30 has a big-sized while bright and distinct Tally forPVW/PGM indication – all is to make perfect cooperation for your team.
Power it as you wish
With PoE, the N30 can be powered with a single cableconnection. With the design of wide DC input range from 5V to 18V, it can alsobe easily powered by USB power or camera battery.
Various mounting methods
Exquisite design, small and light-weight, which can beeasily attached to the camera by a threaded screw.
Rack mounted NDI Converter
The groove design on both sides facilitates the rackmountinstallation in 1U/3U
Technical Specifications
Full NDI Bandwidth Requirement
Resolution
Default Bitrate
4KP60
250Mbps
4KP30
200Mbps
1080P60
125Mbps
720P60
90Mbps
Parameters
Video input
1*12G-SDI
Video output
1*12G-SDI（Loop or decoding output）
Audio port
1*3.5mm
Network
1*RJ45 1000Mbps Ethernet port (with PoE)
Video resolution
Up to 4Kp60 (backward compatible with SD/HD/VESA)
NDI codec capacity
1*NDI encoding or 1x NDI decoding
NDICODEC feature
FULL NDI HD encoding, typical bitrate: 250Mbps@4K60,125Mbps@1080p60
LED indicator
Tally light, power light and status connection light
Power
PoE, DC, D-Tap (camera) optional. 5-18V wide range supported
Voice intercom
Customization
PTZ control
Network PTZ and Serial Port
DHCP
Support
Management
Web UI and remote management with KILOVIEW KiloLink Server
Power consumption
6w
Operating temperature
-20~40 Degrees C (Storage temperature: -20~70 Degrees C)
Dimension
110*95*23 mm (4.33” *3.74” *0.91”)
