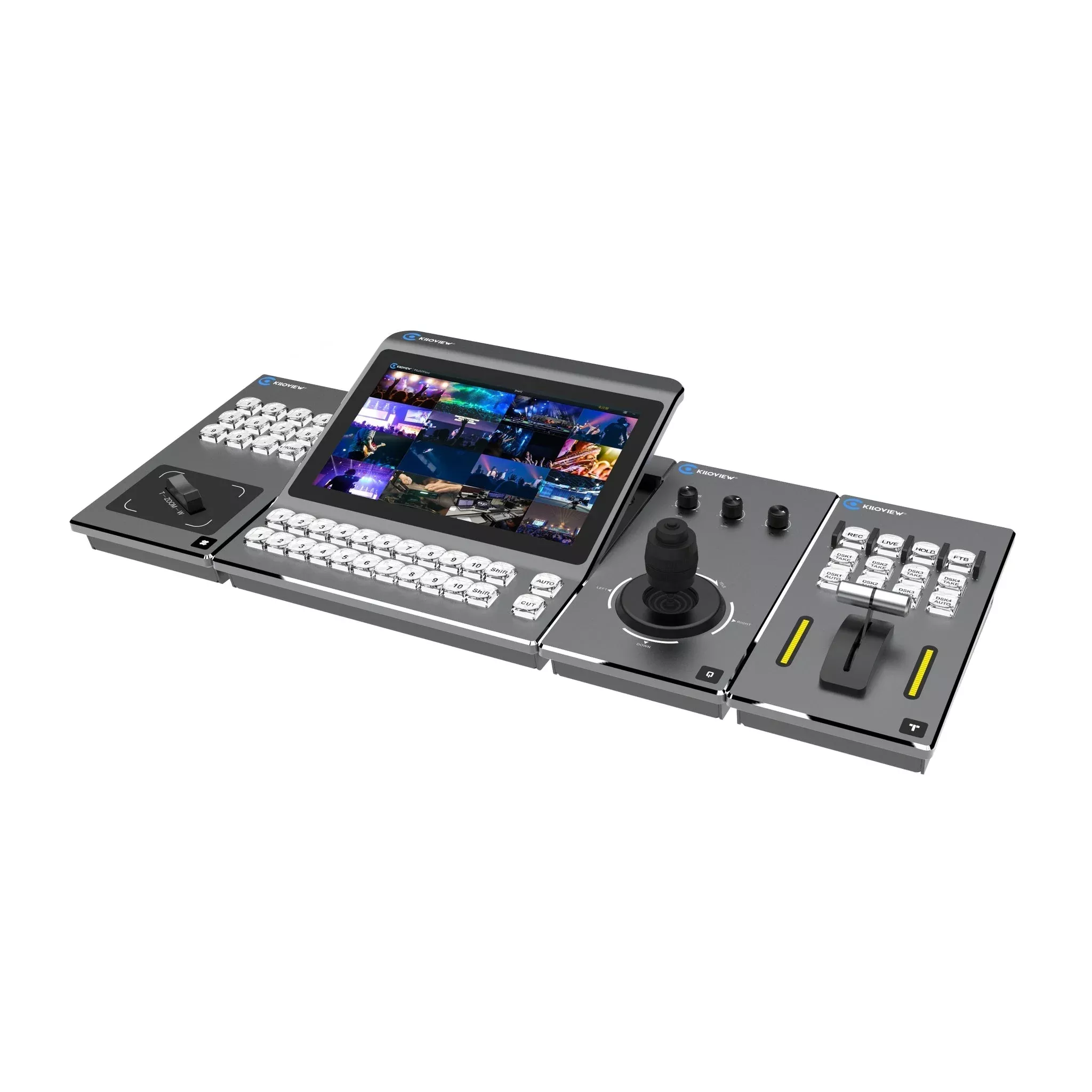

The Kiloview LinkDeck VideoProduction Controller/Switcher Bundle comprises four distinct design decks:Panel Deck, Take Deck, Zoom Deck, and the PTZ Deck. It utilizes RTC technologyto control all Kiloview hardware and software components. LinkDeck empowersusers to oversee the entire Kiloview ecosystem, covering NDI ONAIR, NDI CORE,NDI RECORDER, NDI Encoder, NDI Decoder, Multiview, and KiloLink Server. Byincorporating a Python-based third-party plug-in, LinkDeck allows seamlessinteraction with systems like TriCaster and vMix.
Simplify with One Cable
LinkDeck, an IP-based solution,ensures secure and stable transmission with control and management facilitatedthrough a single PoE cable.
Scalability through ModularDesign
LinkDeck’s modular structure, withthe Panel Deck, Take Deck, Zoom Deck, and PTZ Deck, offers vast scalability.These decks can be combined as needed to create a personalized workspace withtailored content. The design promotes easy assembly and installation for anenhanced user experience.
Panel Deck – CentralizedControl
The Panel Deck features a 10.1”touchscreen and a bi-color LED keyboard for effortless operation and auser-friendly interface. Customizable control of various products isfacilitated through the 10.1” screen, while soft keys and physical keys manageall workflow aspects. DC and PoE supply power to the entire suite of Decks.
Effortless Operation with TakeDeck
The Take Deck streamlinesswitching operations using a “T” stick and dual LED displays. It offers 12buttons to control switching, FTB, recording, live streaming, and screenlocking with a single press for simplified operation.
PTZ Precision with PTZ Deck
The PTZ Deck allows single-handedcontrol of PTZ cameras, enabling adjustments to focus, aperture, and whitebalance through joystick movements and switches.
Zoom with Ease using ZOOM Deck
The ZOOM Deck facilitates easyzooming in and out with a rocker, along with 11 soft buttons for personalizedcustomization.
Material and Applications
The Panel Deck is crafted fromdurable aircraft-grade materials, featuring pro-level joystick, buttons,switches, selectors, and ports to deliver a studio experience anywhere. TheLinkDeck system is versatile, suitable for diverse settings such as studioproduction, production trucks, concerts, live streaming, live events, and videoconferences.
Technical Specifications
Included
Panel Deck
Take Deck
Zoom Deck
PTZ Deck
Panel Deck DP-01
Display
10.1″ multitouch LCD screen
Resolution
1920 x 1200
Keyboard
24 keys (Bi-color tally)
CPU
8-core CPU
Memory
2GB
FLASH Storage
16GB
Video Output
1 x HDMI output up to 1080P60
Internet Input
1GbE port with PoE
Power Supply
DC5.5/2.5 12V
HDMI Port
1
Key
24, user-defined keys
USB Port
7×Type-C 2.0
DC Port
Single DC5.5/2.1
Dimension / Weight
6.65lb/285.33*260.00*110.10mm(11.2″x10.2″x4.3″)
Operating Temperature
-20℃~45℃
PTZ Deck DQ-01
USB
2 × USB Type -C 2.0
Key
1
Control Knob
3
Joystick
1
Tally
3 (2 in white，1 inRGB based on settings)
Dimension / Weight
3.30lb/260.00*130.00*107.45mm(10.2″x5.1″x4.2″)
Zoom Deck DZ-01
Keys
13
ZOOM Rocker
1
USB
2 ×Type-C 2.0
Dimension / Weight
3.04lb/260.00*130.00*53.68mm(10.2″x5.1″x2.1″)
Take Deck DT-01
USB
2 × Type-C 2.0
Keys
13
T Stick
1
Dimension / Weight
3.22lb/ 260.00*130.00*74.00mm (10.2″x5.1″x2.9″)
