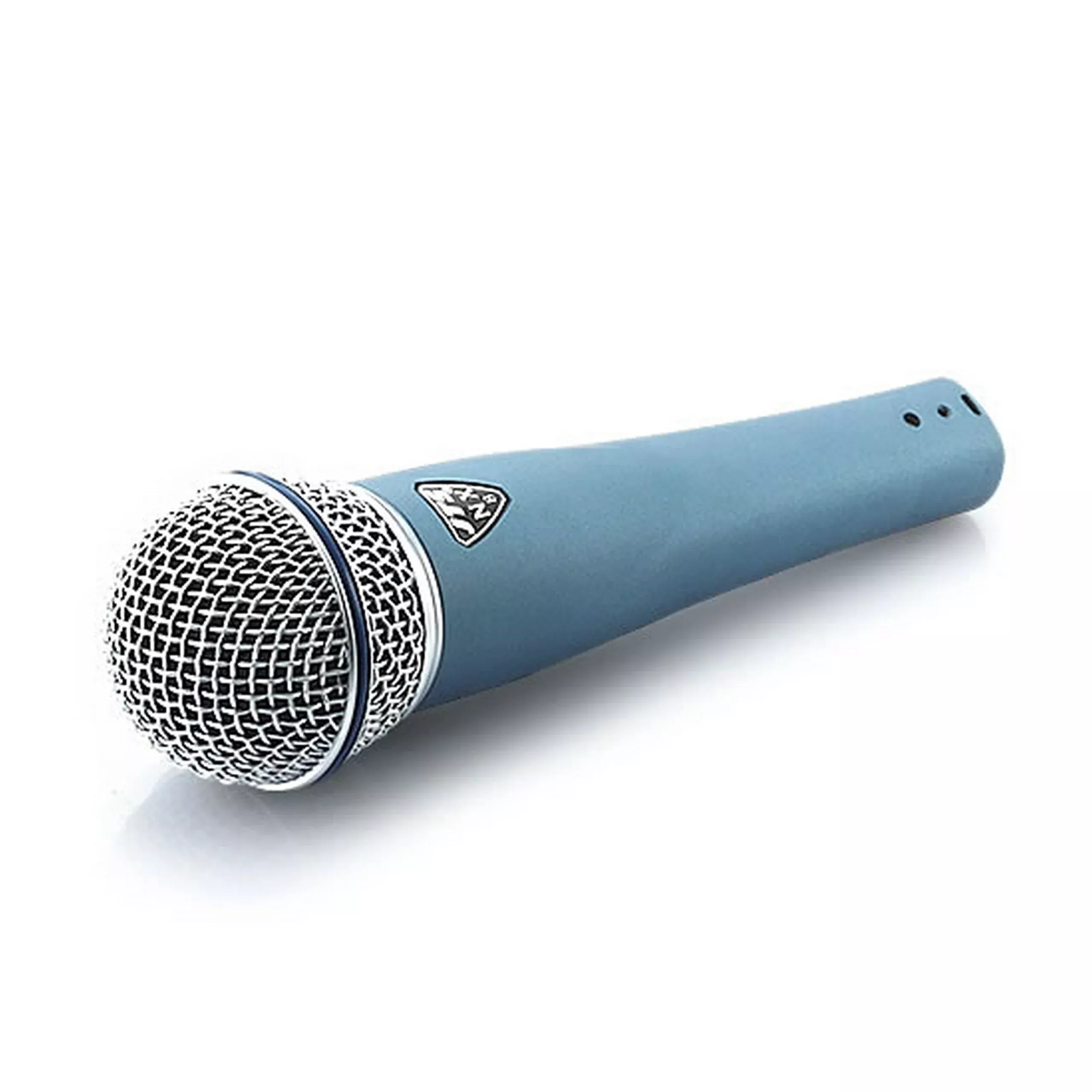

JTS NX-8 Vocal Performance Cardioid Microphone, No Switch
Based on the success of X-series performance microphonesNX-8/NX-8S reenhance overall performance. NX-8/NX-8S provide extended frequencyresponse and dynamic range for cleaner and smoother sound. The shock mountkeeps handling noise to extremely low level. Reinforced cartridge and hardenedgrille make NX-8/NX-8S one of the most rugged mics in the professionalmicrophone industry.
Technical Specifications
Type
Moving Coil Dynamic
Frequency Response
50~16,500 Hz
Polar Pattern
Cardioid, rotationally symmetrical about microphone axis,uniform with frequency
Sensitivity (at 1,000Hz)
-72dB*(0.25mV) *0dB=1V/μbar
Impedance
600Ω
Phasing
Positive pressure on diaphragm produces positive voltage onpin 2 with respect to pin 3
Connector
Three-pin professional audio connector (Male XLR type)
Case
Metallic enamel-painted die cast metal body with hardened,matte-finished steel grille
Net Weight
245 grams (8.6 oz)
