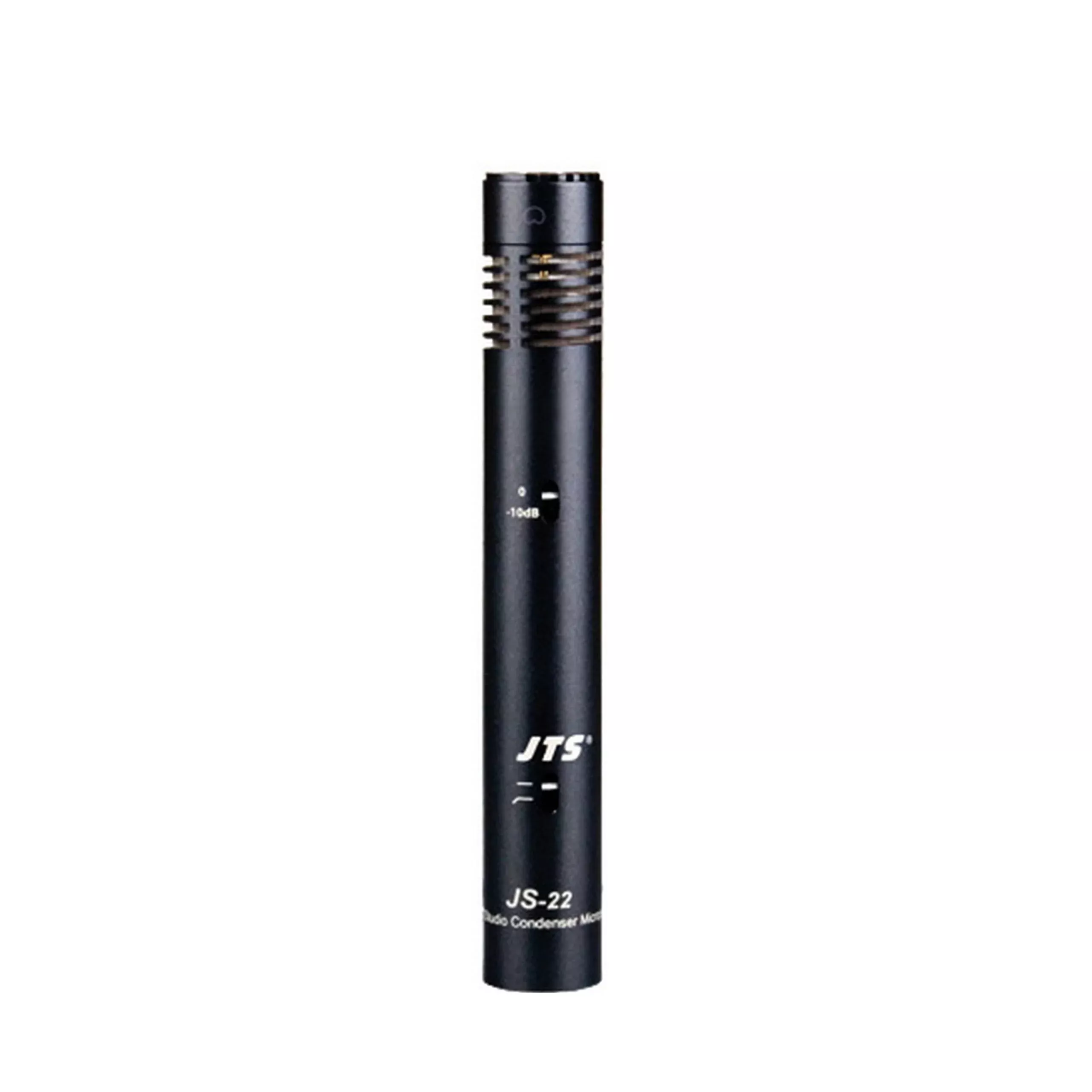

JTS JS-22 1/2-Inch Studio Condenser Microphone
Based on the successful experience of JS-1 series JS-22 isdesigned for instrument miking from strings to percussions. The JS-22 is builton a solid brass with accurate processing. The 1/2” golden plated diaphragm ismanually assembled by JTS craftsman. The precise designed circuit with low cutand pad feature provides flat response. This microphone royally reproduces anykinds of instruments and vocals. Application: Acoustic guitar, acoustic bass,strings, piano, woodwinds, orchestra, stereo pick-up, ensemble vocals andcymbals.
Technical Specifications
Type
Condenser Mic
Frequency Response
20~20,000 Hz
Sensitivity
-36±3 dB(15.8mV) 0dB=1V /Pa,1kHz
Directional Pattern
Cardioid
Attenuation Switch
-10dB
Low Frequency Roll-off
80Hz
Impedance
100Ω
Max. SPL For 1% T.H.D.
140 dB
Signal To Noise Ratio
78dB
Power Supply
36~52VDC phantom power
Current consumption
≤3mA
Output
XLR-M type (power module)
Dimensions(mm)
Ø22.5mm(W) 150.5mm(H)
