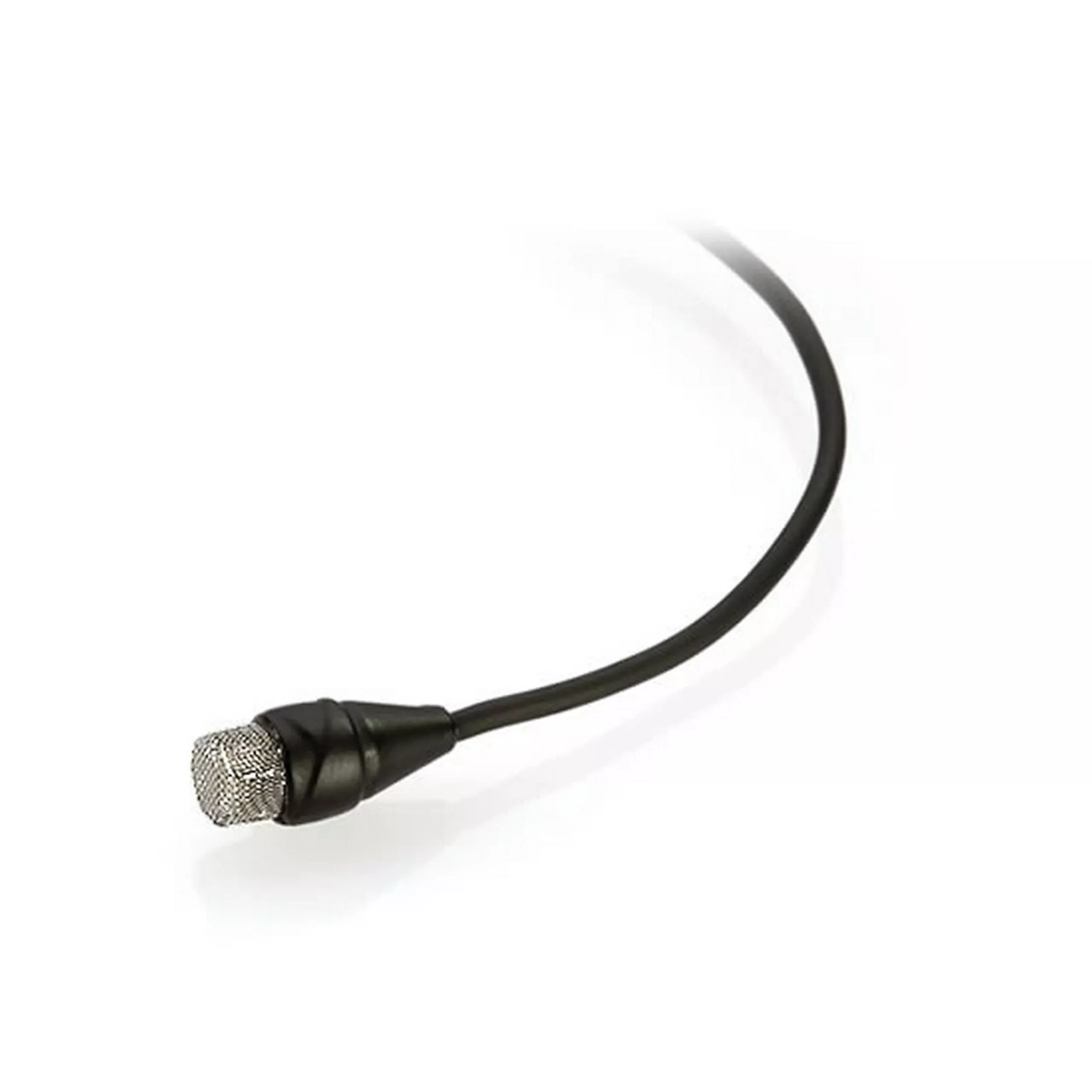

JTS CX-500 Subminiature Condenser Instrument Microphone
The CX-500 provides clean, detailed and natural soundquality with a subminiature condenser capsule. The tailed response curve worksbest with string instruments like violin and guitars besides many otherinstruments. Various mount kits are bundled for best fit to any kind ofinstruments. With sophisticated capsule technology and tailored fixtures, theCX-500 can pick up every trill of strings. The bundled MA-500 adapter makesCX-500 capable for both wired and wireless application.
Technical Specifications
Type
Omni-directional Condenser
Frequency Response
20~20,000 Hz
Sensitivity (at 1,000Hz)
-58±3dB*(1.25mV) *0dB=1V/μbar
Impedance
1.5kΩ
Max.SPL for 1% T.H.D.
130 dB
Signal-To-Noise Ratio
68 dB
Output Connector
4P Mini XLR
Power Supply
1-5 VDC
Current Consumption
≤0.5mA
Weight
6.5 grams (including cable)
Dimensions(mm)
Ø6mm(W)*13mm(H)
