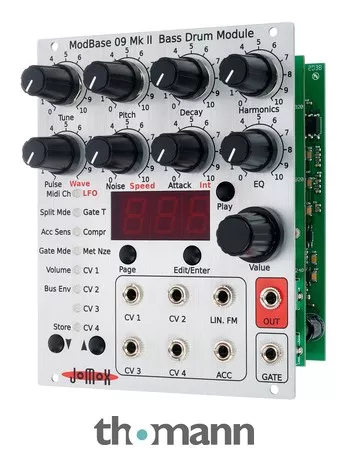

Eurorack Bass Drum Module
- Analogue VCO
- Tunable from 10 – 175 Hz
- Adjustable parameters: Tune, pitch, decay, harmonics, pulse, noise, attack and EQ
- 2 LFOs with 16 unipolar and bipolar waveforms
- Memory for 100 presets
- Control of all parameters via MIDI controller
- 4 CV inputs, assignable to all parameters
- Linear FM input
- Trigger and Accent inputs
- Audio output
- MIDI in/out (5-pin DIN)
- Current consumption: 140 mA (+12 V) / 80 mA (-12 V)
- Width: 20 HP
- Depth: 53 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2020
- Item number505151
- Sales Unit1 piece(s)
- Width 20 TE / HP
