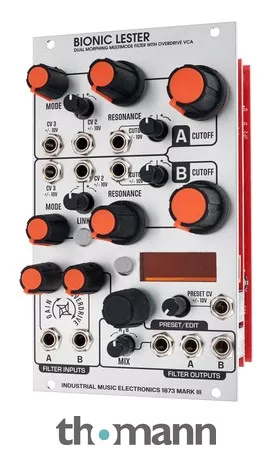

Eurorack Module
- Digital two-channel multimode filter
- 2-Pole state-variable digital filter modelled on “virtual analogue” filters from the 90s
- Filter type per channel can be faded between low-pass, band-pass, high-pass and notch
- Cutoff and resonance adjustable per channel
- 3 CV inputs per channel (1x cutoff, 2x freely assignable)
- Link function for filter B allows parallel “dual peak” connection
- Serial 4-pole cascading and stereo operation
- Input stage with gain/overdrive control and digital VCA per channel
- Preset manager with 8 memory locations
- Preset morphing and CV control
- Outputs for filter A, filter B and filter mix
- Current consumption: 105 mA (+12 V) / 35 mA (-12 V)
- Width: 15 HP
- Depth: 40 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2019
- Item number471226
- Sales Unit1 piece(s)
- Width 15 TE / HP
