Ikan OTT-CONTROLLER-V2 OTTICA IP PTZ Camera Controller

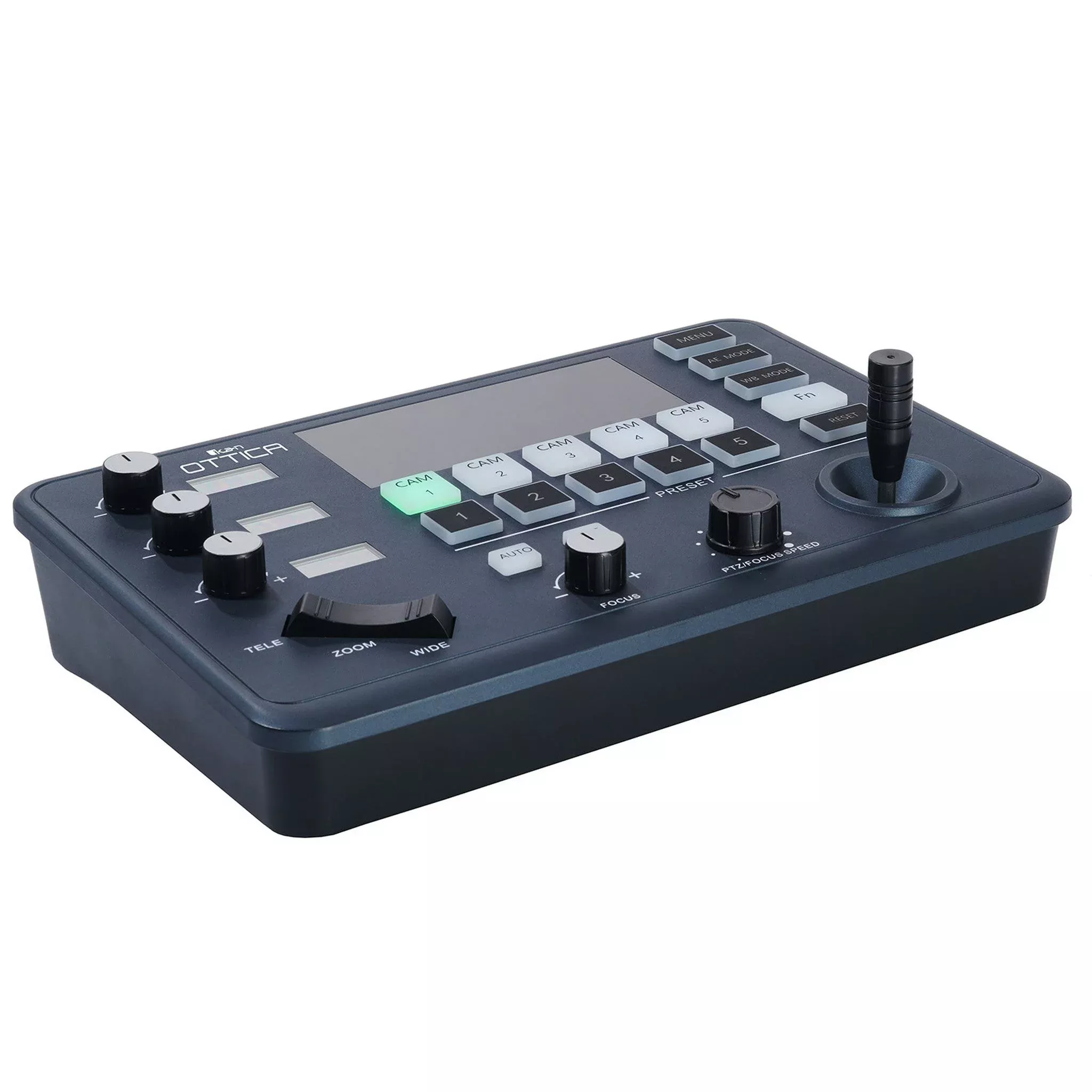

The Ikan OTT-CONTROLLER-V2 is acompact PTZ controller that allows you to control up to 5 cameras using eitherIP or analog control protocols. The large LED screen displays menu settings andnetwork information, whereas the smaller LED screens allows you to controlvarious exposure and color parameters.
CONTROLLER INTERFACE
The OTT-CONTROLLER-V2 has portsfor RJ45, RS232 (DB9), RS422 & RS485 (Terminal Connector), 12v BarrelConnector, and USB micro (for firmware upgrade).
PRECISE CONTROLS
This compact camera controllerfeatures a high‐quality 2-axis joystick for smooth control of pan & tilt,and a zoom rocker. Two separate knobs allow for control of Focus &PTZ/Focus Speed. The speed knob provides 7 levels of adjustment. Pressing andholding the Fn button will move the camera back into the default position.
QUICK CAMERA PARAMETERADJUSTMENT
By pressing either AE Mode or WBMode buttons, the three smaller LED screens will display different settingscombinations that correlate to the mode you select. Each screen has adesignated knob for adjusting the value of the parameter displayed on the LEDscreen. These parameters include focus, gain, iris, gain limit, brightness,exposure compensation, shutter, red gain, blue gain, and color temperature.
SIMULTANEOUS PROTOCOL CONTROL
The OTT-CONTROLLER-V2 gives youflexibility when operating different cameras with different control protocols.Other controllers might only allow you to control using one protocol at anygiven time, whereas this controller enables you to mix & match differentcontrol protocols simultaneously. Compatible protocols include: IP VISCA,VISCA, PELCO D/P.
PRESET POSITIONS
To create a camera preset, simplypress and hold one of the preset buttons for 2 seconds. When you want to callthat preset, tap the same button and your camera will move to the desiredpreset position.
Key Features
- Supports IP VISCA, Serial PortVISCA, PELCO‐D/P Protocols Simultaneously
- RJ45, RS422, RS232, RS485 ControlInterfaces
- Control up to 5 Cameras
- 3 Knobs Control Camera ParametersDisplayed on Designated LED Screens
- Streamlined Camera PresetConfiguration
Technical Specifications
Controllable Cameras
5
Communication Protocol
VISCA, PELCO P/D, UDP
Number of LED Displays
4 Color LED Display Screens
Number of Camera Channels
5
Variable Knobs
4
Joystick
2-Axis
Zoom Mode
Tele-Wide Bridge Keys
Buttons
17 Silicon Buttons
Presets Short Keys
5 Presets or Max 10 Presets forselection per Each Channel
Focus Modes
Auto/ Manual/ OPT
Pan/Tilt Rotation Speed
7-Level Adjustment
Zoom In/Out Speed
7-Level Adjustment
Baud Rate
2400bps, 4800bps, 9600bps,19200bps, 38400bps
Data Bits
8 Bit
Stop Bit
1 Bit
Parity Bit
None
Internet Protocol
UDP / IP VISCA
Rated Voltage
DC 12V
Rated Current
0.3A max
Max Power Consumption
3.6W
Password Privacy Protection
Yes
Security Lock
Kingston’s Security Lock
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ +60°C / -4°F ~ 140°F
Working Environment
Indoors
Dimensions (L x W x H)
9.6″ x 6.4 x 1.8″ / 244x 164 x 48mm”
G.W
2.4 lbs. / 1.1 kg
RS422/RS485 Interface
Phoenix Contact 4 pin 3.81mmTerminal
RS232C Interface
DB9 Male Interface
LAN Interface
RJ45 Female Interface
Power Supply
12V 100-240VAC 50-60Hz
Firmware Upgrade
Via Micro USB
What’s Included
1 x PTZ Controller
1 x Phoenix Contact 4 pin 3.81mmTerminal
1 x Power Adapter
1 x User Manual
