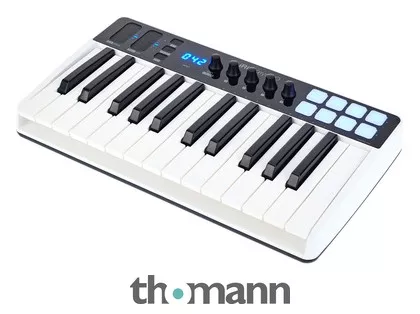

USB Controller Keyboard with Built-in Audio Interface
- Compact controller keyboard with 25 velocity-sensitive standard keys
- Eight assignable velocity-sensitive multi-colour pads
- Two touch strips
- Four dual-assignable, touch-sensitive rotary encoders
- Three buttons for transport and editing functions
- AD/DA conversion: Up to 24 bit / 96 kHz
- Stereo headphone output: 3.5 mm stereo jack, power 100 mW at 50 ohm
- Pedal connection: 6.3 mm TRS jack
- Power supply connector
- Mini DIN connector for data cable
- Power supply via USB when used with a computer, batteries or optional power supply (Art. 417705) with charging function for connected iOS devices (only via mini DIN to Lightning cable)
- System requirements: WinXP or later, Mac OSX 10.6 or later, free USB port
- Dimensions (W x D x H): 373 x 208 x 65 mm
- Weight: 1.26 kg
Note: Tablets/laptops are not included!
Microphone input:
- XLR balanced
- Gain: 46 dB
- Input impedance: 1.6 kOhm
- Phantom power: 48V +/-4V
- Frequency range: 20 – 20,000 Hz (+/-1.5 dB)
- Input noise: -103 dB(A), -97 dB RMS
Instrument input:
- 6.3 mm jack unbalanced
- Gain: 27 dB
- 1 MOhm input impedance
- Frequency range: 20 – 20,000 Hz (+/-1.5 dB)
- Input noise: -103 dB(A), -97 dB RMS
Line outputs:
- Two 6.3 mm jacks balanced
- Output level max. 13 dBu at 600 ohm balanced
- Frequency range: 10 – 21,000 Hz (+/-0.2 dB)
- Dynamic range: 102 dB (A)
Compatible iOS devices (from iOS 6):
- iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th Generation, iPad Pro (12.9″) 1st Generation, iPad Pro (9.7″), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th Generation
Delivery contents:
- Lightning mini DIN cable 0.6 m
- USB mini DIN cable 0.6 m
- iOS device tripod
- Four 1.5 V AA batteries
- Software package (download after registration)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2017
- Item number420954
- Sales Unit1 piece(s)
- Number of Keys 25
- Hammer Action Keys No
- Aftertouch No
- Pitch Bend / Modulation Yes
- Rotary Encoder 4
- Fader (Amount) 2
- Pads 8
- Display Yes
- MIDI interface None
- Sustain Pedal Connection Yes
- USB-port Yes
- Mains Operation Yes
- Battery Operation Yes
- Bus-Powered Yes
- TypeKeyboards
- Recording / Playback Channels1×2
- Number of Mic Inputs1
- Number of Line Inputs1
- Split Zones0
- Instrument Inputs1
- Number of Line Outs2
- Headphone Outs1
- Phantom PowerYes
- Number of S/PDIF Connectors0
- Number of ADAT Connectors0
- Numer of AES/EBU Connectors0
- Number of MADI Connectors0
- Word ClockNo
- Ethernet0
- Other ConnectorsNone
- Max. Sampling Rate in kHz96 kHz
- Width in mm373 mm
- Max. Resolution Rate in Bits24 bit
- USB Bus-PoweredYes
- Height in mm65 mm
- Depth in mm208 mm
- USB Version1.1
- Weight in kg1,3 kg
- Special Featuresintegrated Audio Interface
- Width373 mm
- Depth208 mm
- Height65 mm
- Included in deliveryLightning-Mini-DIN-Cable 0.6 m, USB-Mini-DIN-Cable 0.6 m, iOS Device Stand, 4x 1.5V AA Battery
- Connection FormatMini DIN-USB Typ A, Mini DIN-Lightning
