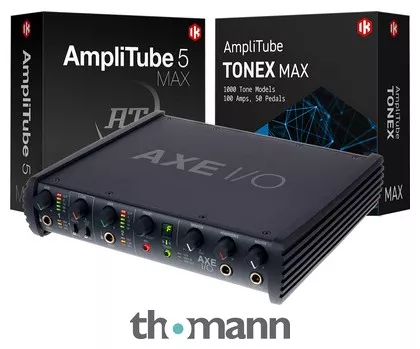

USB 2.0 Audio Interface with Guitar Effects Software
- Audio interface specially designed for guitarists
- 2 Inputs for instrument-, line- and microphone signals with discrete class-A preamps and switchable 48 V phantom power
- Hi-Z instrument inputs at the front, of which input 1 is with Z-Tone (variable impedance)
- JFET circuit adds subtle harmonic enhancements + Active circuit for optimal operation with active pickups
- Mic/Line inputs on the back via XLR/jack combo sockets
- 1 Amp output on the front for re-amping
- 4 Balanced line outputs on the back with 6.3 mm TRS jacks
- 1 Stereo headphone output to 6.3 mm stereo jack with own control
- Monitor- and master volume control
- Integrated guitar tuner
- Preset controls for controlling plug-in parameters
- 2 Inputs for expression pedals or footswitches for real-time control of virtual guitar effects
- AD/DA conversion with 24-bit/192 kHz
- 117 dB Dynamic range
- MIDI input/output
- Dimensions: 238 x 211 x 53 mm
- Weight: 1.3 kg
- System requirements: from Windows 7 (64-bit), from Mac OSX 10.11 (64-bit)
- Includes a comprehensive software package (downloadable) with AmpliTube 5 MAX, TONEX MAX, 10 T-RackS processors and Ableton Live Lite, and a 1.5 m USB cable and power supply unit
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2021
- Item number508002
- Sales Unit1 piece(s)
- Recording / Playback Channels 2×5
- Number of Mic Inputs 2
- Number of Line Inputs 2
- Instrument Inputs 2
- Number of Line Outs 4
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 238 mm
- Depth 211 mm
- Height 53 mm
- Connection Format USB port Type B
- Included in deliveryPower Supply, USB-A to USB-B Cable
- Zero latency monitoringYes
