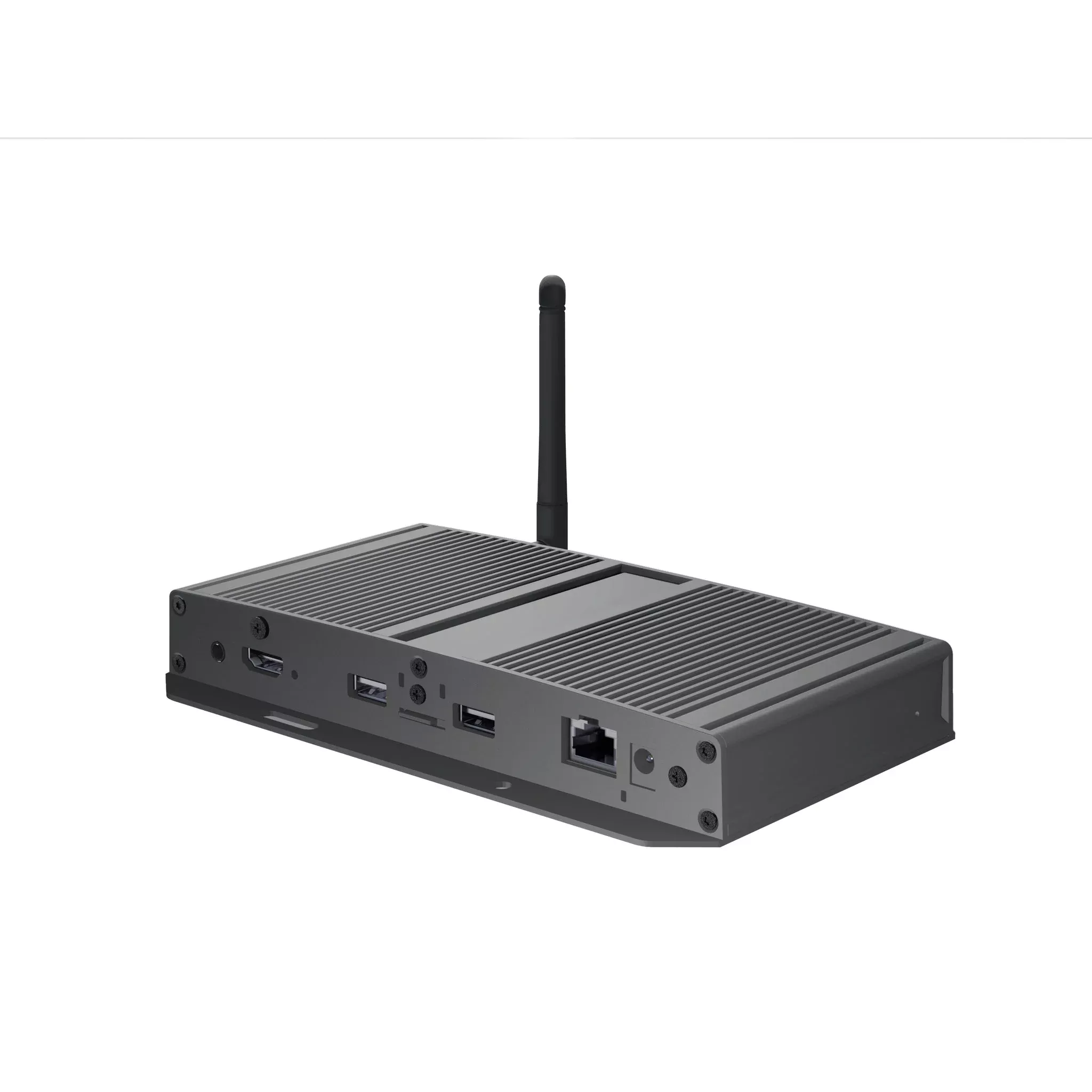

Featuring a powerful quad-core processor that delivers highperformance, energy efficiency, and meticulous watchdog monitoring, IAdeaXMP-8552 High-Performance Kiosk Processor and 4K Media Player ensuresexceptional performance across a wide range of applications. Whether it’s usedin an interactive wayfinding kiosk or a gesture-sensitive retail kiosk, itconsistently displays content vividly day after day.
Unmatched Performance and Quality
The XMP-8552 boasts a robust quad-core processor that offersexceptional performance, energy efficiency, and reliable watchdog monitoring.Whether it powers an interactive wayfinding kiosk or a gesture-sensitive retailkiosk, your content is always displayed optimally, day after day.
Immersive Visuals and Interactive Experiences
Creating lasting customer connections requires memorableexperiences. The XMP-8552 processor streamlines the setup of customizable andremotely manageable kiosks, allowing retailers to enhance user experiences withintelligent features like sensors, cameras, buttons, and readers, for a uniquebrand engagement.
Durable Design with Efficient Cooling
Plastic-encased kiosk players are prone to overheating andphysical damage. In contrast, the XMP-8552’s aluminum housing ensures quickcooling and protects against impact damage, ensuring uninterrupted operationeven in demanding environments.
Key Features
- The XMP-8552 features a powerful quad-core processor forconsistent performance.
- It offers excellent energy-saving capabilities and diligentwatchdog monitoring.
- Whether used for an entrance-side interactive wayfindingkiosk or a gesture-sensitive retail kiosk, the XMP-8552 ensures that yourcontent is always in the best condition.
- The latest Android OS provides greater security andperformance enhancements.
- Power and connectivity are consolidated into a single wire,reducing cable clutter.
- Dual-band Wi-Fi support allows for easy wireless contentpushing.
- The XMP-8552 supports touch functionality for interactivewayfinding and self-service kiosks.
- Round-the-clock device monitoring ensures device stabilityand operation.
- The XMP-8552 is durable and can withstand tough environmentsand wide temperature ranges.
- It simplifies the deployment of customized and remotelymanageable kiosks, integrating with smart technology for a unique user andbrand experience.
Technical Specifications
Local Storage
16 GB eMMC built-in
Micro SD card (replaces internal storage)
Dimensions
186 x 119 x 27.6mm / 7.32 x 4.69 x 1.09”
Supported Video Formats
H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)
Connectivity
IEEE 802.3ab Gigabit Ethernet
IEEE 802.11a/b/g/n/ac dual-band Wi-Fi
IEEE 802.3af PoE
Ports
Gigabit Ethernet port x 1
HDMI 2.0 (3840 x 2160 @ 60fps) x 1
Micro USB x 1
USB 2.0 x 1
USB 3.0 x 1
3.5 mm analog stereo audio out x 1
External antenna port x 1
Accessories
HDMI cable
External 2 dB wireless antenna
Velcro
DC jack bracket
Micro SD card bracket
M2.5 screw x 2
Quick Start Guide
AC power adapter with interchangeable plug head(US/EU/UK/AUS)
SignApps Express QR code
Supported Open Standards
HTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
API 12.0
Power
Input: 100 – 240V, 50 – 60 Hz, 0.5 A Max.
Output: 12V, 1.5 A
UL/CB/PSE certified power supply
Supported Image Formats
JPEG up to 1920 x 1080
PNG up to 1920 x 1080
Expansion Options
Memory expandable to 16 GB / 32 GB with Micro SD / SDHC card
Supported Audio Formats
MP3 up to 320 Kbps
Environmental Tolerance
Operating temperature: -20 to 50 Degrees C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 – 200Hz, random
Advanced Signage Features
Remote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is notavailable
Content Management
SignApps Express Utility
3rd party solution (optional license)
HTML5 Support
Widgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome and AppleSafari browsers
