Auto-Tracking and Auto-Framing

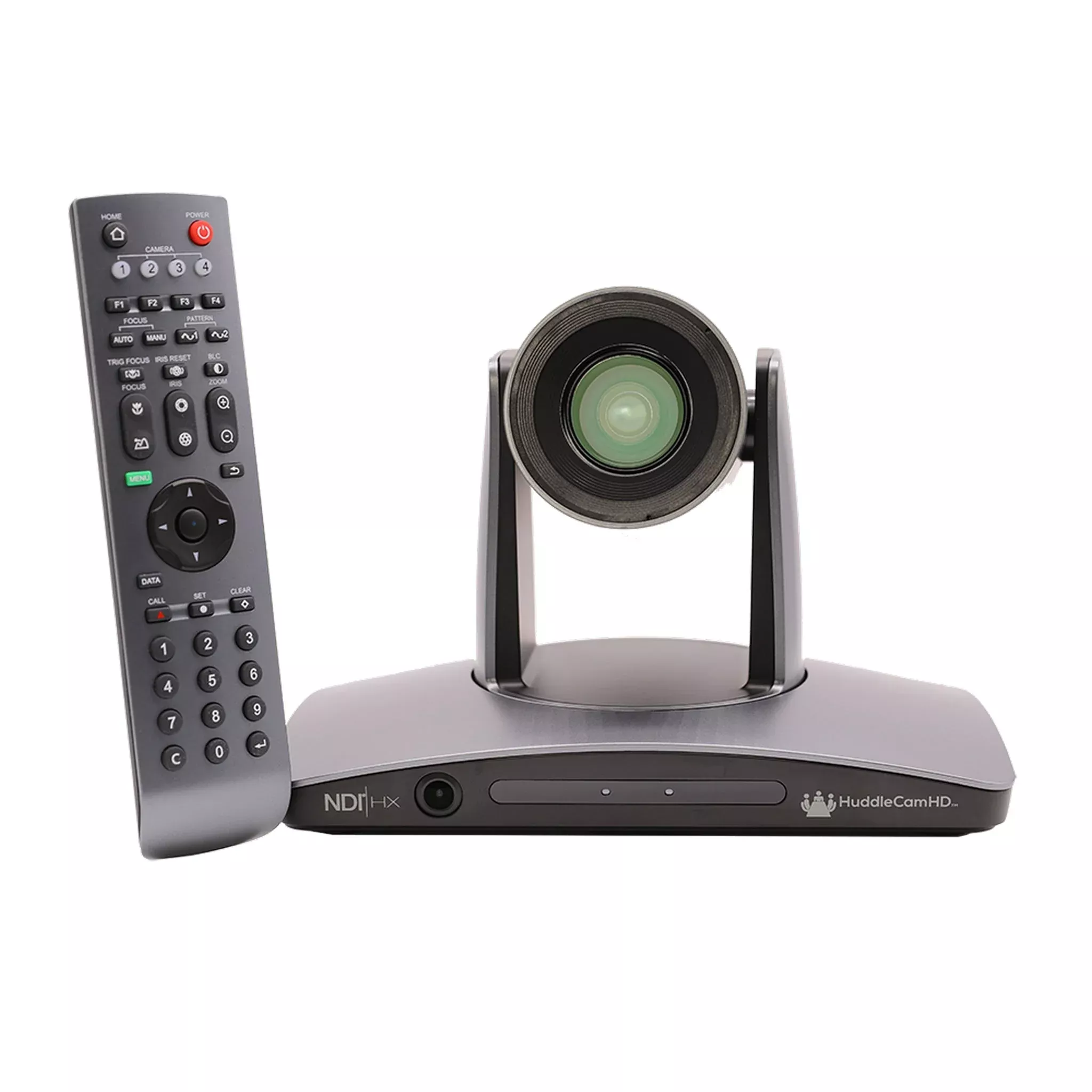

The HuddleCamHD SimplTrack3Auto-Tracking 20X 1080p PTZ Camera simplifies the production ofhigh-quality conferences and lectures by eliminating the need for a cameraoperator. Key features include auto motion tracking up to 55ft, 20X zoom in1080p at 60fps, 270° rotation, and a 59.5° field of view. Connectivity is seamlesswith USB 3.0 and Power over Ethernet (PoE), enabling a dual-sensor camera to bepowered using a single ethernet cable.
Effortless auto-tracking andauto-framing capabilities allow the SimplTrack3 to smoothly switch betweentracking individuals and framing groups, making it perfect for conferences,stage productions, and classrooms. The intelligent technology focuses on thesubject, disregarding distractions, and offers simple toggling and manual PTZcontrol options.
Advanced Zone Management
The Tracking Zone covers theentire area where the subject being tracked might move within the frame,ensuring consistent tracking of presenters or lecturers with flexibility inmovement.
The Preset Zone is a uniquefeature triggering an automated preset when the camera enters a selected area.This could involve switching to another camera, activating stage lighting, orany other preset tailored to enhance the presentation or lecture experience.The SimplTrack3 features 8 preset zones.
The wide-angle reference cameraoffers intelligent camera controls, providing stage awareness and enablingautomatic event coverage.
Customizability
The SimplTrack3 allows forautomation of camera controls, adapting quickly to any workflow requirements.Custom tracking sensitivity settings offer complete customization of zoomlevel, pan/tilt speeds, and automatic operations to suit the presenter’s style.Manual Mode enables operation with the included IR remote, a PTZ camerajoystick controller, or camera control apps.
Set and Forget
For simplicity, the SimplTrack3’sauto-tracking function provides a straightforward setup with a single button.Advanced users can access more intricate features for complex setups, offeringdetailed adjustments and fine-tuning of tracking processes.
Dual-Sensor and Scalability
The dual-sensor system in theSimplTrack3 captures wide-angle and close-up views simultaneously, supportingmultiple video outputs for seamless system integration. Designed for scalabledeployments, it comes with dedicated management software.
Unrivaled Warranties
HuddleCamHD products come withrobust warranties, ensuring high performance from day one and beyond. TheSimplTrack3 includes a 3-year limited parts and labor warranty, showcasing ourcommitment to protecting your investment through repairs or replacements duringthe warranty period.
Key Features
- Automatic tracking capability extends up to 55feet
- Utilizes advanced zone management technology
- Features a 20X zoom in 1080p resolution
- Supports Power over Ethernet (PoE)
- Equipped with a dual-sensor system for enhancedperformance
- Comes with a 3-year warranty for added peace ofmind
Technical Specifications
Video Sensor
(20X) Sony 1/2.8 inch, CMOS,effective pixels: 2.14M
Resolution & Frame Rate
HDMI, SDI: 1080p60 / 50 | USB,NDI|HX: 1080p60, 1080p30, 720p30, 360p30
Field of View
Horizontal 3° ~ 59.5° | Vertical2° ~ 36°
Connections
1x RJ45, 1x HDMI, 1x 3G-SDI, 1xUSB 3.0 Type B, 1x 3.5mm Line level Input, 1x 8-pin Mini DIN RS232 Input andOutput
Min Illumination
0.5 Lux @ (F1.8, AGC ON)
Power Supply
JEITA type (DC IN 12V) / PoE(802.3af)
Working Environment
Indoor
Dimensions
W 9.6” x D 6.1” x H 6.4” (W 243mmx D 157mm H 163mm)
5.7 lbs (2.59 kg)
Warranty
3 Years parts and labor
Compatibility
Windows 7/8/10/11
Mac OS X
Google Meet
Adobe Connect
BlueJeans
Cisco Acano
Cisco Jabber
Cisco WebEX
EasyMeeting.net
Facetime
Fuze
Zoom
Microsoft Teams
GoTo Meeting
Lifesize
Polycom RealPresence
Radivision
Spontania
Skype
Vidyo
VSee
