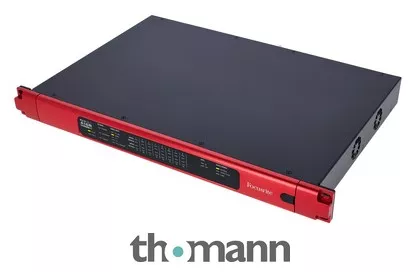

16-Channel AD / DA converter with Dante interface
- 24 Bit / 192 kHz
- 119 dB dynamic range
- Frequency range: 20 – 20,000 Hz (+/- 0.05 dB)
- Dante based remote controllable Audio-over-IP functionality
- 2 Integrated power supply units for redundant power supply
- 2 Network connections for redundant network functionality
- Level control for input and output channels
- Design: 19″/ 1 U
- Dimensions: 482 x 44 x 327 mm
- Weight: 4.53 kg
Connections:
- 4 DB-25 Sub-D connections (16x line input, 16x line output)
- Word clock input and output
- AES / EBU input and output
- 2 Dante network connections
- 2 Connections for power cables
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2020
- Item number505153
- Sales Unit1 piece(s)
- Amount Of Channels 16
- AD Conversion Yes
- DA Conversion Yes
- Max. Resolution Rate in Bits 24 bit
- Max. Sampling Rate in kHz 192 kHz
- S/PDIF Connecor No
- AES/EBU Connector Yes
- ADAT No
- Word clock Yes
- Number of analog inputs 16
- Number of Analog Outputs 16
- Headphone connection No
- Special FeaturesDante
