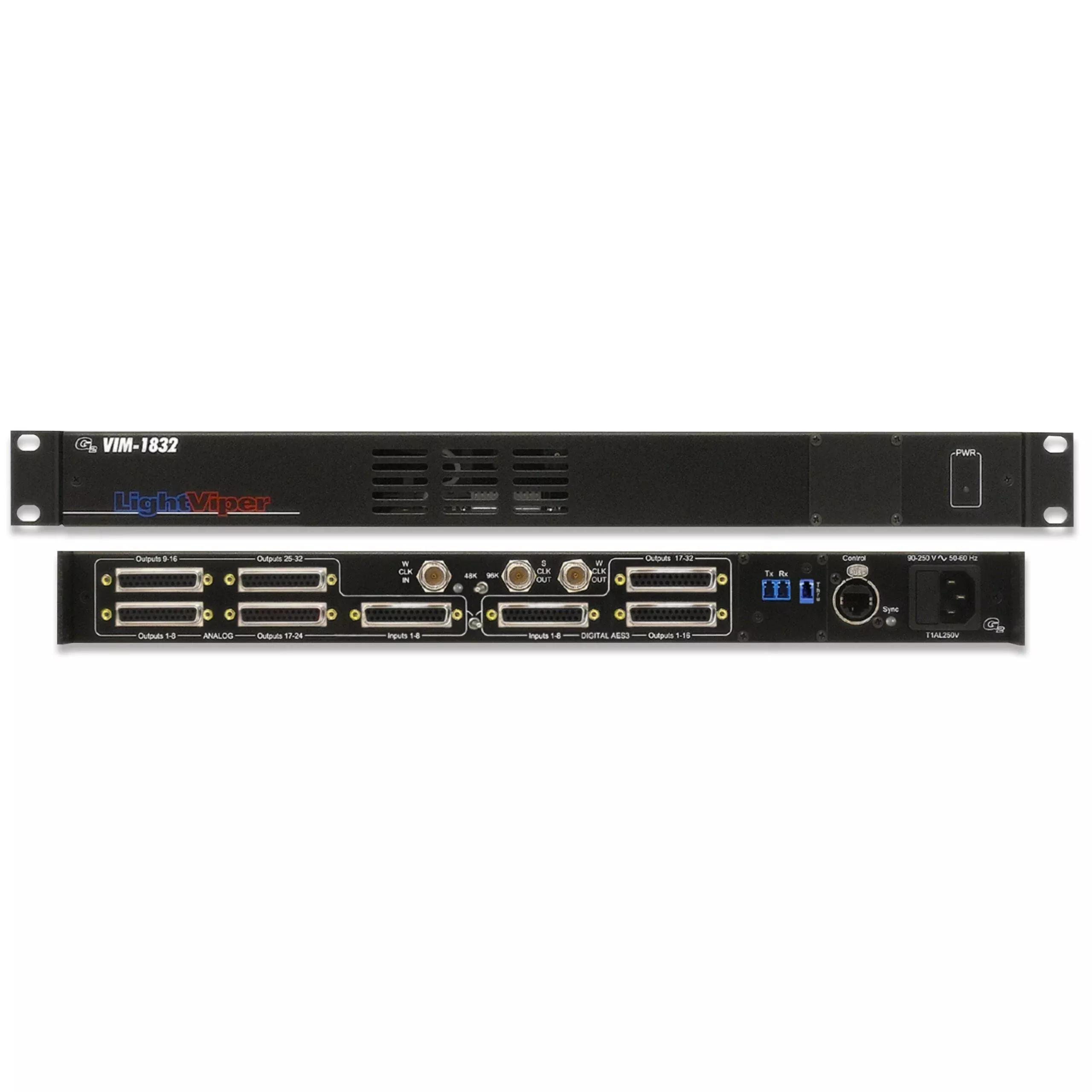

Fiberplex VIM-1832-S-LC LightViper Analog and Digital Output Tail End Unit, 32 Sends/8 Returns
The Fiberplex VIM-1832-S-LC is used in connection with theVRK-1832 (analog) or VIS-4832 (digital) to achieve a 32×8 fiber-optic transportsystem. This VIM-1832 is normally the “tail” end for Stage to FOH or drivesnake applications and the VIM-1032 serves as a split of the 32 incomingchannels for the monitor location or other audio distribution points.
The LightViper VIM-1832 and optional VIM-1032 combine witheither a VRK-1832 (analog) or VIS-4832 (digital) to to create a powerful 32x8audio distribution system. The VIM-1832 features 8 audio inputs which areselectable between analog line level and AES3 digital. The 32 audio outputs ofboth units are both analog line level and AES3 digital and are simultaneouslyavailable.
The VIM-1832 is the clock master in the system. I have theability to generate its own superior quality Word Clock, or alternately acceptan external Word Clock. There can be only one VIM-1832 in a given system. TheVIM-1032 is a clock slave and requires a VIM-1832 to operate. It has clockoutput for synchronizing external equipment and for distribution of clock.
Both the VIM-1832 and VIM-1032 feature a fiber pass throughtransmit connector which provides a freshly driven optical signal which can bedaisy chained to additional VIM-1032 units for audio distribution applications.
The system features a “control” connection which is a TTLdata port which appears on an EtherCon connector. It allows LightViperaccessory devices such as the DMX4o (DMX lighting control) or MD3(RS422/232/MIDI) to be connected to the unit.
Key Features
- Analog and digital output “tail” end unit
- 32 Sends
- 8 Returns
- Fiber-optic pass thru
- Singlemode
- LC fiber connectors
Technical Specifications
Depth
6.50 in
Height
1.77 in
Width
19.02 in
AC Voltage
110 Volts
Regulatory Compliance
RoHS
Product Weight
6 Lbs
ROHS Compliant
Yes
Certifications
CE, UL
Rackmountable
Yes
Operating Distance (Singlemode)
65616.80 ft
Number of Singlemode Inputs
8
Number of Singlemode Outputs
32
Operating Temperature (Maximum)
122 Degrees F
Operating Temperature (Minimum)
32 Degrees F
Current Draw
0.46 Amps
AC Voltage (Minimum)
90 Volts
AC Voltage (Maximum)
250 Volts
Fiber Optic Connector Type – Other
Fiber Optic Signals Supported – Audio
Warranty
1 Year
