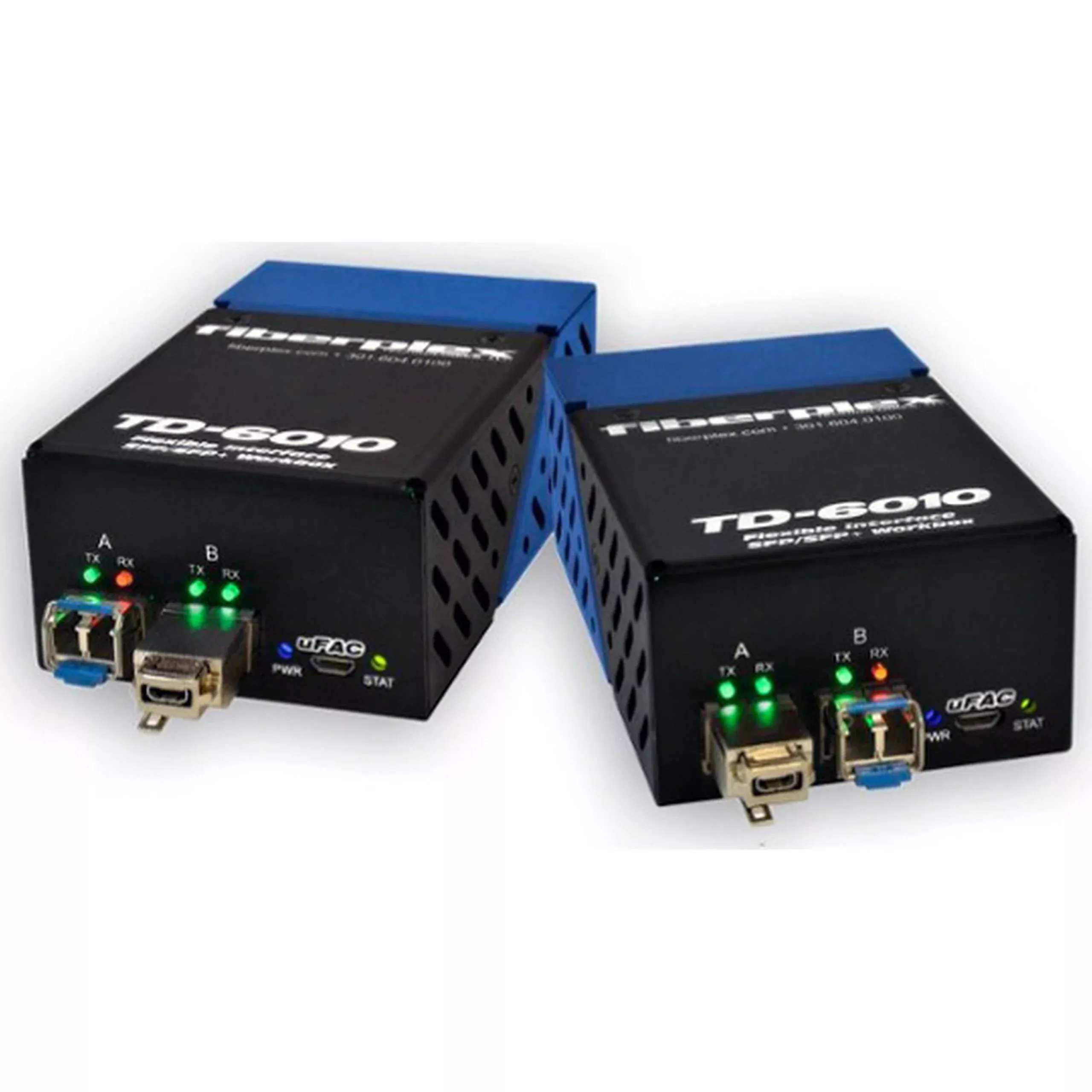

Fiberplex TKIT-HDMI-M TD-6010 HDMI Video to Multimode Optical Conversion, Pair
The FiberPlex Technologies `TKIT’ bundles takes theincredible flexibility of the TD-6010 12.5 Gbps workbox and bundles it with aset of application specific SFP modules to create a simple, easy to ordersolution for your specific application. Includes AC Power Adapters. All TKITboxes come equipped with a USB 2.0 Micro-B Connection for monitor control. Itis a USB port intended to monitor and control the installed SFP. It is forfuture functionality only, Fiberplex currently does not have software availablefor this.
All fiber connectors are LC duplex and all TKIT kits comewith all SFPs needed. All TKITs listed have HDBNC connections where applicable.HDMI D (micro-HDMI) on HDMI connections.
Key Features
- SMPTE 424M, 292M and 259M compliant
- Supported format: 25/625, 720p/1080i (50/59.94/60Hz), 1080p(23.98/24/15/29.97/30/50/59.94/60Hz)
- HDMI/DVI Input: 24 bit (3×8 bits), RGB 4:4:4, YCbCr 4:2:2,YCbCr 4:4:4, BW = 150Mhz, RGB Range (Full/SMPTE), Up to 8 channel audiode-embedding (PCM), HDMI 1.4 Type D connector, HDMI Type D plug with retention,HDCP supported
- Control via serial interface including: Voltage &Temperature Monitoring
- HDMI/DVI interface configuration, EDID reading, Audiomapping, Module Information
Technical Specifications
Storage Temperature (Degrees C)
-40 – 85°C
Operating Temperature (Degrees C)
0 – 50°C
Interface
Full speed USB 2.0 compliant MicroB Device
Optical Modules
2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots,data rate 0 – 12.5 gigabits
