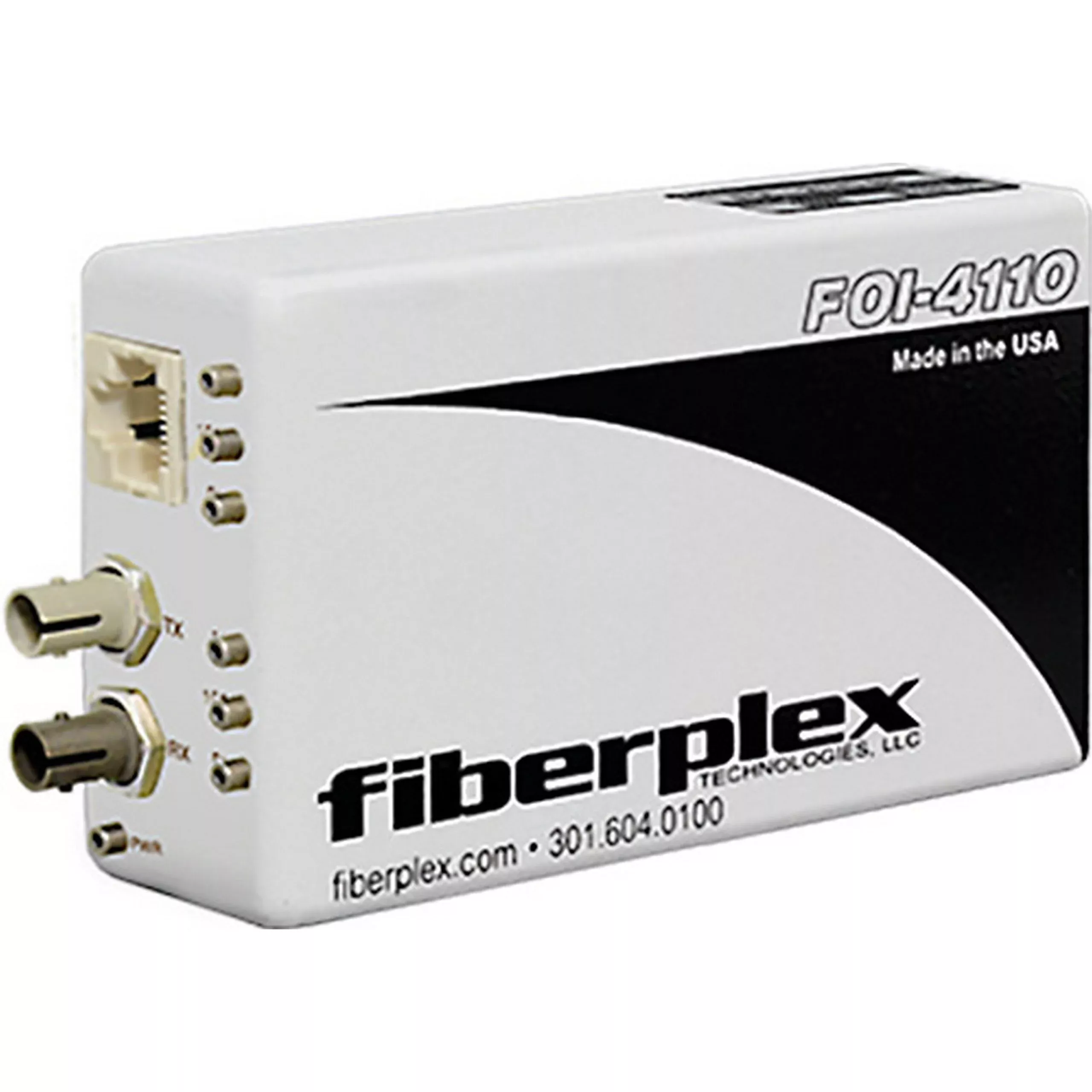

Fiberplex FOI-4110-W-ST Isolator/Media Converter
The Fiberplex FOI-4110 is a flexible solution for theconverting 10BASE-T to 10BASE-FL, and 100BASE-TX to 100BASE-SX or just plainextending your copper Ethernet signal. Auto MDI/MDIx enables users to useeither a straight-through or crossover cable for any LAN configurations andwill adjust polarity +/- and TX/RX automatically. The multimode variant of theFOI-4110 uses 820nm optics as a low-cost solution and provides backwardcompatibility with legacy devices that have a 10BASE-FL interface.
The units will have an automatic MDI/MDIX switch overcapability that allow users to use either a straight or crossover cable for allLAN configurations. This eases the installation process for simple plug andplay.
The units can be used in areas of high electrical noise orin and out of RF shielded enclosures. The fiber optic cable is not susceptibleto interference caused by impulse noise, crosstalk, or EMI. FiberPlexrecommends “R” units for high security applications because they have addedfiltering and shielding for RFI suppression.
FOI version units can be mounted in several redundantpowering chassis; rack and wall mount options including Tempest and NEMAalternatives.
Key Features
- Extends 10/100BASE-TX Ethernet up to 1.2 miles (2 km) overmultimode fiber and 12.4 miles (20 km) over singlemode fiber
- Optical interface options include ST, SC, and FC
- Compliant with IEEE 802.3, TIA/EIA-785
- Optically compatible with Ethernet optical standards
- Rugged metal enclosures with RFI shielding
Technical Specifications
Power Requirement
Voltage Range
7 9 12 V
Supply Current
400 – mA
Environmental
Storage Temperature
-40 – 85 Degrees C
Operating Temperature
0 – 50 Degrees C
Data Rate
10BASE-T 10 Mbps
100BASE-TX 100 Mbps
Line Encoding
10BASE-T Manchester
100BASE-TX MLT3 (Multi Level Transition 3)
Interface Connector
RJ-45
Case Dimensions/Weight
4.5 in (114 mm) 1.453 in (37 mm) 2.562 in (65 mm) 2 lb (0.9kg)
Item Includes
1x Fiberplex FOI-4110-W-ST IsolatorMedia Converter for 10 /100Base-T Ethernet / 100Base-FX & Multimode ST Optics
