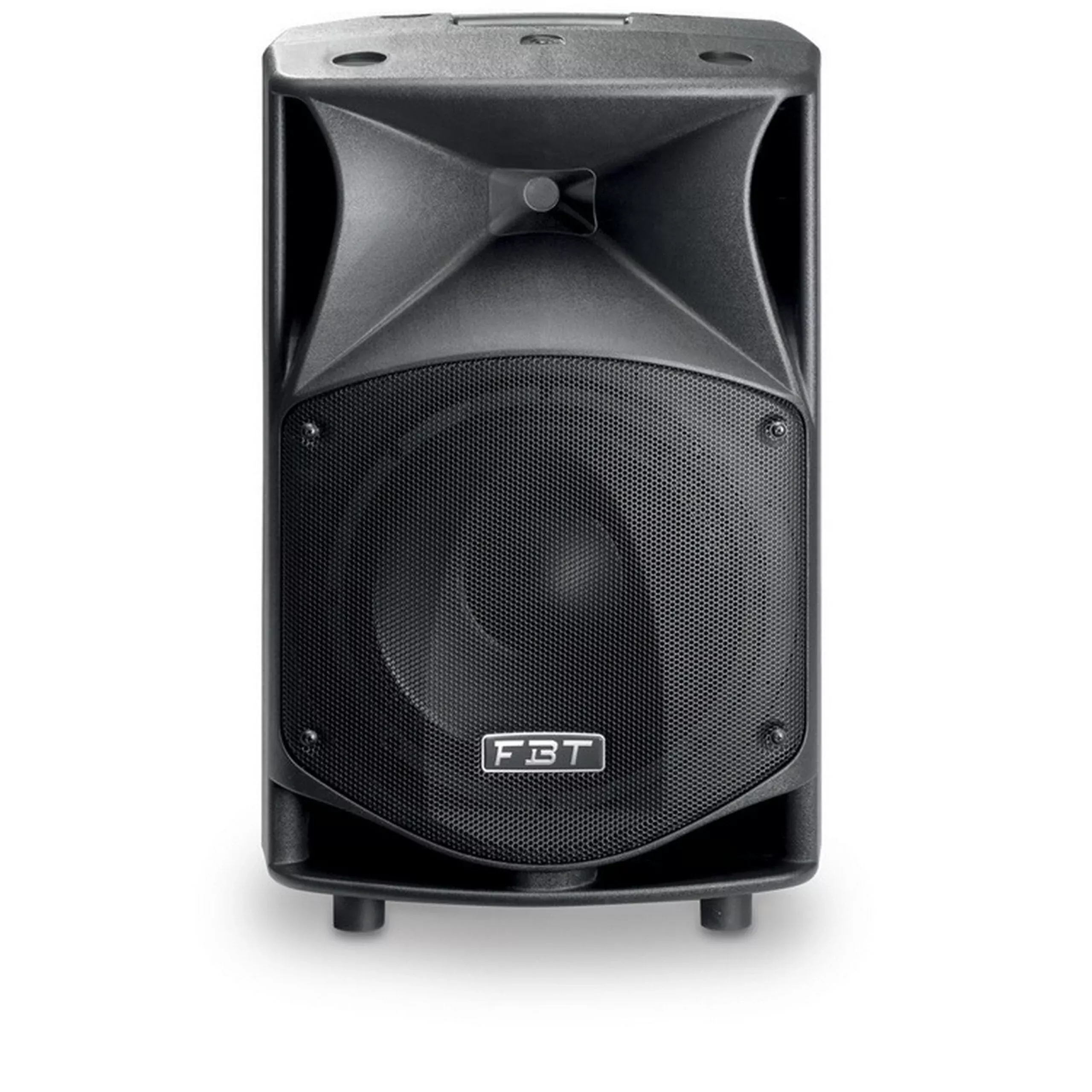

FBT JMaxX 110A 10-Inch Processed 2-Way Active Loudspeaker
The new FBT JMaxX 110A combines ease of use and versatilityfor many portable or installed sound applications: musicians, DJs, AVLcontractors, rental sound reinforcement, corporate events, houses of worship,bars and clubs.
With its eye-catching gas-injected forms designed tovirtually eliminate undesired enclosure resonance and reinforce strong lowfrequency performance, the 10-inch JMaxX 110A is equipped with FBT’s latest 90°x 60° HF horn design which delivers improved projection, accuracy, anddispersion of the mid and high frequencies.
Providing a myriad of possibilities for bands, DJs and soloartists, as well as for permanent installations, the JMaxX 110A is actuallyfour loudspeakers in one. Derived from a decade of experience of portable soundreinforcement, the carefully tailored equalization presets offer highlyintelligible response for vocals and floor monitoring; slightly boostedresponse in lounge bar applications; punchy and forward sound for DJs and nightvenues; and a general-purpose EQ setting that mirrors the original and familiarFBTMaxX voicing.
The JMaxX 110A features FBT’s latest generation lightweight700W + 200W Class D power amplifier with universal switch mode power supply,delivering abundant power and headroom to reproduce even the largest transientswithout distortion.
XLR inputs and outputs, volume control, the EQ presets andfilters, and ground lift switch are all conveniently located on a clearly laidout rear panel, making loudspeaker setup and operation intuitive andconsistently repeatable.
The JMaxX versatility is further underscored by the manymounting and fixing options that the ergonomically styled cabinets provide.Mounting in fixed installations is made easy using the M10 suspension points orwall bracket flange plates, while portable use is facilitated by the built-in35mm pole mount socket.
There’s no need for separate stage monitors, as JMaxX’scabinet profiles are designed with 12°, 40°, and 55° wedge angles, and whenused with the specific floor monitoring EQ presets, will ensure that performershear themselves with ultimate clarity.
Key Features
- 10” LF woofer and a 1” exit throat HF compression driverwith 1.4” voice coil
- 700W RMS Low Frequency AND200W RMS for High Frequency, Class D power amplifiers with switch modepower supply
- DSP with 4-EQ presets Control panel with: XLR IN and XLRLINK, Volume, EQ presets, HP filter, GND LFT switch
- 2 x M10 suspension points, 35mm (1.3/8”) top-hat speakerstand socket, wall bracket mount flange plate
- 90°H x 60°V constant directivity horn Stage monitor anglingfacility with 12°, 40° or 55° taper
Technical Specifications
Configuration
2 Way
Frequency response
58Hz – 20kHz
Low frequency woofer
10” (2” VC)
High frequency driver
1” (1” VC)
Maximum SPL cont/peak
129.5 dB
Dispersion
90 x 60
Input connector
XLR + 6.3mm Jack
Net Weight
11kg
Built-in amplifier LF/HF
700w/200w
Power cord
5m IEC
