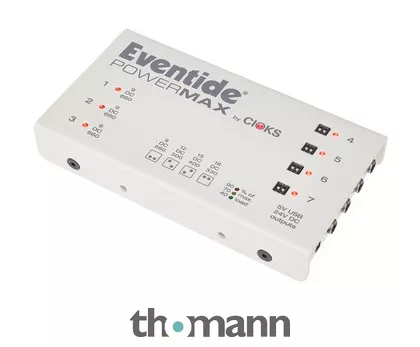

Multi Power Supply Unit
- 7 isolated outputs with selectable voltages of 9, 12, 15 or 18 V
- 3 outputs with high-current output of 660 mA at 9 V
- 4 outputs with switchable output: 9 V at 660 mA / 12 V at 500 mA / 15 V at 400 mA / 18 V at 330 mA
- Powers multiple pedals with high power requirements from Eventide, Strymon and other manufacturers
- 24 V DC AUX output for PowerMINI expansion
- USB port for charging a smartphone or tablet
- Worldwide operation possible with mains voltages of 100, 120 or 230 V
- Minimal noise
- No hum from the mains transformer
- Full LED status display for each connection
- Extremely flat design with a housing height of only 25 mm
- 13 flex cables included, 5 of them for Eventide pedals
- Optional CIOKS GRIP (patent pending) for easy attachment to Pedaltrain products
- Compatible with products from Pedaltrain and Temple Audio Design (Templeboard)
- Power supply: 85 to 265 V AC universal
- Connections 1 to 7: 9 V DC / 660 mA or 12 V DC / 500 mA or 15 V DC / 400 mA or 18 V DC / 330 mA
- USB connection: 5 V DC / 1,000 mA
- Total output power: Max. 48 W
- Dimensions: 160 x 88 x 25 mm (without rubber feet)
- Weight: 460 g
- Includes fixing screws and template
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2020
- Item number498726
- Sales Unit1 piece(s)
- DC/AC DC
- Output current in mA 660 mA
- 9 V Yes
- 12 V Yes
- 18 V Yes
- Secondary voltage Yes
- Multi-output power supply Yes
