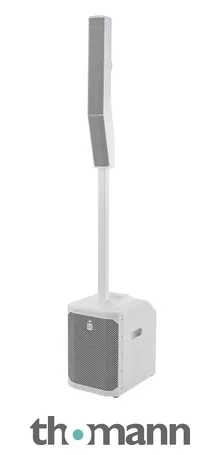

Portable Active Column Speaker System
- With DSP functions and Bluetooth streaming
- 12″ Bass drivers and 8 x 3.5″ high-frequency drivers
- Easy and intuitive installation thanks to the spacer bar with integrated cabling and magnetic locking
- The EV QuickSmart Mobile App configures, controls and monitors up to 6 Evolve systems
- Using QuickSmart Link, two EVOLVE 50M systems can be connected via a network cable, which doubles the number of mic / line inputs and the entire band can be mixed using the QuickSmart Mobile App
- The QuickSmartDSP provides high-class processing via one-button operation and an LC display
- DSP functions: 4 presets (Music, Live, Speech, Club)
- Multi-band EQ
- 5 User presets
- Phantom power
- Input level
- Master level
- Frequency response: 43 – 20000 Hz@-3dB / 37 – 20000 Hz @-10dB
- Maximum level: 127 dB
- Coverage pattern (HxV): 120° x 40°
- Power: 1000 watts
- Crossover frequency at 200 kHz
- 15 V phantom power
- Material: Bass made of 15mm plywood, column made of composite, spacer bar made of aluminum
- Incl. travel bag for column and distance rod
- Dimensions bass (H x W x D): 530 x 345 x 471 mm
- Dimensions column (H x W x D): 825 x 102 x 172 mm
- Dimensions distance rod (H x W x D): 929 x 48.5 x 55 mm
- Setup height: 2045 mm
- Weight bass: 20.3 kg
- Weight column: 4.7 kg
- Weight distance rod: 1.25 kg
- Colour: White
Inputs:
- 4x XLR / jack combo socket Mic/Line
- 2x XLR / jack combo socket stereo line
- 1x 3.5 mm mini jack
- 1 x Stereo RCA
- 1x 6.3 mm jack Hi-Z instrument input
- 1x 6.3 mm jack foot switch
Outputs
- 1 x XLR Mix
- 1 x XLR Aux
Suitable accessories not included
- Cover for subwoofer: Art. 423713
- Transport case: Art. 423714
- Short distance rod: Art. 443901
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2021
- Item number511151
- Sales Unit1 piece(s)
- more than 150 people Yes
- more than 300 people No
- Incl. Mixer Yes
- Incl. Subwoofer Yes
- Active Speaker Yes
- Line Array / Column Yes
- Width345 mm
- Depth471 mm
- Power (Manufacturers Specs)1000 W
- Height2284 mm
- Sound Pressure in dB127 dB
- Number of HT-Speaker8
- Weight26,25 kg
- HT Speaker in Inch3,5
- Sub Woofer1×12
- Number of Midrange Speaker0
- Speakers (Row)8×3,5
- Midrange Speaker in InchNo
- Power (Manufacturer Info)1000 W
- Number of Bass Speaker1
- Bass Speaker in Inch12″
- Inputs simultaneously3
- Mic Preamp2
- Number of Ways2-Way
- ColourWhite
- App SupportYes
- Line OutXLR
- Bluetooth PlayYes
- Coverinclusive
- Housing MaterialWood
- Construction TypeColumn
- Using forPA
- Stand FlangeNo
- FlyableNo
- Analog Inputs3
- Microphone Input4
- Line InputYes
- EQ per ChannelYes
- Media PlayerNo
- Voice AssistantNo
- Remote ControlBT
- True Wireless StereoYes
- Wireless Mic Handhleld / HeadsetNo
- EffectNo
- Beam Angle (Hor)120 °
- Vertical Beam Angle70 °
- Frequency Range (-10dB) from43 Hz
- Frequency Range (-10dB) to20000 Hz
- Low CutYes
- Ground LiftNo
