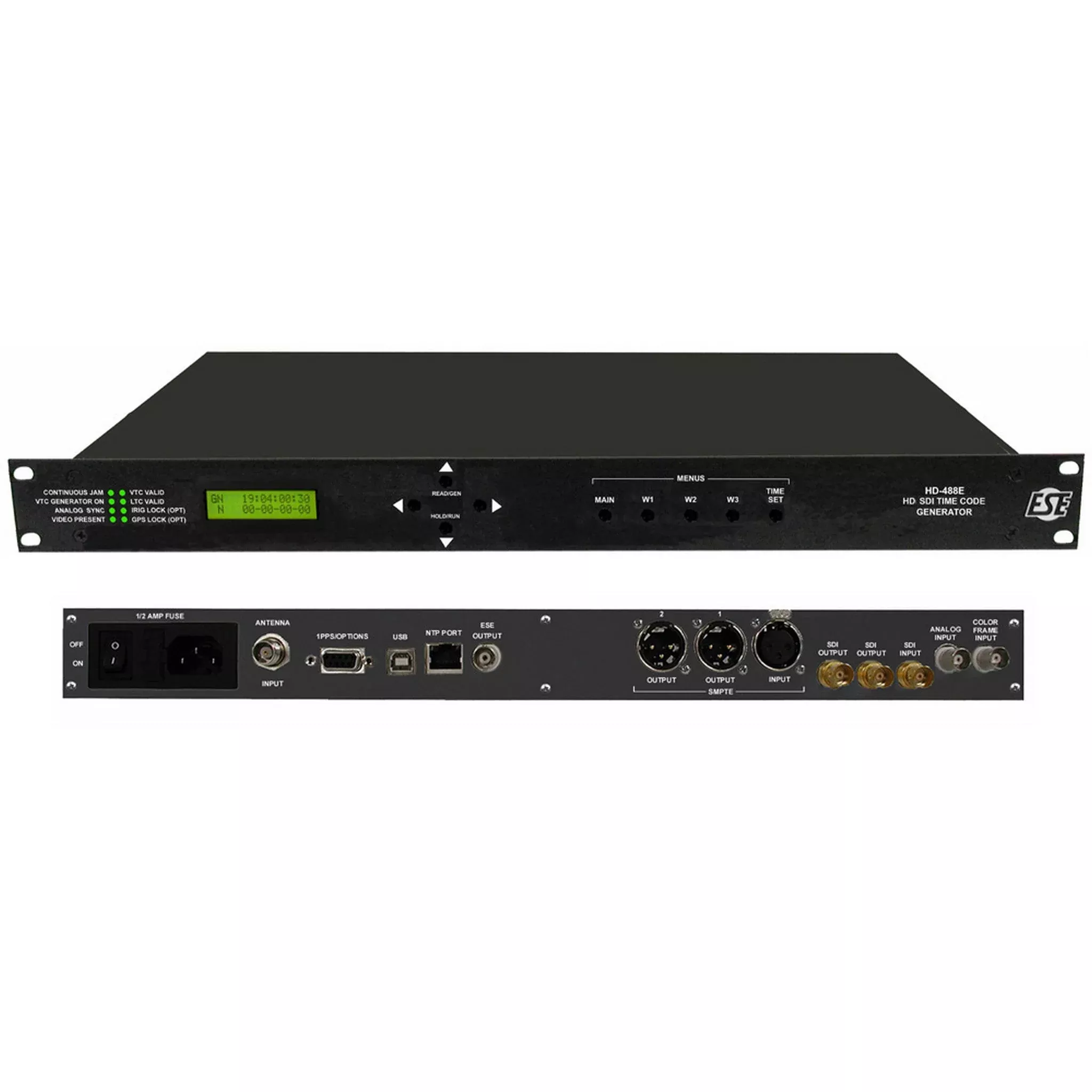

ESE HD-488E/SD HD/SD SDI Time Code Reader/Generator/Inserter
The HD-488E/SD is a Time Code Reader, Generator and Inserterfor HD (High Definition) or SD (Standard Definition) Serial Digital Interface(SDI) video. Linear Time Code (LTC), Digital Vertical Interval Time Code(D-VITC) and RP-188 Time Code are both read and generated by the HD-488E/SD.The unit accepts a multitude of HD formats. In SD (Standard Definition) modethe unit will accept 4:2:2 (525 and 625 line) digital video signals. Theinserter mode provides the ability to superimpose time and/or user bits ontovideo with alphanumeric characters. As many as thirty characters of text mayalso be superimposed onto the video. Flexibility is also provided to the user,allowing for selection of the information to be displayed (time, time and userbits or text) on up to three different windows. The three windows areindependent of each other and may be blanked.
The HD-488E/SD is an enhanced version of the HD-488/SD. Newfeatures include selectable color fonts, closed-caption insertion of Time Code,RP-188 Time Code functionality in both HD and SD modes, selectable onscreendate formats and front-panel entry of user text data.
Key Features
- Auto-detects HD & SD formats
- Accepts 4:2:2 (525 & 625 line) & Multiple HD Formats
- Generates/Reads/Inserts LTC/DVITC/RP188 Time Code
- Generates SMPTE Time Code in Closed Caption Display
- Dual LTC Output
- USB Setup Interface
- User Friendly Control
- Time Zone Offset
- LCD Setup/Status Display
- Seven Selectable Font Colors
- Selectable Onscreen Date Formats (YMD, DMY, MDY)
- Front Panel User Text Entry
- Universal Power Supply (90-264 VAC)
Technical Specifications
DC DC Operation
Requires the unit to be powered from a DC sourceexclusively, typically +12 to +35 VDC.
ESE
ESE Time Code Input. Cannot be ordered with the IRIG input.
GPS
GPS Receiver. An internal GPS receiver and LCD menusynchronization option are added.
IRIG
IRIG-A/B/G input plus IRIG-B Analog & TTL outputs.Cannot be ordered with the ESE Time Code input.
NTP
NTP Time Server. NTP Time Server output & NetworkControl input via Ethernet (10/100Base-T, RJ-45).
NTP-C
NTP Client. NTP Clients synchronize with an NTP server.
OCXO
OCXO: Provides an Oven Controlled Crystal Oscillator.
RS
RS-232C output of GPS receiver. Motorola Binary Format,Position/Status/Data Message once per second. Available with GPS option only.
UL
“UL” Approved Power Supply: The unit is supplied with aUL/CSA approved wall mount power supply.
