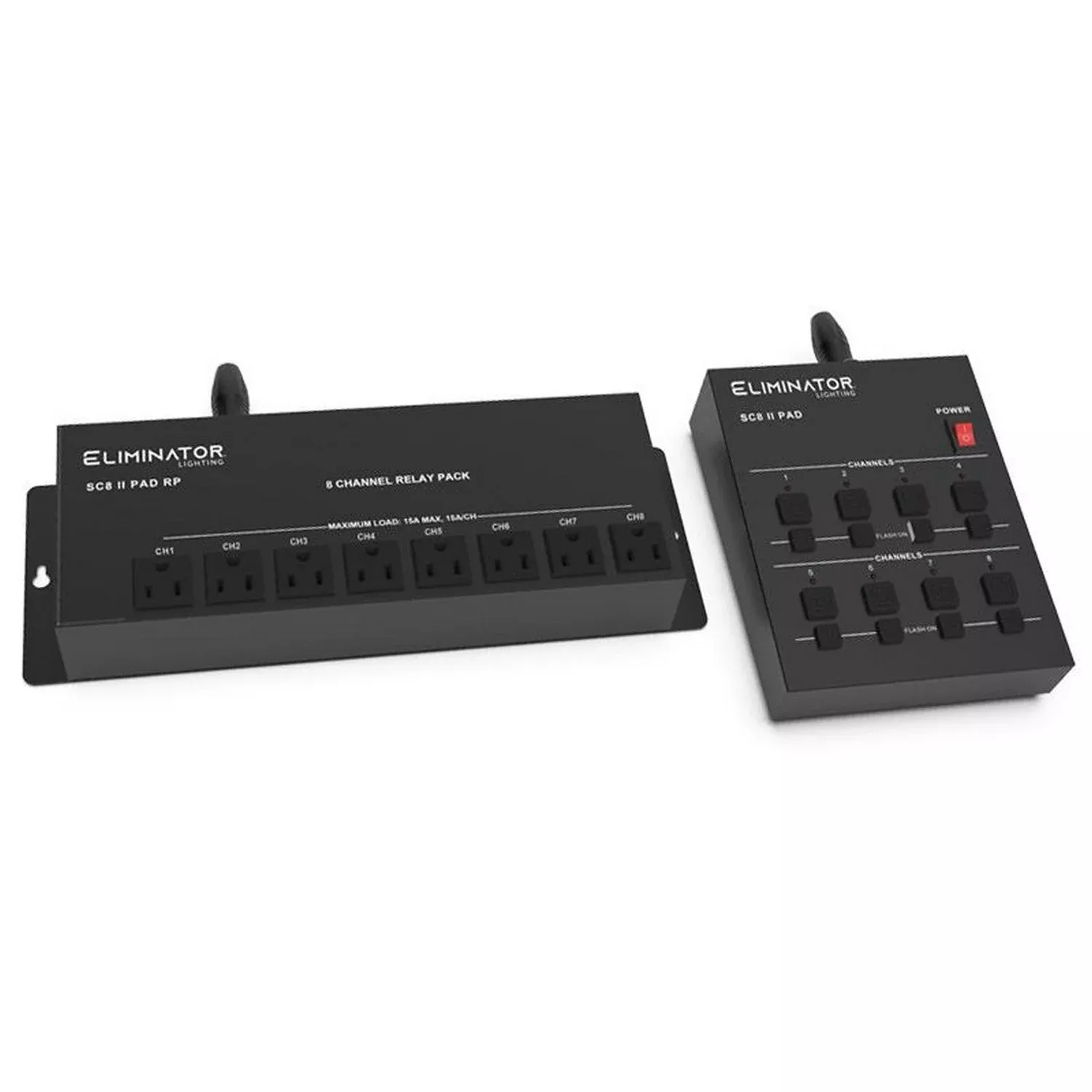

Take Your Event to the Next Level with the EliminatorLighting SC8 II Pad System 8-Channel Analog Lighting Controller
Looking to create a memorable experience at your next event?Look no further than the Eliminator Lighting SC8 II Pad system. This analoglighting controller is perfect for setting the tone and ambiance of yourgathering. Designed for non-DMX lighting, the SC8 II Pad is easy to use andeliminates messy wires, allowing you to focus on the show.
The SC8 II Pad boasts an intuitive interface with 8individual channel on/off toggle switches, including a flash option for eachchannel, giving you complete control. Its durable construction ensures that itcan withstand even the longest performances, while its easy setup and includedaccessories make it ready to use straight out of the box.
With features like rubber feet for desk use, AC/DC poweroptions, and a master on/off power switch, this controller system is amust-have for seamless lighting management. Order the Eliminator Lighting SC8II Pad system today to elevate your setup and enhance your performance.
Key Features
- Elevate your event with the Eliminator Lighting SC8 II Padsystem Analog Lighting Controller that turns ordinary gatherings intoextraordinary experiences
- Designed for non-DMX lighting, this system allowsyou to effortlessly set the ambiance of your party or performance. Say goodbyeto tangled cords and messy wires, allowing you to focus entirely on your show.
- 8x Individual channel On / Off toggle switches
- 8x individual flash switches
- Control Pad AC or DC powered with IEC and USB power inputs
- Master On/Off Power Switch
- 3-pin XLR Data Output
- Rubber Feet for Desk Use
- 8x Edison Power Inputs
- 15 AMPS Total Power Capacity (Per Relay Pack)
- 3-pin XLR Data In/Out to connect to additional relay pack
- Circuit Breaker Reset
- M10 Mounting Thread for clamp
- Safety Loop
Technical Specifications
System Includes
1x SC8 II Pad controller
1x SC8 II PAD RP (Relay Pack)
1x 25ft. 3-pin DMX Cable
1x 4ft. (1.2M) IEC Power Cord
Electrical
Power Input
SC8 II Pad: AC 100-240V, 50/60Hz
SC8 II Pad RP: AC 100-120V, 60Hz
Power Consumption
SC8 II Pad: AC 120V, 60Hz; 350mA; 20W
AC 230v, 50Hz; 180mA; 21W
SC8 II Pad RP: AC 100V, 60Hz; 15A; 1500W
AC 120V, 60Hz; 15A; 1800W
Dimensions
SC8 II Pad – 7.75” x 5.9” x 2.25” / 197x150x57.9mm
SC8 II Pad RP – 13.5” x 5” x 2” / 343x128x53.2mm
Weight
5 lbs. / 2.37 kgs.
Approvals / Ratings
IP20
