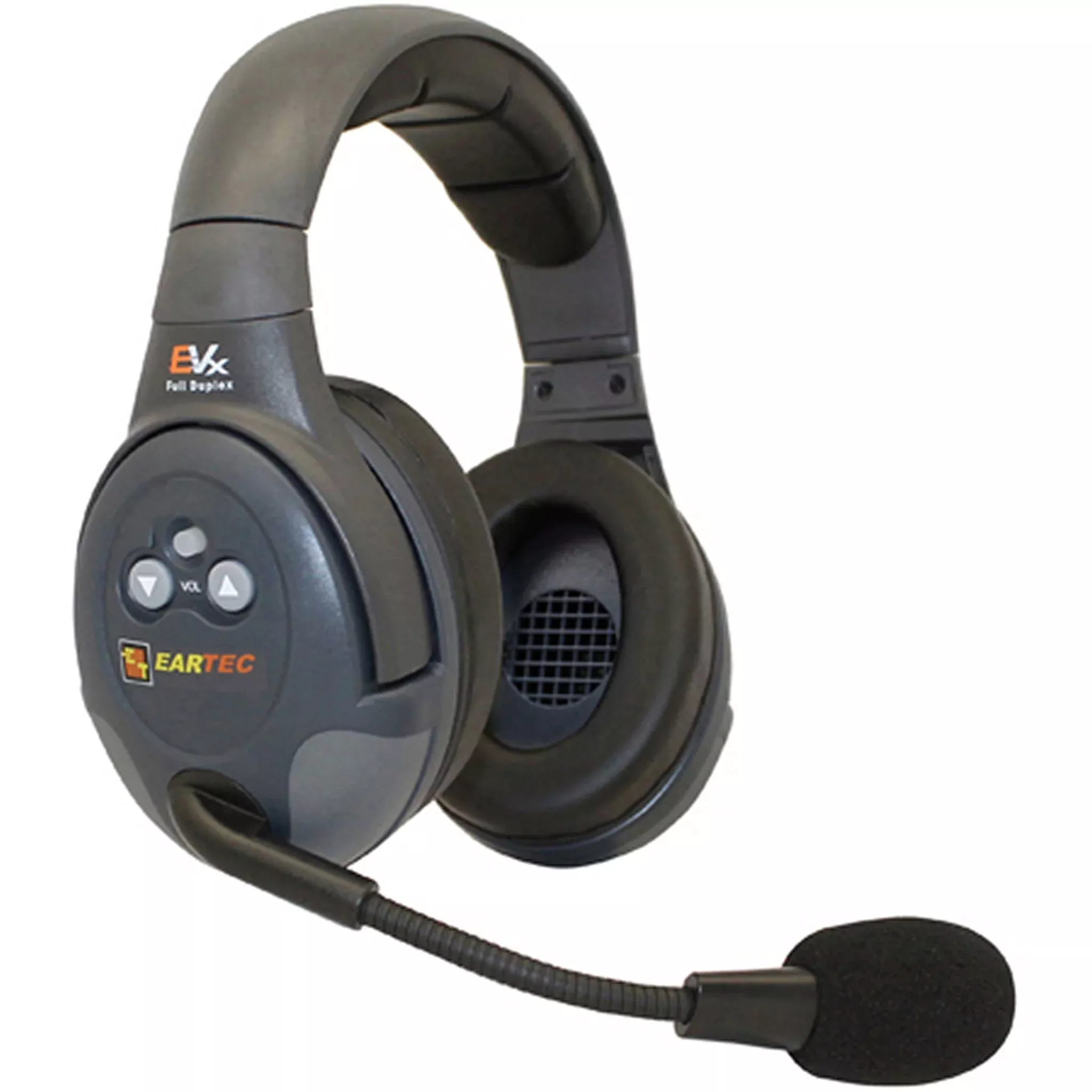

Eartec EVADE EVXDR Full Duplex Wireless Intercom Dual Speaker Main Headset
Includes 1- EVADE Double Main Headset with Battery No Charger
EVADE are a new generation of fullduplex team intercoms designed for professional crews that require crystalclear, hands free communication. A complete EVADE system allows up to nine usersto talk simultaneously within a 400-yard range enhancing coordination,productivity, and safety. These EVADE wireless headsets are engineered with asingle speaker that can be worn on left or right leaving the one ear free. Theyfeature “All in One” Light Industrial design including deluxe padding alongwith sleek fully adjustable headband that provide outstanding comfort andrugged durability. To operate the system simply install the lithium polymerbatteries (included), turn the headsets “ON” and talk!
EVADE headsets utilize FrequencyHopping technology which means they automatically switch channels in order tocircumvent interference. They do not require wires, belt packs, or even a basestation, instead a specialty “MAIN” headset relays the digital signals of up toeight “Remote” units. All Evade Single also include Eartec’s “Auto Mute” micboom that swivels 270 degrees to be worn on either left or right and cuts offthe headset gain when set to the UP position. The headsets are field programmableand expandable to accommodate your growing needs.
Key Features
- Excellent performance – Range upto 1/4 mile
- Radio installed inside earcup, nowires or beltpacks
- Li-Poly Batteries – Providecontinuous 8 hr operation and are field replaceable
- Auto Mute Boom – Mute when in UPposition
- Volume Control – Simple up / downpush button adjustment
- Sealed for use outdoors ininclement conditions
- Light Industrial Design – Wearcomfortably for an 8 hour work shift
- Field Programmable – Start smalland add to your system as needed
Technical Specifications
Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbIt’s
RF Accessing
Time Division Multiple Access(TDMA)
Power Supply
Rechargeable Li-polymer Battery @3.7v/1000mAH
RF Output Power
80mw
Operating Temperature
0 – +50º C
Operating Relative HumidityRange
30% – 90%
Operation Current
110mA
Operation Time
8h
Range
350m (open field)
