Eartec EP3CYB E-PAK 3-Person Cyber Headset System
The E-Pak compact full duplex transceiver provides handsfree, simultaneous talk communication and also includes a second RF module thatallows use of lightweight wireless headsets.
These lightweight, digital transceivers weigh only 2.5 oz.and can be worn tucked inside a pocket or clipped to clothing. To operatesimply snap in a charged Li-poly battery (included), turn the units “ON” andpair with headset. All radios in a system automatically connect providing anopen line talking pattern for up to nine users within a 300-yard range.
Frequency Hopping is the name of the specialty wirelessprotocol utilized by all E-Pak systems to dodge or circumventinterference.Since they only transmiton frequencies that are clear multiple E-Pak systems can easily work in harmonyin the same venue and will not interfere with other wireless equipment.
E-Pak feature field programmable circuity so smaller systemsare easily expandable.
Key Features
- 3-Person Headset System
- Connects wirelessly to E-Pak
- Discreet & bone conduction
- Leaves ears free
- IP 65 Rated – Water Resistant
- Volume adjustment located on mic capsule
- A Mute switch conveniently silences the microphone signalwhenever necessary.
- Two pin wired headset jack built into radio chassis.
- Wired style headsets optional.

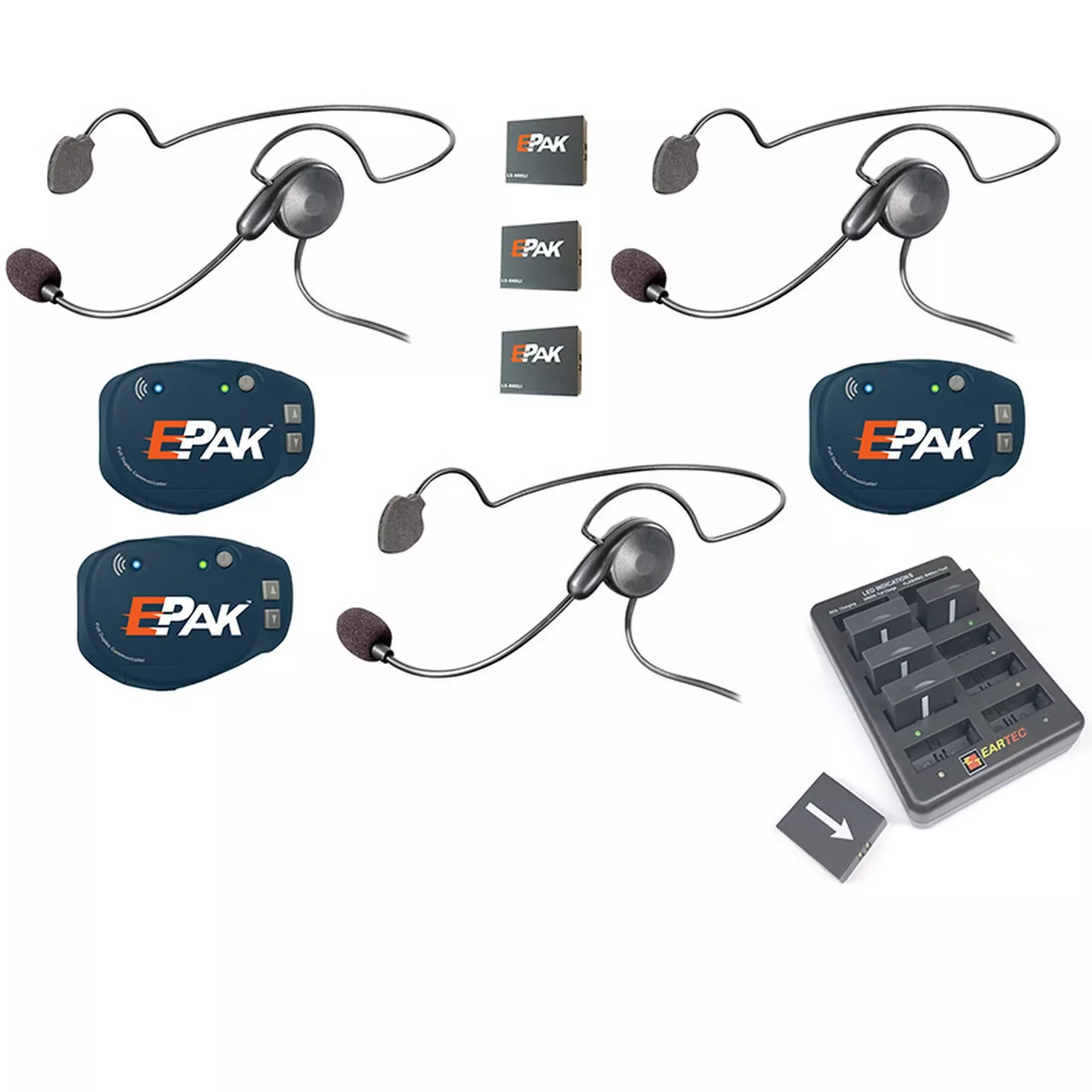

- 1- E-PAK MAIN Transmitter 1- E-PAK REMOTE Transmitter 2-Cyber wired plug-in headsets 1- 2-Port Charger w/ Adpater 2X Lithium-PolymerBatteries 1- Small Soft Padded Case
Technical Specifications
Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbIt’s
RF Accessing
Time Division Multiple Access (TDMA)
Power Supply
Rechargeable Li-polymer Battery @ 3.7v/800mAH
RF Output Power
80mw
Operating Temperature
0 – +50 Degrees C
Operating Relative Humidity Range
30% – 90%
Operation Current
110mA
Operation Time
6h
Range
300 yards in open space
