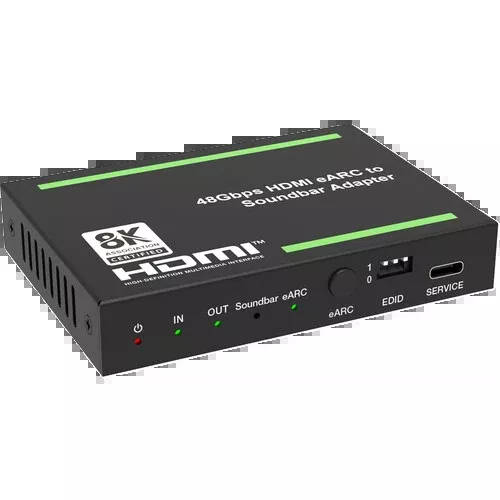

DVDO 8K HDMI 2.1 Audio Extractor with eARC for Soundbars
The DVDO-AudioE-3 is an 8K HDMI 2.1 audio extractor that de-embeds audio from an HDMI source or a TV’s ARC/eARC channel and outputs it over HDMI to a soundbar. It addresses a common installation gap: getting full-quality audio from newer-generation TVs to soundbars, including Dolby Atmos and DTS:X delivery from an eARC TV to a Sonos Arc, Beam, or other eARC soundbar.
HDMI 2.1 and HDCP 2.3 compliance brings 48Gbps FRL bandwidth with video pass-through up to 8K60 4:2:0 12-bit or 4K120 4:4:4 12-bit, plus VRR, ALLM, QMS, QFT, and SBTM. HDR10, HDR10+, Dolby Vision, and HLG pass through untouched, while audio support extends to LPCM 7.1, Dolby TrueHD, Atmos, DTS-HD Master Audio, and DTS:X. CEC control and volume commands from the TV reach the source and sound system, and the compact metal enclosure simplifies placement.
Key Features
- HDMI 2.1 and HDCP 2.3 compliant with 48Gbps FRL bandwidth
- Video pass-through up to 8K60 4:2:0 12-bit or 4K120 4:4:4 12-bit
- De-embeds HDMI source or TV ARC/eARC audio to a soundbar HDMI output
- Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio support
- HDR10, HDR10+, Dolby Vision, and HLG pass-through
- CEC control and TV volume commands to the source and sound system
- Compact metal housing with advanced EDID management
Specifications
- HDMI Compliance: HDMI 2.1
- HDCP Compliance: HDCP 2.3
- Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
- Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- Audio Latency: No Latency
- Video Latency: No Latency
- Color Depth: 8/10/12bit
- Color Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
- Audio Formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- Input: 1 × Source IN [HDMI Type A, 19-pin female]
- Output 1 × TV(eARC) OUT [HDMI Type A, 19-pin female]
- 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female]
- Control: 1 × SERVICE [USB Type C, Update port]
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 95mm [W] × 68mm [D] × 18mm [H]
- Weight: 178g
- Power Supply: Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 4.13W (Max)
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- StorageTemperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20~90% RH (non-condensing)
- TECHNICAL
- CONNECTION
- MECHANICAL
What’s Included
- DVDO 8K HDMI 2.1 Audio Extractor with eARC for Soundbars
- 5 VDC, 1A Multinational Power Supply
- Warranty: Limited 3-Year Manufacturer Warranty
