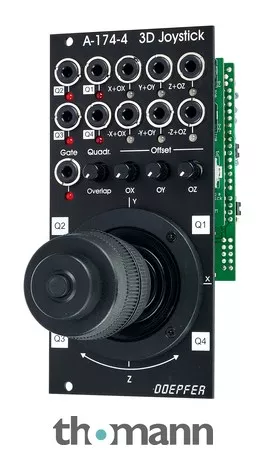

Eurorack Module
- Vintage Edition with black front panel
- Joystick with X-/Y-axis
- Rotation function (Z-axis) and gate button
- X-, Y- and Z-axis self-resetting via spring mechanism
- CV outputs for X-, Y- and Z-axis in non-inverted and inverted form (range: -5 V to +5 V)
- CV offset controller per axis
- 4 Quadrant CV outputs (Q1-Q4) with adjustable overlap (range: 0 V to +10 V)
- Gate output
- Current requirement: 50 mA (+12 V) / 20 mA (-12 V)
- Width: 12 HP
- Depth: 50 mm
- Joystick height: 70 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2020
- Item number507178
- Sales Unit1 piece(s)
- Width 12 TE / HP
