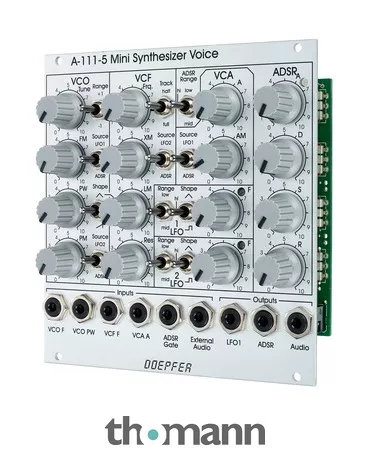

Doepfer A-111-5 Synthesizer Voice

Eurorack module

• Complete monophonic synthesizer voice
• VCO with sawtooth, pulse and triangle waveforms
• Adjustable pulse width
• PWM CV input with attenuator
• FM via LFO1 or ADSR envelope
• VCO frequency range: approx. 30 – 10000 Hz
• Low pass filter (-24 dB/oct.) with resonance
• Filter tracking switchable in two steps
• Linear and exponential filter FM
• VCA with AM via LFO1 or ADSR envelope
• ADSR envelope with 3 selectable time ranges
• 2 LFOs, each with triangle and square waveforms and three selectable frequency ranges
• Outputs for LFO1, ADSR and audio
• Current consumption: 80 mA (+12 V) / 50 mA (-12 V)
• Width: 24 TE
• Depth: 40 mm

3030-Day Money-Back Guarantee33-Year Thomann Warranty

• Available sinceOctober 2020
• Item number505480
• Sales Unit1 piece(s)
• Width 24 TE / HP
