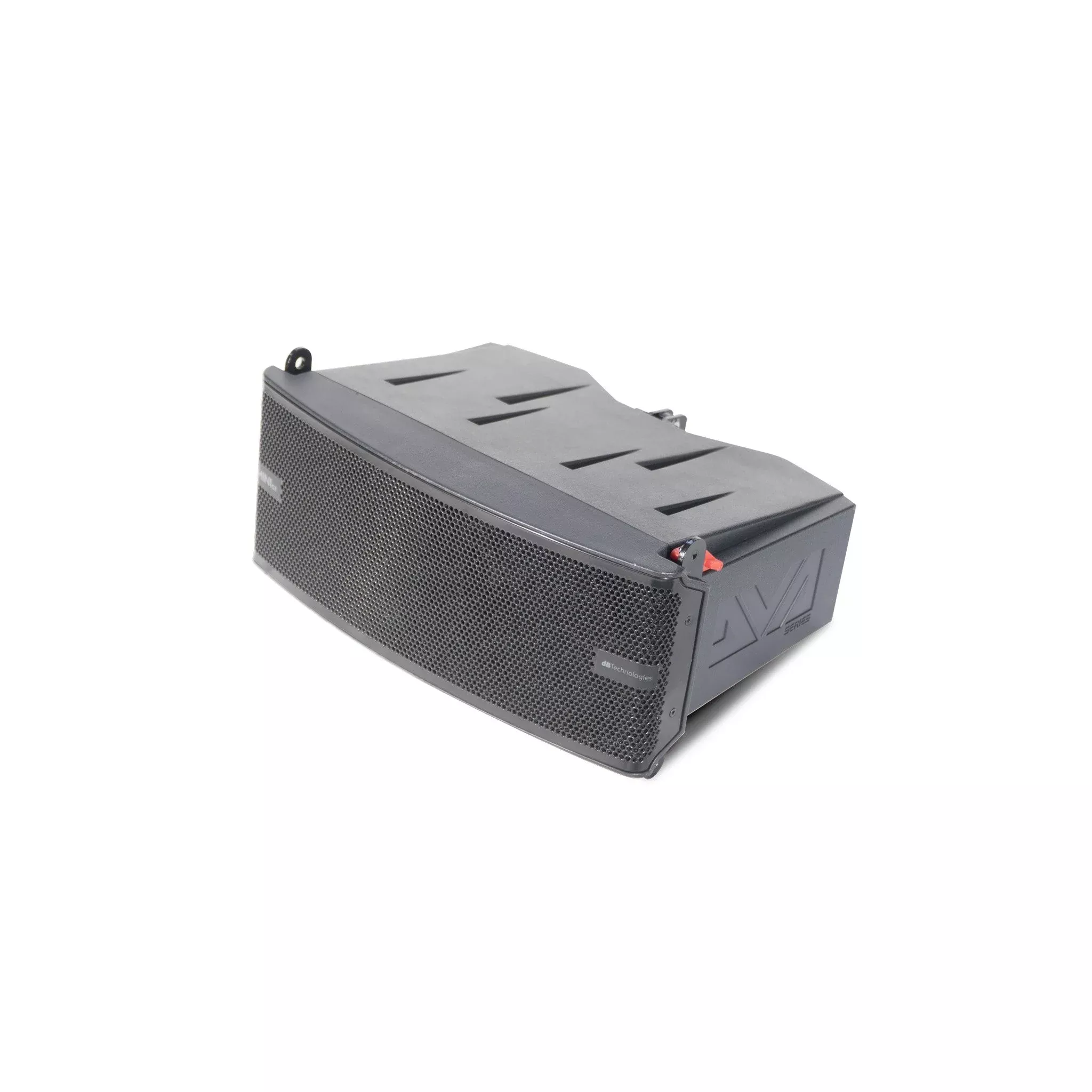

dB Technologies DVA MINI G2 2 x 6.5-Inch 2-Way Small Format Active Line Array Speaker
Enhancing ease of use as well as versatility thanks tocomplete network capability, DVA MINI G2 provides stunning power and soundpressure in an extraordinary lightweight and compact enclosure.
Each element is equipped with 2×6.5” neodymium woofers and2x1” high-frequency neodymium compression drivers and driven by a Class DDigipro G3 amp module providing 400 W RMS. The system can reach an impressive131-dB-per-unit sound pressure level.
The system’s advanced sound processing features linear-phaseFIR filters allowing an excellent linear response, resulting in a clear andintelligible audio performance from every listening position.
DVA MINI also features complete network capability viaAurora Net control software which allows EQ, delay and processing customizationand real time monitoring of the PA system in use. Nevertheless, the on-board 1rotary provides for 7 different presets to adapt the system to basicapplications.
An integrated quick-lock system links enclosures by simplyplacing one module below a companion module and sliding it towards one sideuntil it locks in place. The rigging hardware is on the rear of every cabinetallowing for incremental steps for line array positioning. Extra-light DRK M5fly-bar easily allows a fast rigging while DSF M2 accessory enables the systemto be stacked on a standard pole.
The cabinets are constructed of reinforced polypropylenepacking extra power in compact dimensions (460x190x345 mm) and feather-weight(only 8.4 kg per module)
Key Features
- Extra compact line array system
- Complete network capability via Aurora Net
- 131 dB SPL per module
- Neodymium components
- Linear phase FIR filters
- Fast and easy set up with integrated quick lock system
- Extra lightweight
Technical Specifications
Acoustical data
Usable Bandwidth
75 – 20.000 Hz
Frequency Response
80 – 19.000 Hz
Max SPL
131 dB per unit
HF
2x 0.75”
Type HF
Neodymium
Voice Coil HF
1”
LF
2x 6.5”
Type LF
Neodymium
Voice Coil LF
1.75”
Directivity (HxV)
15 x 100 Degrees
Amplifier
Amp Technology
Digipro G3
Amp Class
Class D
RMS Power Amp
400 W
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 kHz
Controls
1x Rotary Encoder (8 presets)
Limiter
Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF
1900 Hz
Slope LF-HF
24 dB/Octave
Advanced DSP functions
Linear Phase FIR Filters
Input
Signal Input
1x XLR fem, Bal.
Signal Output
1x XLR male, Bal.
Power Supply
400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket
1x PowerConTRUE1 In 1x PowerConTRUE1 Out
Mechanics
Housing
Polypropylen PP
Handles
2x back side
Fittings
Integrated hardware with fast lock mechanics
Width
460 mm (18.1 in)
Height
190 mm (7.5 in)
Depth
345 mm (13.6 in)
Weight
8.4 kg (18.5 lbs)
