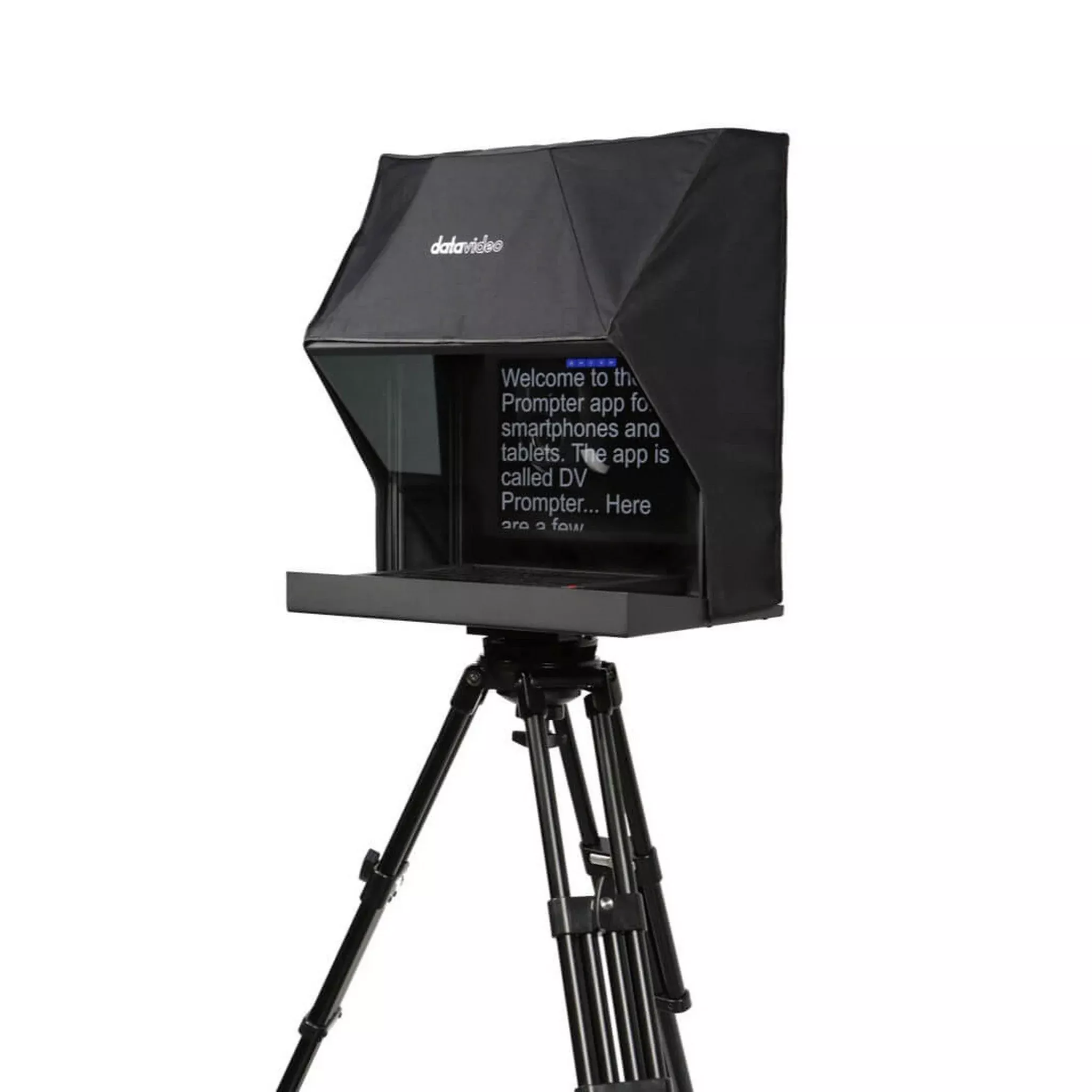

Datavideo TP-900 Presentation Prompter Kit for PTZ Cameras
Designed Specifically for PTZ Cameras
The TP-900 teleprompter is designed specifically for PTZcameras. Mounting the PTZ upside down removes the operational limitations of aPTZ camera within a prompter, the PTZ has greater movement in the shots it canachieve.
Universal fitment
The TP-900s unique camera mounting system allows bothhorizontal and vertical adjustment and supports most PTZ cameras in the market.
Unique and innovative design, suitable for any PTZ camera
Live video production with a PTZ camera can also use aprofessional teleprompter, and TP-900 PTZ Camera Teleprompter is your goodchoice. TP-900 can be set up on a camera tripod and placed anywhere you want todo the video production, making your live video production extremelyprofessional and easy.
Suitable with any PTZ camera sizes
The thoughtful and professional design allows telepromptercurtain to have the size adjustment. Any PTZ camera size is suitable for TP-900PTZ Camera Teleprompter.
Built in Teleprompter application
The TP-900 features a bright 15” 4:3 LCD screen with thepowerful dvPrompter Plus application built in, there is no need to run softwareon a laptop.
Easy control and monitoring via Ethernet
Control and monitor the prompter over a local network usingany device with a modern web browser, Load, reload and control scripts over alocal network.
Synchronize multiple units via HDMI or IP
Connect multiple TP-900s together using the HDMI input andoutput or use IP synchronization over Ethernet.
The HDMI input also allows the 15” LCD screen to be used asa HDMI monitor with third party software if required. The HDMI output can alsobe used to drive external displays.
Powerful rich text editor
You can remotely change the font size, type, color andjustification on a per script basis and even use multiple different fontswithin a single script. The editor also has support for embedding images andcreating playlists from multiple scripts.
P2P Interview Configuration
When using two TP-900 together in a P2P (Peer to Peer)interview configuration, the interviewer and the interviewee are able to lookdirectly into the camera lens while still seeing and looking directly at animage of each other.
This equates to a natural one-on-one interview style whichis also (because of the direct eye contact) much more involving for theaudience.When the interviewer asks aquestion, he or she is looking right into the eyes of the viewer.
When the interviewee answers the question, he or she is alsolooking directly into the eyes of the audience and in essence giving his or heranswers to them.
Video Conferencing
Look natural on camera, the TP-900 allows you to see yourguests while looking directly into the center of the camera lens. The TP-900shigh brightness 15” screen features mirroring in hardware, simply connect yourVC system via HDMI and you are ready to go.
Key Features
- Adjustable PTZ lift, supports all PTZ cameras on the market
- dvPrompter Plus software built in
- HDMI input and HDMI output can be used to connect multipleTP-900s together, synchronization over Ethernet is also possible.
- The HDMI output can The HDMI output can also be used todrive external displays
- Fully controllable via Ethernet
- An optional wired remote control and foot pedal is available
- Can also be controlled using standard wireless presentationremotes
Technical Specifications
Device Used
15” monitor with integrated dvPrompter Plus software
Camera-Mount Interface
Adjustable Lift
Multi-language Support
English
Dutch
Spanish
Portuguese
Russian
Chinese (Traditional)
Chinese (Simplified)
Hood Dimension / Prompter Size
Width
535mm
Height
590mm
Depth
350mm
LCD Native Resolution
1024×768
LCD Brightness
350 NIT
Remote Control
* Monitoring and control via LAN
*Optional WR-500 wired hardware remote or FS-30 Foot Pedal
*Supports generic presentation remote controls with USBreceivers
Weight
10.3Kg
Operating Temp. Range
0~40 Degrees C
Power
12V DC (Mains adapter supplied)
What’s in the Box
1 x 15” LCD Control Unit
1 x 12V universal Mains PSU
1 x USB Mouse
1 x 5m Ethernet Cable
1 x 3.5mm input adapter for WR-500 remote control
1 x TP-900 metal base tray with tripod plate
1 x 150 x 150 PTZ Scissor Lift
1 x Cloth Hood
1 x M4 CRV hex tool
1 x 9mm long ¼ thumb screw with red dot
1 x 9mm long ¼ thumb screw with washers
8 x M6*40mm screws
10 x M6*14mm screws
1 x 16mm long screw
1 x 3/8 to ¼ adapter
4 x 565mm Vertical extrusions
2 x 475mm horizontal extrusions with 90 degree joining blocks
2 x 325mm glass support extrusions with single end caps
2 x 250mm PTZ lift extrusions with both end caps
1 x 70/30 mirror glass
1 x Glass support bar
2 x Spare black extrusion end caps
2 x Spare M6*14mm screws
2 x 12V regulated DTap cable
1 x Small CRV hex tool to remove the tripod plate from itemF
1 x Medium CRV hex tool to remove 90 degree joining blocksfrom item Q
