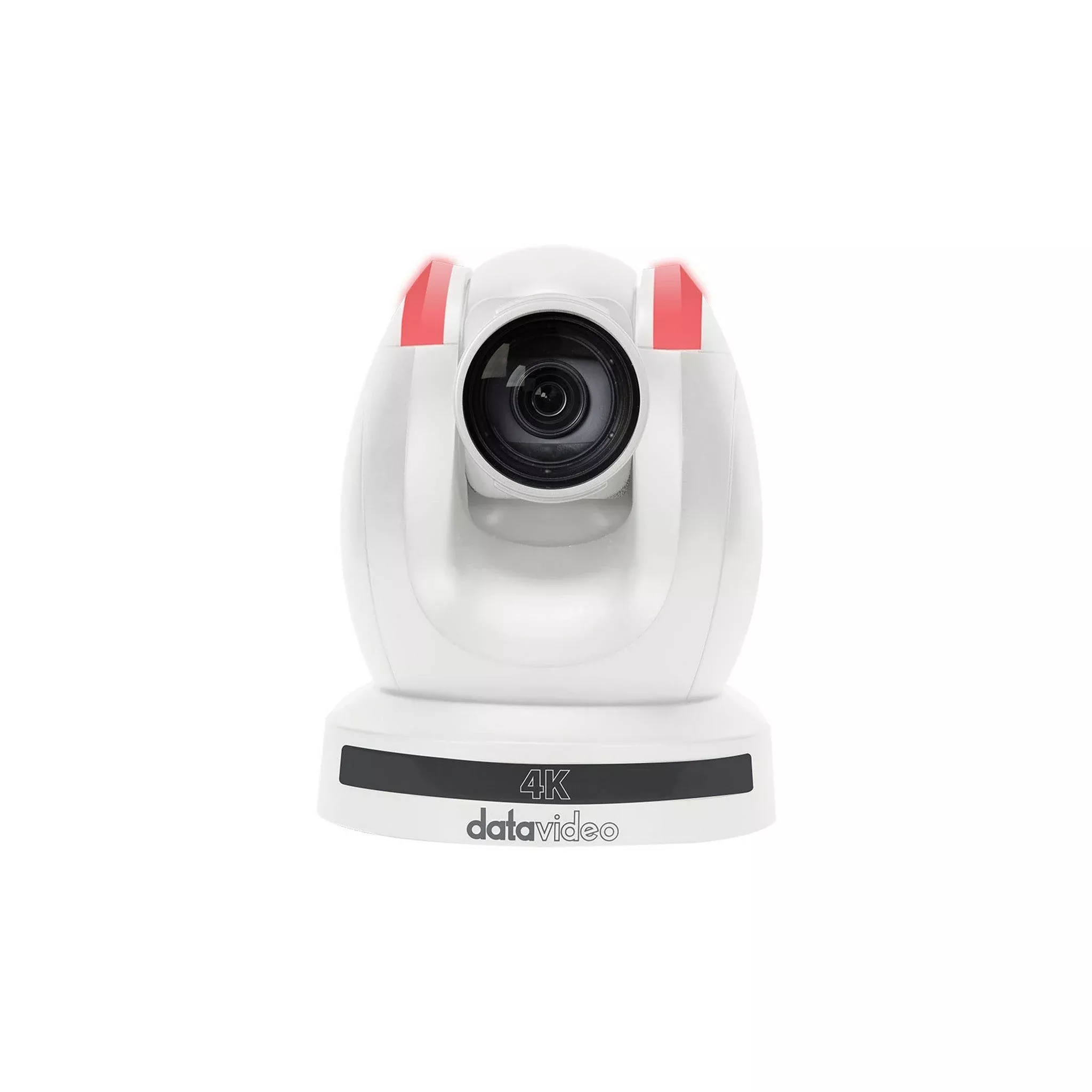

The Datavideo PTC-280W 12x 4K PTZ Camera, White is aprofessional-grade PTZ camera designed for live production, broadcasting, videoconferencing, and more. This versatile camera boasts exceptional video quality,flexible control options, and easy installation, making it a valuable asset fora variety of applications.
The PTC-280 captures stunning 4K resolution video at up to 60frames per second, ensuring crisp and detailed visuals. The 12x optical zoomlens allows you to get close to the action, while the simultaneous streamingcapabilities enable you to stream to multiple platforms simultaneously usingHDMI, SDI, and IP outputs. The camera also supports RTSP, RTMPS, and NDIprotocols for further flexibility.
With dual video encoding, you can stream high-quality video totwo different platforms at once. The PTC-280 supports H.264/H.265 encoding forresolutions up to 4K and a secondary stream at 720p. Installation is simplifiedwith Power over Ethernet (PoE), eliminating the need for separate poweroutlets.
The PTC-280 features a wide 71-degree field of view, ideal forcapturing expansive scenes. Controlling the camera is a breeze with variousoptions available. You can use the traditional RS-422 serial port, IP, DVIP(Datavideo proprietary protocol), or Sony VISCA over IP. Datavideo also offersa free PTZ View Assist app for iOS and Android devices. This app allows you tomonitor live video feeds, control up to 4 cameras simultaneously, adjustpresets, and manage white balance, focus, and iris settings.
Advanced noise reduction technology ensures clear images evenin low-light environments. Integrated tally lights provide visual feedback forpreview and program status during broadcast applications. The PTC-280 isavailable in a black or white finish to match your installation environment.
Technical Specifications
Model Number
PTC-280
Video format/Resolution
HDMI:
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
(2160p 60/59.94/50 YUV 4:2:0 only)
Image Sensor
1/2.5″ CMOS
Effective Pixels (approx.)
8.51Mega Pixels
S/N Ratio
≥55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30s ~ 1/10000s
Zoom Ratio
12x Optical Zoom, 16x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
2D/3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control
Yes
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual
Panning / Tilting Range
Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed
Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset
255
Focal Length
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide)
71°
Image Compensation
Back light compensation
Video Output
HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input
3.5mm x1
Tally LED
Yes
Lens Filter
N/A
Control Protocol
Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP
Remote Control Interface
IR
Web GUI
RS-422
DVIP
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
—-
Streaming Protocols
RTSP, RTMP(S), Onvif, Multicast, SRT
First Stream Supported Resolution
3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution
1280×720
1024×576
720×576 (50Hz)
720×480 (60Hz)
720×408
640×360
480×270
320×240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
IEEE 802.3at
F/W Update
Via Web UI or USB 2.0
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
173 (W) x 219 (H) x 189.08 (D)
Weight
2.8 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 12W
What’s in the Box
1 x PTC-280 product
1 x IR remote controller
1 x Ceiling mount bracket -A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Safety cable
