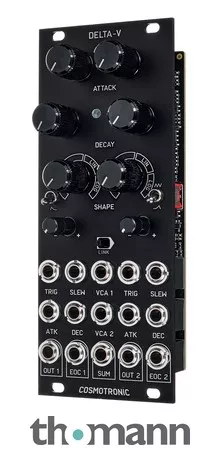

Eurorack Module
- Two-channel function generator with VCA
- Can be used as AD envelope, LFO, slew limiter, VCA and more
- Attack and decay time adjustable
- Adjustable characteristic curve from exponential to linear to logarithmic
- Switchable trigger or loop mode
- Bipolar attenuator for the function output
- Trigger and slew signal inputs
- CV inputs for attack and decay
- 2 VCA signal inputs
- EOC output per channel and sum output
- Current consumption: 70 mA (+12 V) / 70 mA (-12 V)
- Width: 10 HP
- Depth: 20 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2020
- Item number499705
- Sales Unit1 piece(s)
- Width 10 TE / HP
- exponentialYes
- linearYes
