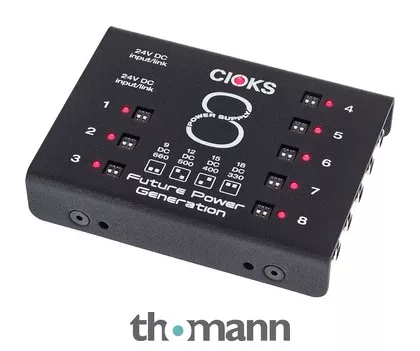

Multi-Output Expander Power Supply for Effects Pedals
- 1″ Profile (25.4 mm) like Cioks DC7
- Extremely low interference due to multi-stage filtering
- 8 Isolated DC outputs (6W each)
- 4 Selectable voltages at each output (output 1-8: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA)
- Global overload status LED
- Up to 12 pedals can be connected with the supplied flex cables
- Weight: 340 g
- Dimensions: 120 x 88 x 25.4 mm
Includes accessories:
- Hardware for pedal train and template audio boards
- 1x Cioks 1015 Flex 1 Cable
- 3x Cioks 1030 Flex Cable
- 2x Cioks 1050 Flex Cable Type 1
- 1x Cioks 2050 Flex 2 Cable
- 1x Cioks 4050 Flex 4 Cable
- 1x Cioks 5050 Flex 5 Cable
- 1x Cioks 1035 Split Flex Type 1
- 1x Cioks 1533 3-way daisy chain Flex 1
- 1x 24V EIAJ-05 cable
Note: Total output power max. 48 W if a suitable and sufficient input power source is used. The full output power can be achieved if a 24V source with min. 60 W output power is used (e.g. Cioks7)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2020
- Item number485986
- Sales Unit1 piece(s)
- DC/AC DC
- Output current in mA 660 mA
- 9 V Yes
- 12 V Yes
- 18 V Yes
- Secondary voltage No
- Multi-output power supply Yes
