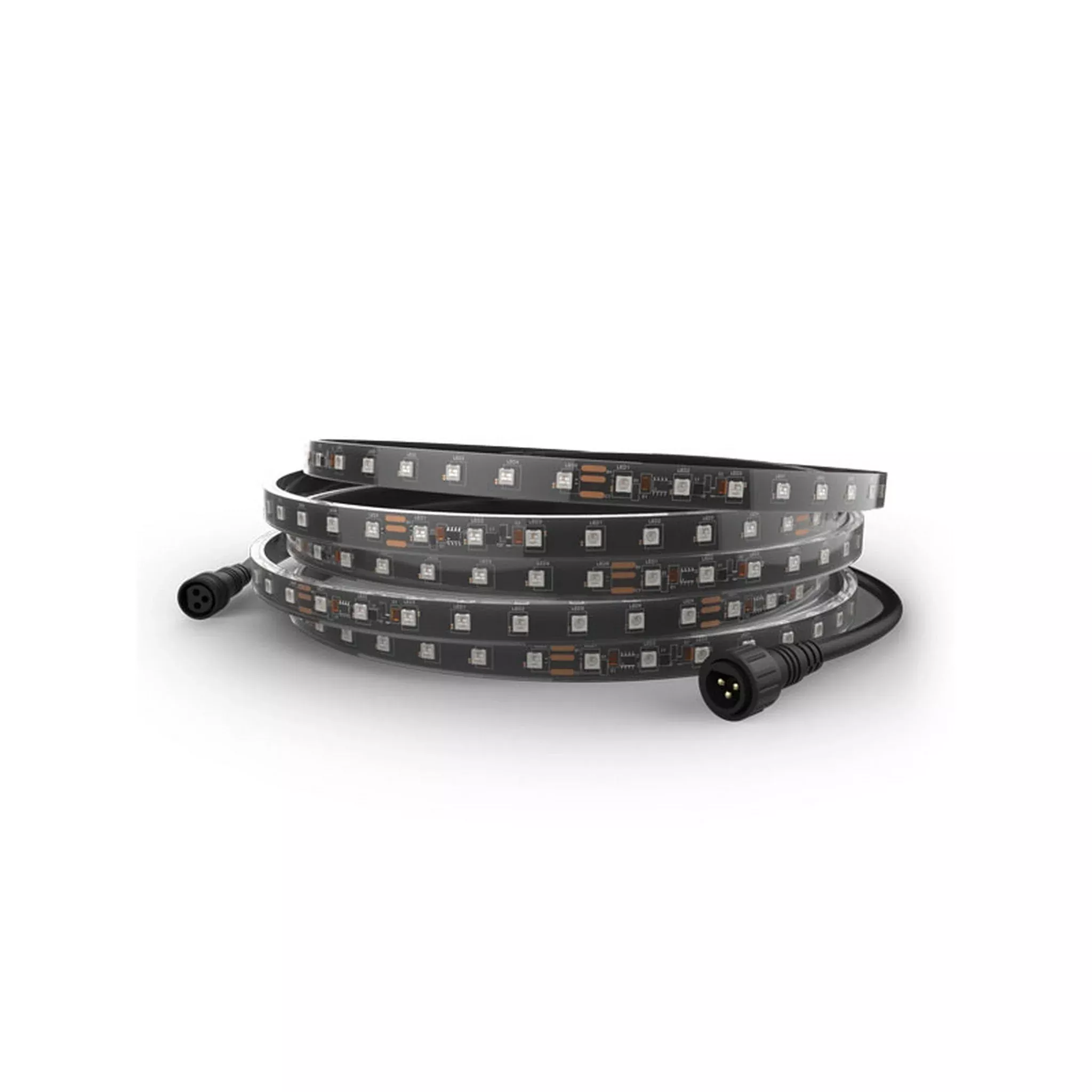

Chauvet Professional Epix Flex 20 LED Pixel Strip
Chauvet Professional Epix Flex 20 is a flexible LED pixel strip designed for outdoor rated installation and touring applications. It enables pixel mapped lighting effects and color changing graphics for architectural, stage, and entertainment environments. This makes it ideal for installations where adaptable form factor and precise pixel control are required.
The strip uses individually controllable RGB LEDs and supports multiple control protocols for integration into professional lighting systems. It operates on low voltage power and is designed to be cut and extended without compromising its IP rating. Control options support reduced programming time and compatibility with media servers.
This LED strip is commonly used in nightclubs, architectural installations, and live production environments. It supports permanent mounting and touring use where durability and pixel accuracy are critical. The design prioritizes flexibility, reliability, and system scalability.
Key Features
- Flexible LED Pixel Strip: Outdoor rated strip designed for complex layouts and installations.
- Individually Controllable RGB LEDs: Supports pixel mapping and color changing graphics.
- Multiple Control Protocols: Compatible with DMX, Art-Net, and sACN systems.
- Cuttable and Extendable Design: Can be cut to length without compromising IP rating.
- Installation Ready: Includes mounting brackets and termination components for permanent installs.
Technical Specifications
Product Type
LED pixel strip
Light Source
240 RGB SMD LEDs
LED Life Expectancy
50,000 hours
Pixel Count
240 x 1
Pixel Pitch
20 mm
Viewing Angle
160 degrees
Control Protocols
DMX, Art-Net, sACN
DMX Channels
17, 34, or pixel
IP Rating
IP67
Operating Temperature
-20 C to 45 C
Housing Material
High temperature silicone with UV protection
Dimensions
Length: 196.85″
Width: 0.55″
Height: 0.2″
Weight
1.2 lbs
What’s in the Box
(1) Epix Flex 20 LED strip
(10) Mounting bracket sets
(1) Termination kit with end cap and silicone glue
