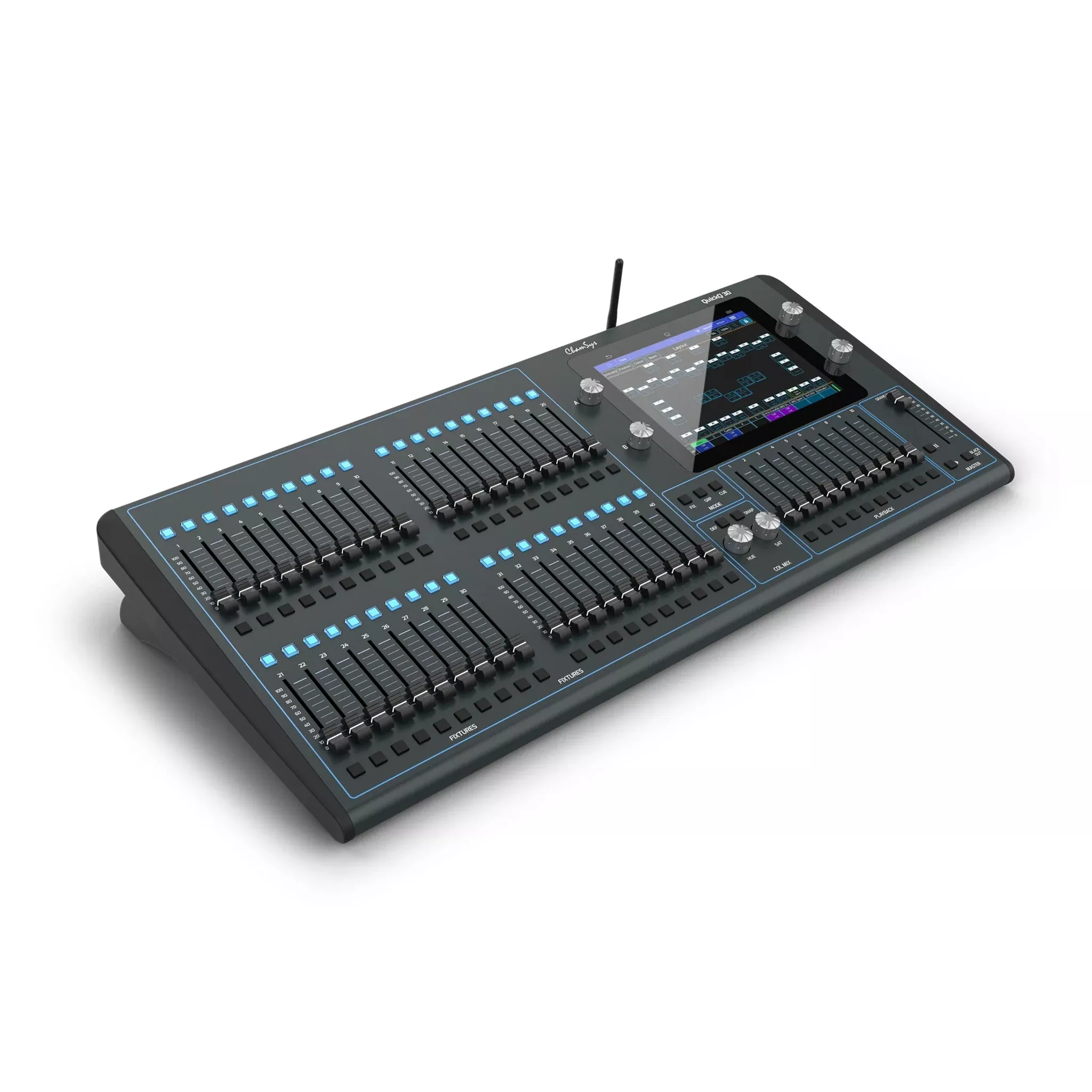

Chamsys QuickQ 30 4-Universe DMX Lighting Control Console
The QuickQ 30 is part of ChamSys QuickQ range of userfriendly and affordable lighting control consoles. The QuickQ 30 is the perfectchoice console for control of dimmer, LED color mixing and moving lightfixtures. The console features a large 9.7-inch touch screen utilizing a smartphone like interface for setup, programming and playback of your show.
The console can automatically detect, patch and configureRDM compliant fixtures and also features in-built WIFI capabilities enablingremote connections to the free QuickQ app available on iOS, Android and Windowstablets and phones. Easily connect the app by simply scanning the QR code onthe console display.
The console has easy-to-understand buttons and faders,simple color selection and intensity control tools, a large touch screen withzooming and scrolling at your fingertips, as well as a simple cue/chase systemfor playback. Specifically aimed at the novice user, the QuickQ interfaceeasily leads you through setup, programming and operation of the console.
The console has a free to download offline programmingsoftware available for Mac and Windows that includes the ChamSys MagicVis visualizer.You can program your show on your computer, save it onto a flash drive and loadit onto the QuickQ console.
QuickQ uses ChamSys extensive and continuously updatedpersonality library with over 30,000 personalities.
QuickQ shows are compatible can be loaded onto any MagicQsystem allowing future progression onto ChamSys more advanced MagicQ range ofconsoles.
Key Features
- Modelled on smartphone icon interfaces for ease of use
- Intuitive interface allowing simple control of all fixtureattributes
- The interface supports gestures such pinch zoom andscrolling
- Easily connect to the remote app on iOS & Androiddevices via inbuilt Wi-Fi
- 40 multi-function fixture faders with 3 different modes -Fixture, Group and Cue
- 10 multi-cue Playback faders, which are leg ended on screen
- The console features a dedicated Grand Master fader foroverall level control
- A dedicated “color control area” with Hue and Saturationencoders
- Select from inbuilt palettes and gel libraries using thetouch screen
- Built in color picker for use with LED fixtures
- QuickQ supports output of DMX over network viaArtNet/sACN/Pathport
- Remote triggering of Playbacks and Execute items via OSC
Technical Specifications
Hardware
Universes supported
4
Direct DMX Outputs 5-Pin XLR
3
Master Playback Faders
10
Multi-Function Fixture Faders
40
Bump Buttons
Yes
Attribute Encoders
4
Dedicated Hue/Saturation Encoders
Yes
Inbuilt 9.7” Multi-touch Display
Yes
External Monitor
1920 x 1080 HDMI
Inbuilt Wi-Fi
Yes
Network Port
1
USB Ports
2
Audio Input
1
Audio Output
1*
MIDI Ports in/out
Yes*
Console Weights and Dimensions
Width
760mm (29.9 inches)
Depth
350mm (13.8 inches)
Height
106mm (4.2 inches)
Weight
6.1kg (13.44 lb)
Boxed Weights and Dimensions
Width
900mm (35.4 inches)
Depth
420mm (16.5 inches)
Height
230mm (9 inches)
Weight
10kg (22.04 lb)
Software
Max Number of DMX Channels
2048
Max Number of Fixtures Supported
2048
Max Number of Cue Stacks
10
Max Number of Chases
10
Midi & Midi Timecode Supported
Yes
OSC Supported
Yes
RDM Autopatch for fast show patching
Fixture library of over 30,000 fixture files
Built in FX generator
Color picker and Gel inbuilt Gel library
Offline designer software available for Windows and Mac
Included Accessories
USB Desk light
1
Dust cover
1
Tablet stand
1
Wi-Fi Antenna
1
12V power supply
1
IEC power cable
1
Flight Cased Weights and Dimensions
Width
860mm (33.8 inches)
Depth
490mm (19.3 inches)
Height
220mm (8.7 inches)
Weight (console in flightcase)
20kg (44.09 lb)
