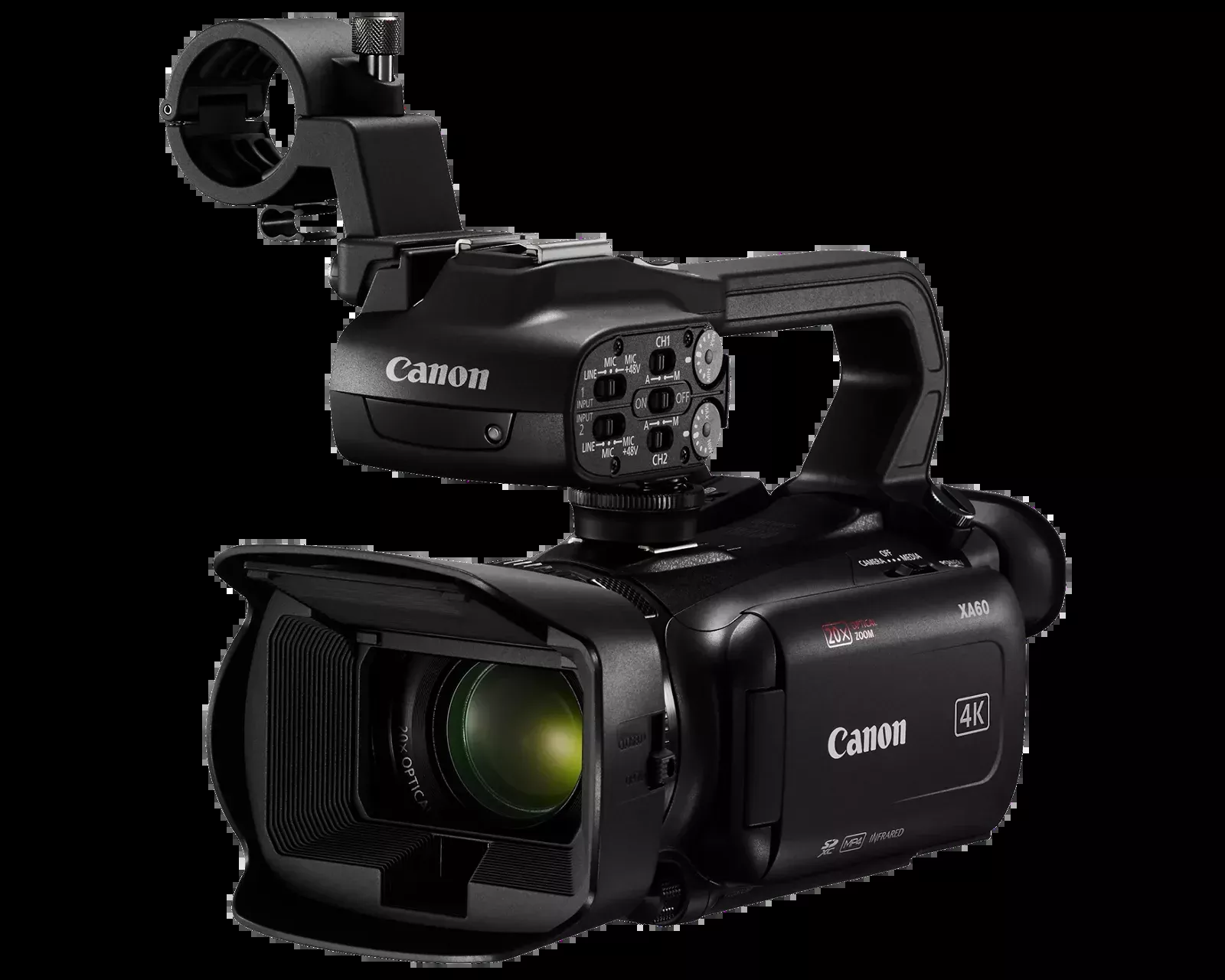

Canon XA60 Camcorder
Canon’s XA60 is a compact professional camcorder that records 4K UHD up to 30p and delivers oversampled Full HD from its 1/2.3-inch CMOS sensor and DIGIC DV 6 processor. With a detachable XLR handle unit and an integrated 20x optical zoom lens, it serves documentary, event, and corporate shooters who want broadcast-style audio handling and handheld mobility in a small 740g body.
The 29.3-601mm equivalent lens pairs with five-axis Dynamic IS to steady walking shots, and Hybrid AF with Face Detection lets you set focus by touch on the 3.5-inch LCD; a tiltable 0.36-inch OLED EVF is also on board. Recording options include XF-AVC 4K UHD at 160Mbps and MP4, written to dual SD slots with relay and simultaneous modes plus 4-channel linear PCM. USB-C with UVC support enables HD livestreaming to a PC or Mac.
Key Features
- 4K UHD 30p recording with oversampled Full HD from a 1/2.3-inch CMOS sensor
- 20x optical zoom lens, approx. 29.3-601mm equivalent, with five-axis Dynamic IS
- Detachable handle with dual XLR inputs and 4-channel linear PCM audio
- XF-AVC and MP4 formats; dual SD slots with relay and double recording
- USB-C output with UVC support for HD livestreaming to a computer
- 3.5-inch touchscreen LCD plus tiltable 0.36-inch OLED viewfinder
- Hybrid AF with Face Detection AF and Face Tracking
Specifications
- 1/2.3-inch 4K UHD CMOS sensor
- Zooming ratio, focal length (35 mm camera equivalent): 20x optical zoom, approx. 29.3 – 601mm 4K UHD (Dynamic IS off/Standard IS on) / approx. 30.5 – 627mm Full HD (Dynamic IS off/Standard IS on)
- Aperture: 8 blades
- Image Stabilizer: Optical + electronic correction
- YES
- 3.5-inch (approx. 2.76 million dots), LCD, Capacitive touch panel
- 0.36-inch (approx. 1.77 million dots), OLED, tiltable
- Standard
- MXF: YES (XF-AVC)
- AVCHD: NO
- MP4: YES
- LPCM 4ch audio: YES (not available during 720 recording)
- Simultaneous Recording: Double recording
- OSD Recording: YES
- Slow and Fast (S&F) Motion Recording: YES
- Cinema-look filters: NO
- Built-in memory: NO
- Memory card: SD card (2 slots)
- SDI terminal: NO
- GENLOCK, TC: NO
- XLR terminal (INPUT 1, INPUT 2): YES
- HDMI, separate headphones, USB (USB Type-C), DC IN (USB Type-C), remote and MIC terminal (supports plug-in power)
- Handle unit: Cold shoe
- YES (XLR terminal, built-in infrared light, mic holder, cold shoe, zoom lever, trigger, tally lamp)
- NO
- NO (Accessories supported)
- YES
- Approx. 4.3 x 3.3 x 7.2 in. / 109 x 84 x 182mm
- Body only: Approx. 1.63 lbs. / 740 g
- Sensor
- Lens
- Infrared camera supported
- Monitor
- EVF
- Looks
- Movie recording
- Recording Media
- Professional use terminals
- Other terminals
- Accessory shoe
- Detachable handle
- Wi-Fi
- GPS
- Lens hood with barrier
- Dimensions
- Weight
What’s Included
- XA60 Body
- Lens Cap
- Lens Hood with Lens Barrier
- Microphone Holder Unit
- Handle Unit
- USB Power Adapter PD-E1
- AC Cable
- Battery Pack BP-820
- Limited 1-Year Warranty
